MSI MAG B860M MORTAR WIFI Motherboard | Intel LGA 1851 · B860 Chipset | Micro-ATX | 4x DDR5 up to 256GB · 9200+ MT/s (OC) | PCIe 5.0 x16 · 3x M.2 (Gen5) | Wi-Fi 7 · Bluetooth 5.4 · Killer 5G LAN | Thunderbolt 4 · HDMI 2.1 · DisplayPort
محتار قبل الشراء؟ تواصل معنا
فريق المبيعات جاهز يساعدك تتأكد من التوافق ويرد على كل استفساراتك خلال دقائق
About This Product

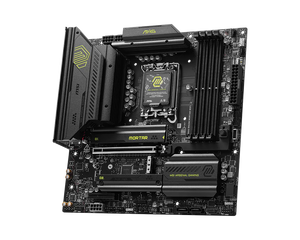

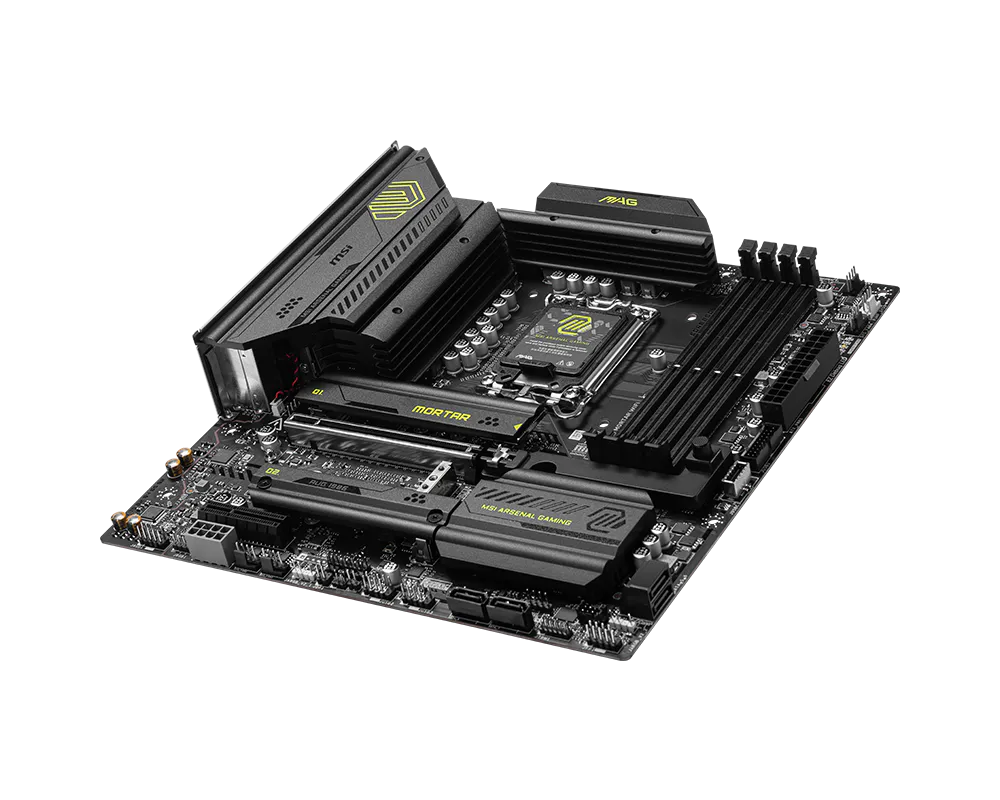

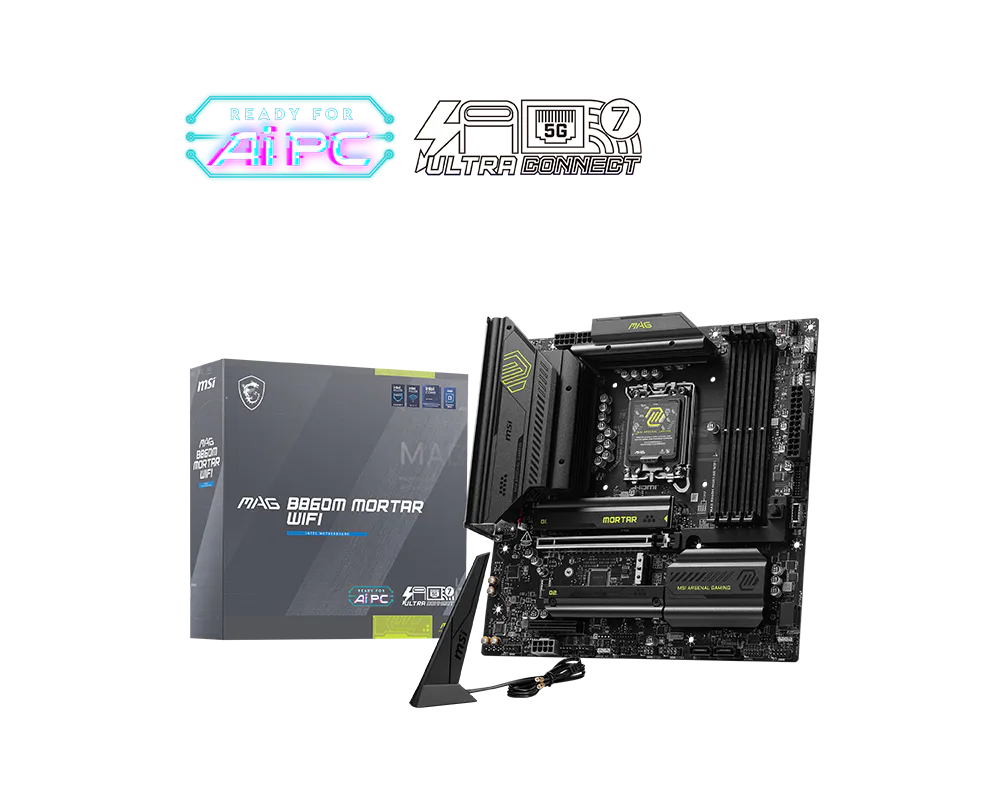

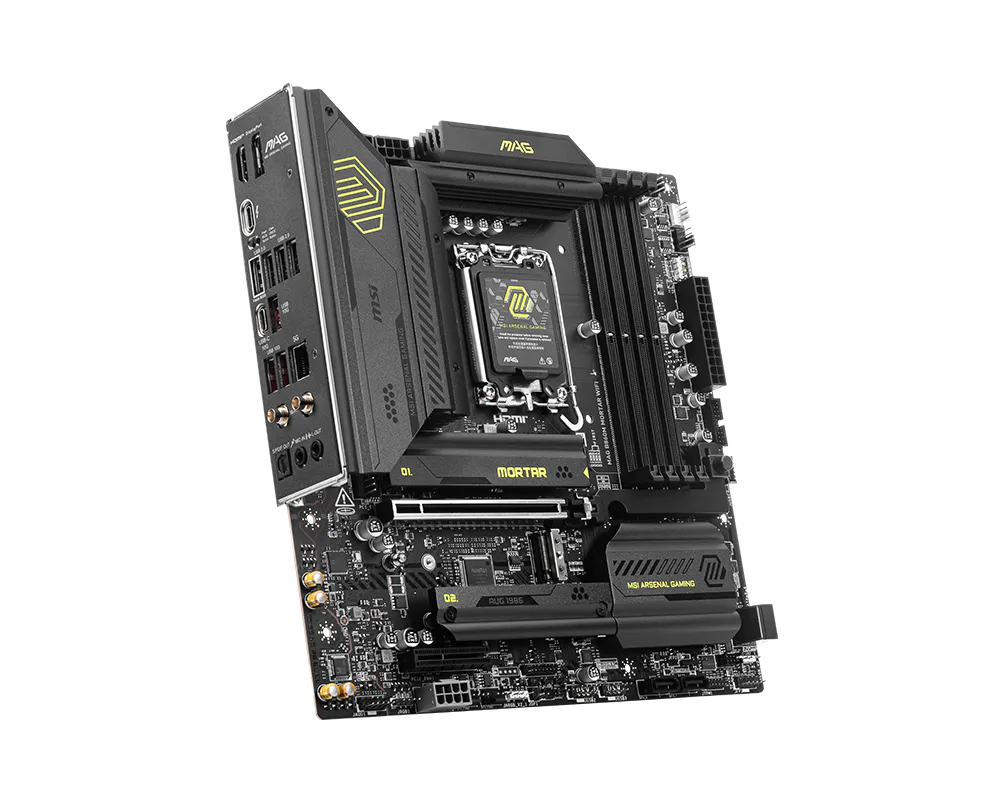

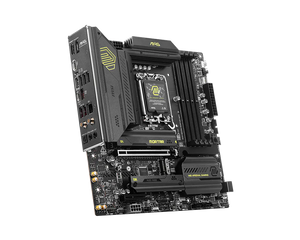

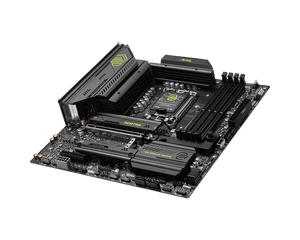

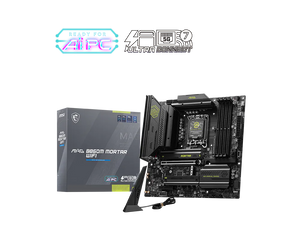

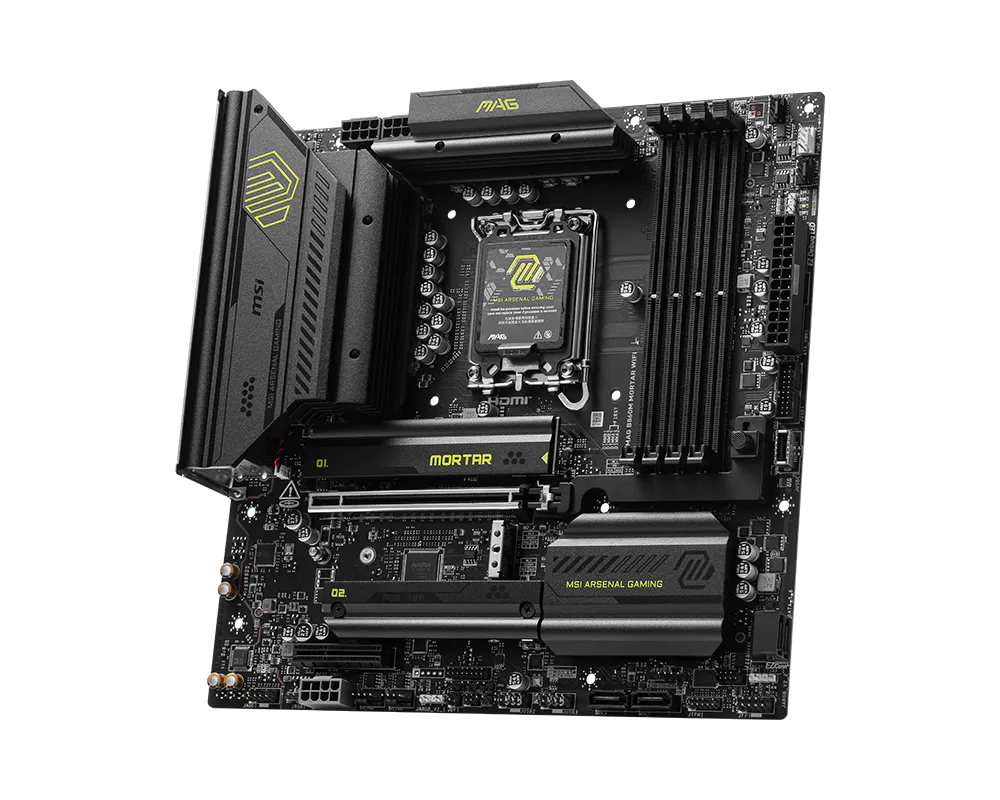

MSI MAG B860M MORTAR WIFI Motherboard
The MAG B860M MORTAR WIFI is MSI's enthusiast Micro-ATX take on Intel's LGA 1851 platform: a 12+1+1+1 Duet Rail power system on 60A DrMOS, DDR5 tuned to 9200+ MT/s, a PCIe 5.0 graphics slot, three M.2 slots and Thunderbolt 4 with Killer Wi-Fi 7 and 5G LAN. Supplied brand new and sealed in its original manufacturer packaging.
📋 Specifications
- Brand: MSI
- Model: MAG B860M MORTAR WIFI
- CPU Socket: Intel LGA 1851
- Chipset: Intel B860
- Form Factor: Micro-ATX (243.84 mm x 243.84 mm)
- Memory: 4x DDR5 UDIMM slots, dual channel, up to 256GB
- Memory Speed: 4800-6400 MT/s (JEDEC), 6400-9200+ MT/s (OC)
- Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4
- M.2: 3x M.2 — 1x Gen5 x4 (128 Gbps, CPU), 2x Gen4 x4 (64 Gbps, chipset)
- SATA: 4x SATA 6Gb/s ports
- Power Design: 12+1+1+1 Duet Rail Power System, 60A DrMOS, dual 8-pin CPU power connectors

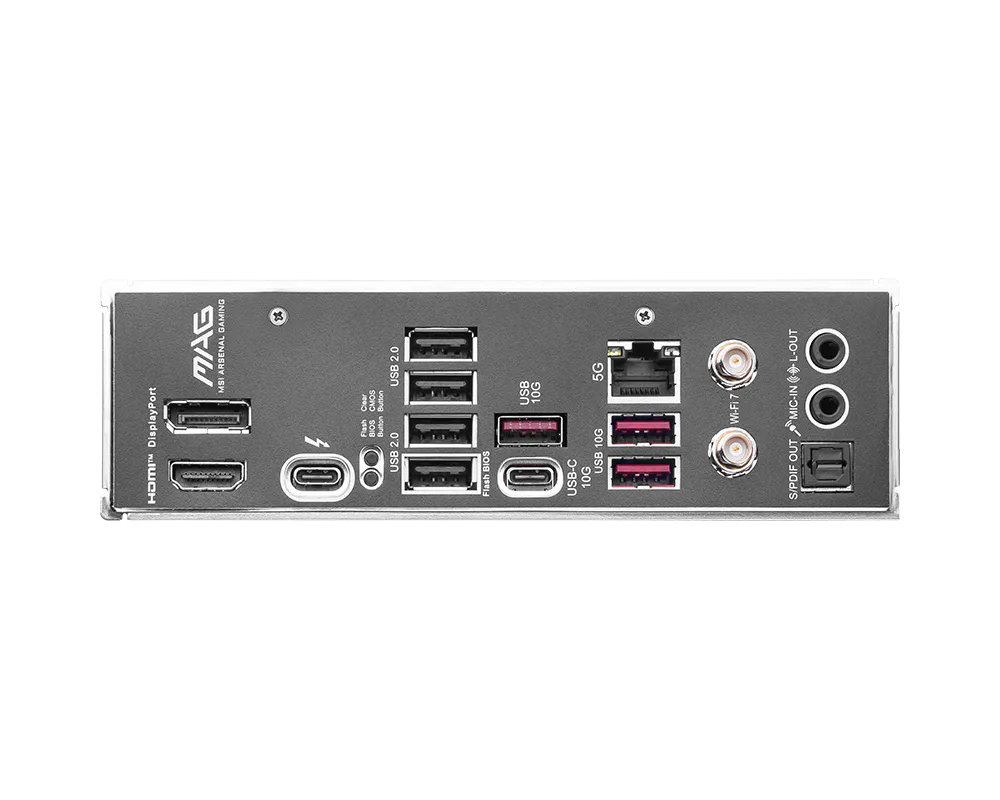

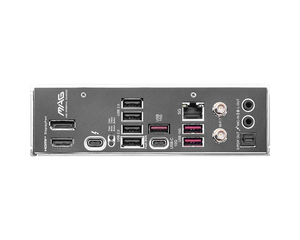

- Rear Video Output: 1x HDMI 2.1 with FRL (up to 8K 60Hz), 1x DisplayPort 1.4 HBR2 (up to 4K 60Hz), 1x Thunderbolt 4 Type-C with DisplayPort 2.1 UHBR20
- Thunderbolt: 1x Thunderbolt 4 Type-C, up to 40 Gbps
- USB (total): 1x USB Type-C up to 40Gbps, 5x USB 10Gbps (3 Type-A + 2 Type-C), 2x USB 5Gbps Type-A, 8x USB 2.0
- LAN: Intel Killer E5000B 5Gbps LAN
- Wireless: Intel Killer BE1750x Wi-Fi 7
- Bluetooth: Bluetooth 5.4
- Audio: Realtek ALC897 codec, 8-channel (7.1) High Definition Audio with Audio Boost
⚡ Key Features
- A 12+1+1+1 Duet Rail Power System on 60A DrMOS with two 8-pin CPU connectors gives Intel Core Ultra chips far more power headroom than a typical B-series board.
- DDR5 overclocking to 9200+ MT/s across four slots means memory bandwidth keeps pace with the fastest processors.
- The CPU-fed PCIe 5.0 x16 slot is ready for current and next-generation graphics cards.
- Three M.2 slots — one Gen5 x4 at 128 Gbps and two Gen4 x4 at 64 Gbps — let you build a fast, large NVMe array without adapters.
- HDMI 2.1 with FRL drives up to 8K at 60Hz from integrated graphics, useful for high-resolution productivity displays.
- Thunderbolt 4 Type-C carries 40 Gbps of data and DisplayPort 2.1 UHBR20 video down a single cable.
- Intel Killer E5000B 5G LAN and Killer BE1750x Wi-Fi 7 with Bluetooth 5.4 cover wired and wireless with low-latency gaming traffic prioritisation.
- Tool-less M.2 installation and MSI's EZ DIY design make drive swaps quick and screwdriver-free.
- Four SATA 6Gb/s ports and a deep USB port count, including five 10Gbps ports, keep everything connected.
- A 243.84 mm square Micro-ATX footprint packs this feature set into a compact case-friendly board.
🛡️ SQUADRIG Assurance
- Brand new and sealed in original manufacturer packaging
- Sourced from authorised local distributors
- Checked on arrival and securely packed for delivery
- Honest listings — specifications are taken from the manufacturer's own published data
🔑 Product Details
- Brand: MSI
- Model: MAG B860M MORTAR WIFI
- Condition: Brand new
- SKU: MOH-MSI-B860M-NEW-0886
