ASUS PRIME B760M-A D4-CSM Intel B760 Micro-ATX Motherboard
- LGA1700
- Core 14th/13th/12th Gen
- 4× DDR4
- 128GB
- 5333 MHz (OC)
- 2× M.2 PCIe 4.0 x4
- 4× SATA
- 2× HDMI
- Fast deliveryDelivered in 2-3 business days
- Cash on deliveryPay when you receive
- Easy returns14-day return policy
About This Product

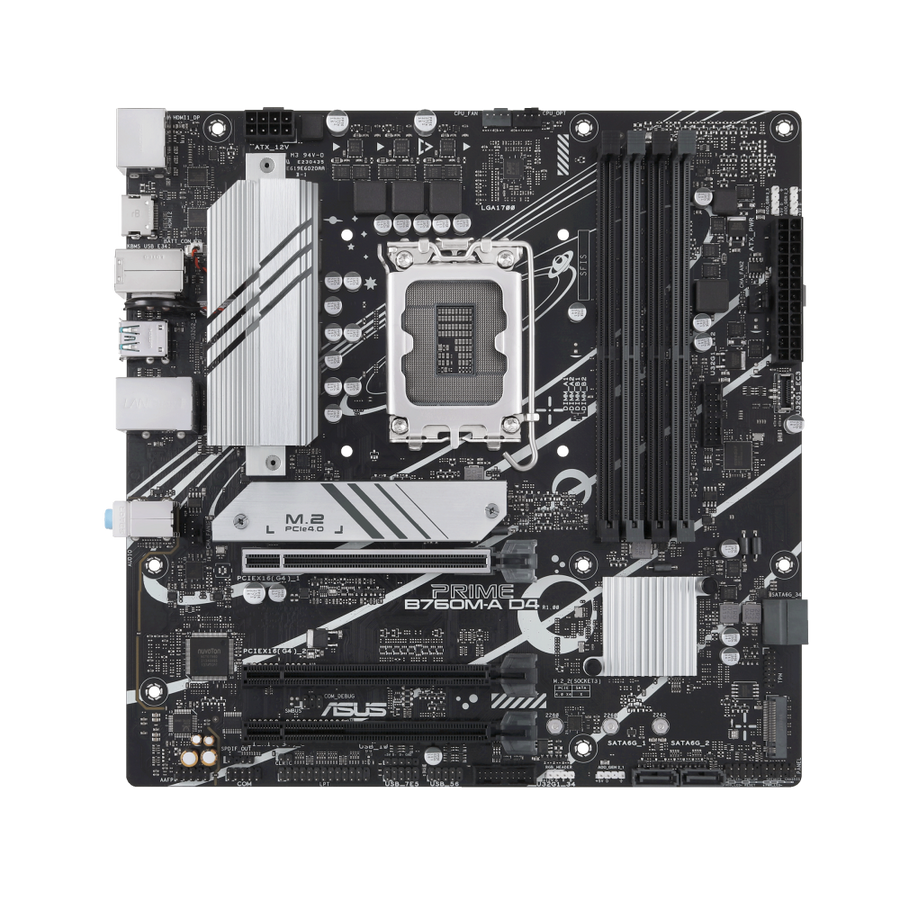

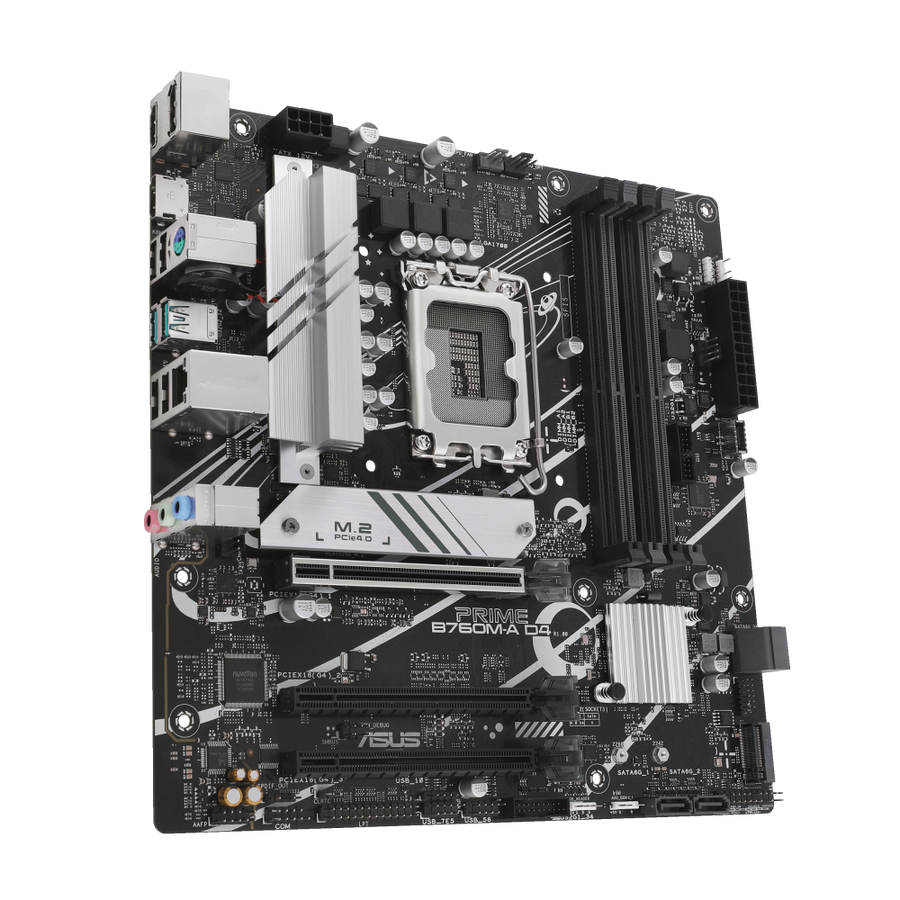

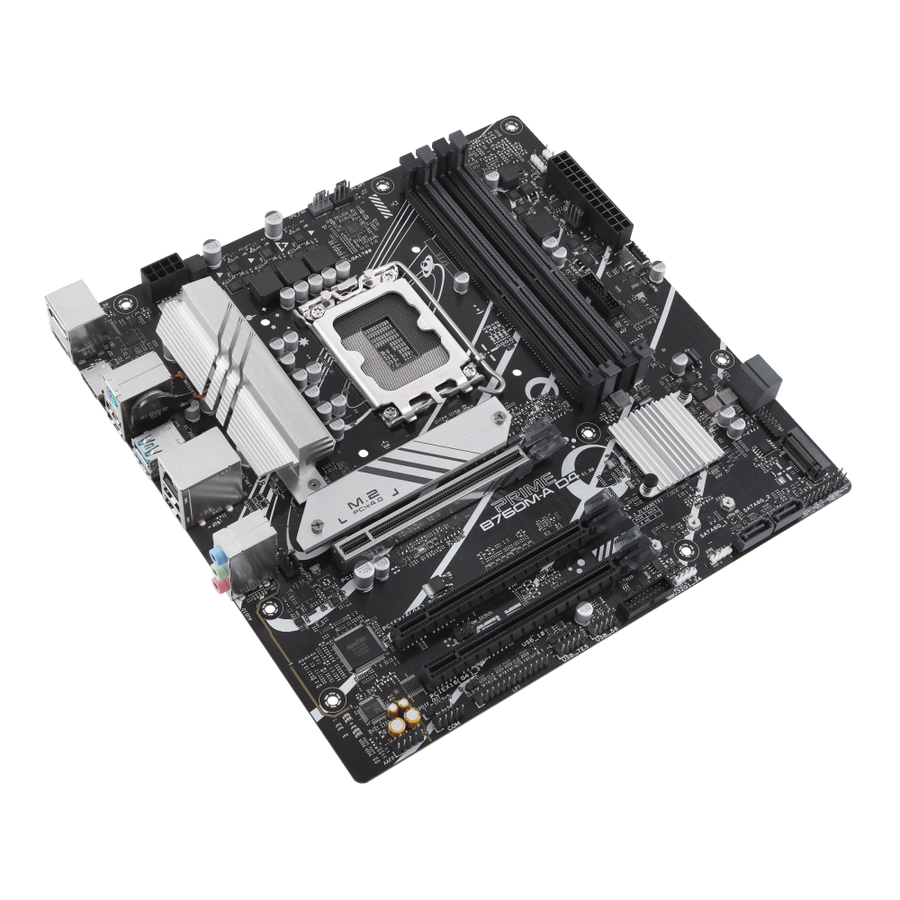

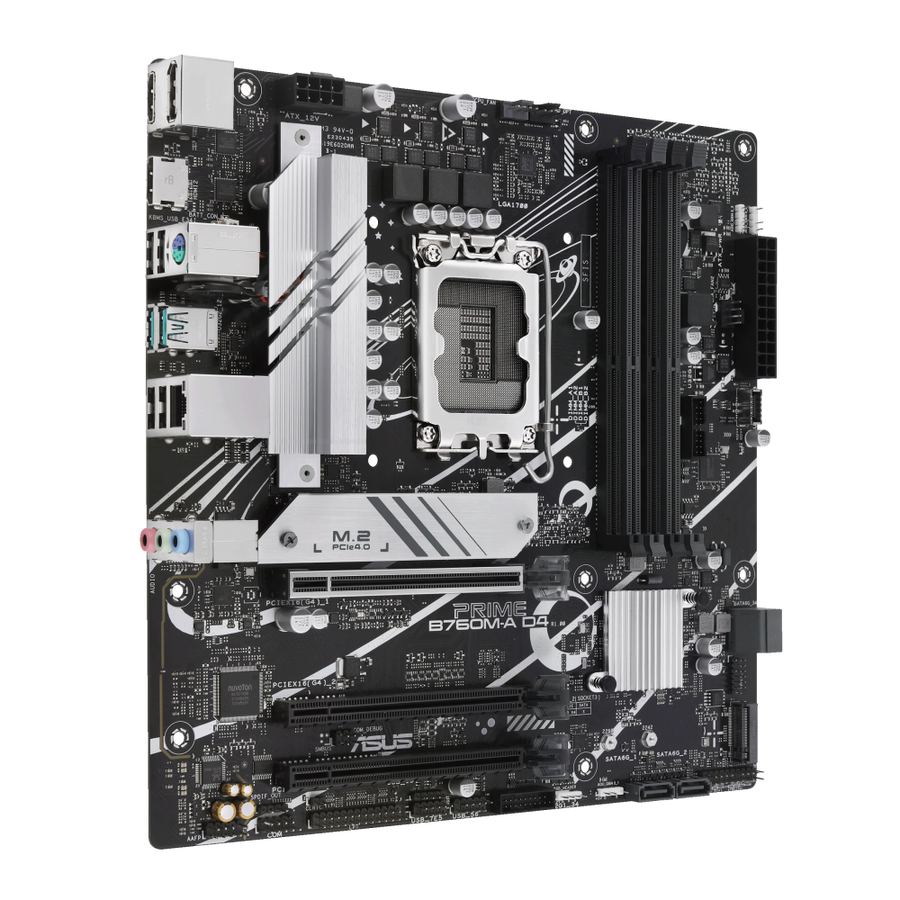

ASUS PRIME B760M-A D4-CSM Intel B760 Micro-ATX Motherboard
A DDR4 B760 board aimed at reliable everyday and office builds, combining LGA1700 CPU support with dual PCIe 4.0 M.2 storage, 2.5Gb networking and triple video outputs. Supplied brand new and sealed in its original manufacturer packaging.
📋 Specifications
- Socket: Intel Socket LGA1700
- CPU support: Intel Core 14th and 13th Gen, Intel Core 12th Gen, Pentium Gold and Celeron processors
- Chipset: Intel B760
- Memory: 4 x DIMM, DDR4, up to 128GB, dual channel, up to 5333 MHz (OC), Intel XMP and ASUS OptiMem II
- Expansion slots: 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x16 (x1 mode)
- M.2 storage: 2 x M.2 (2242/2260/2280), both PCIe 4.0 x4
- SATA: 4 x SATA 6Gb/s
- LAN: 1 x Realtek 2.5Gb Ethernet
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC, 24-bit/192 kHz

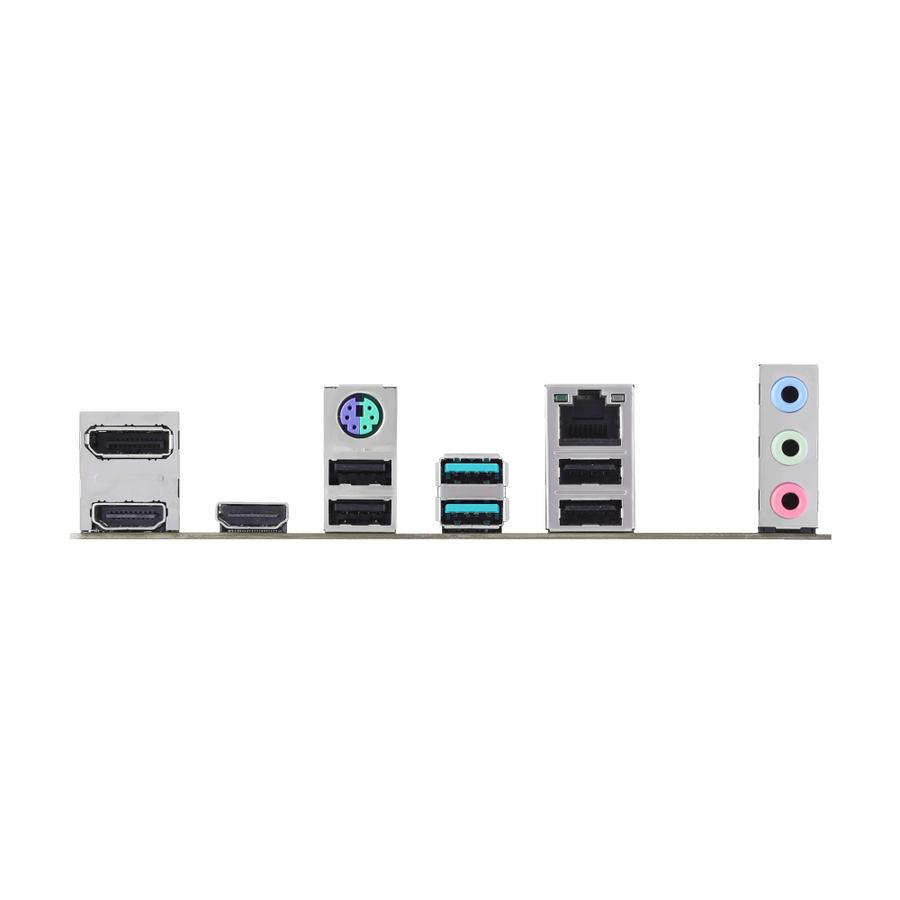

- Rear USB: 2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0 Type-A
- Rear video outputs: 1 x DisplayPort, 2 x HDMI
- Other rear I/O: 1 x RJ45 LAN, 3 x audio jacks, 1 x PS/2 combo
- BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
- Form factor: micro-ATX, 24.4 cm x 24.4 cm (9.6 in x 9.6 in)
⚡ Key Features
- LGA1700 with the Intel B760 chipset covers 14th, 13th and 12th Gen Core processors as well as Pentium Gold and Celeron chips.
- Four DDR4 slots take up to 128GB and reach 5333 MHz overclocked, so you can carry existing DDR4 kits over instead of buying DDR5.
- ASUS OptiMem II routing and Intel XMP support help memory run at its rated speed with fewer stability headaches.
- A CPU-linked PCIe 4.0 x16 slot feeds a modern graphics card, backed by two more slots in x4 and x1 modes for expansion cards.
- Two PCIe 4.0 x4 M.2 sockets let you run a fast boot SSD and a second NVMe drive for games or project files.
- Four SATA 6Gb/s ports leave space for additional SSDs and hard drives.
- Realtek 2.5Gb Ethernet gives you two and a half times the bandwidth of standard gigabit wired networking.
- Two HDMI outputs plus DisplayPort let a triple-display office or productivity setup run straight from Intel integrated graphics.
- Realtek 7.1 Surround Sound High Definition Audio with 24-bit/192 kHz playback handles headsets and speakers directly.
- Standard 24.4 x 24.4 cm micro-ATX layout fits most mainstream cases and CSM channel builds.
🛡️ SQUADRIG Assurance
- Brand new and sealed in original manufacturer packaging
- Sourced from authorised local distributors
- Checked on arrival and securely packed for delivery
- Honest listings — specifications are taken from the manufacturer's own published data
🔑 Product Details
- Brand: ASUS
- Model: PRIME B760M-A D4-CSM
- Condition: Brand new
- SKU: MOH-ASUS-B760M-NEW-0907
