Intel Core i5-12400F Desktop Processor

Intel Core i5-12400F Desktop Processor (BOX)

Six Performance-cores and 12 threads built on the Intel 7 process give the Core i5-12400F the gaming frame rates and everyday responsiveness most builders actually need, at a 65 W base power that any mainstream LGA1700 board and cooler can handle. As an F-series part it drops the integrated graphics, so it is made to pair with a discrete graphics card. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Product collection: 12th Generation Intel Core i5 Processors (Alder Lake)
• Model: Core i5-12400F (boxed part BX8071512400F)
• Total cores: 6
• Performance-cores (P-cores): 6
• Efficient-cores (E-cores): 0
• Total threads: 12
• P-core base frequency: 2.50 GHz
• Max turbo frequency: 4.40 GHz
• Intel Turbo Boost Max Technology 3.0: Not supported
• Intel Smart Cache (L3): 18 MB
• Total L2 cache: 7.5 MB
• Socket: FCLGA1700 (LGA1700)
• Processor base power: 65 W
• Maximum turbo power: 117 W
• Integrated graphics: None — F-suffix processor, a discrete graphics card is required
• Memory support: Up to DDR5 4800 MT/s, up to DDR4 3200 MT/s
• Max memory size: 128 GB
• Memory channels: 2
• Max memory bandwidth: 76.8 GB/s
• PCI Express revision: PCIe 5.0 and 4.0
• Max PCI Express lanes: 20
• Lithography: Intel 7
• Max operating temperature (TJUNCTION): 100 °C
• Instruction set: 64-bit
• Technologies: Intel Hyper-Threading, Intel VT-x, Intel VT-d, Intel AES-NI, Intel 64, Execute Disable Bit, Control-Flow Enforcement Technology
• Launch: Q1 2022

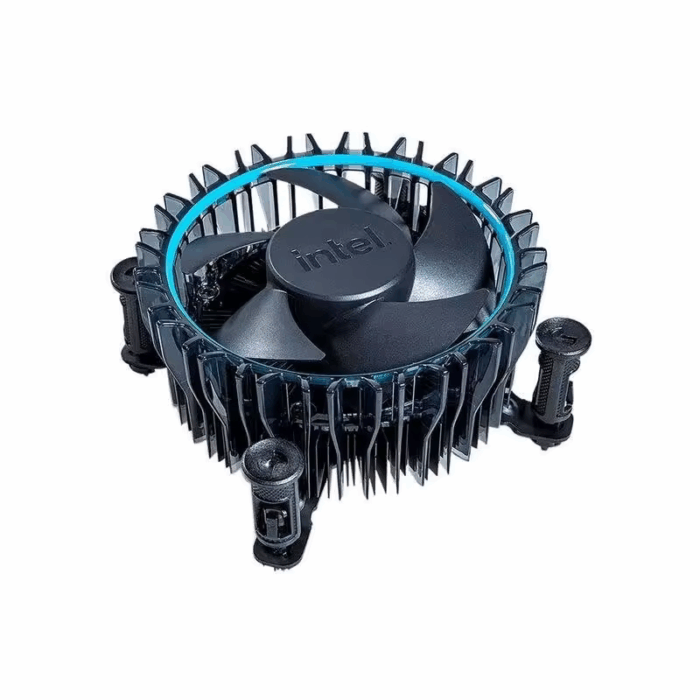

• In the box: Retail boxed processor with Intel Laminar RM1 cooler included

⚡ Key Features

• Six Performance-cores with Intel Hyper-Threading deliver 12 threads, so gaming, streaming and background tasks all get their own headroom.
• Clocks scale from a 2.50 GHz base to 4.40 GHz max turbo, keeping lightly threaded games and applications snappy without constant fan noise.
• 18 MB of Intel Smart Cache plus 7.5 MB of L2 keeps game and application data close to the cores for lower latency.
• A 65 W processor base power (117 W maximum turbo power) makes this an easy fit for compact builds and modest power supplies.
• This is a retail BOX unit that includes the Intel Laminar RM1 cooler, so you can build without buying a separate air cooler first.
• No integrated graphics on this F-suffix model — every watt and every transistor goes to the CPU cores, and you pair it with the discrete GPU of your choice.
• Dual-channel support for both DDR5 up to 4800 MT/s and DDR4 up to 3200 MT/s lets you choose a new DDR5 board or reuse a DDR4 platform, up to 128 GB and 76.8 GB/s.
• PCIe 5.0 and 4.0 with 20 lanes gives current graphics cards and NVMe SSDs room to run at full speed.
• Built on the Intel 7 process for the LGA1700 socket, with a 100 °C TJUNCTION ceiling and hardware features including Intel VT-x, VT-d, AES-NI and Control-Flow Enforcement Technology.

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: Intel
• Model: Core i5-12400F (BX8071512400F)
• Condition: Brand new
• SKU: CPU-INTEL-12400F-NEW-0864
