ASUS PRIME B760M-R D4 Motherboard
- Intel B760
- LGA 1700
- 2 x DDR4 up to 64GB
- 5333 MT/s (OC)
- 2 x PCIe 4.0 M.2
- 4 x SATA 6Gb/s
- 2.5Gb LAN
- HDMI
- Fast deliveryDelivered in 2-3 business days
- Cash on deliveryPay when you receive
- Easy returns14-day return policy
About This Product

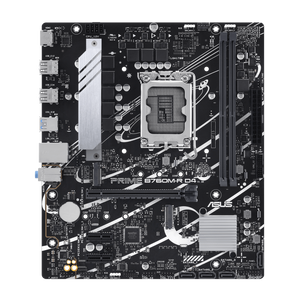

ASUS PRIME B760M-R D4 Intel B760 LGA 1700 Micro-ATX Motherboard
The value route into a 12th, 13th or 14th Gen Core system — B760 features, two PCIe 4.0 M.2 sockets and 2.5Gb networking while keeping your existing DDR4 memory instead of forcing a DDR5 purchase. Supplied brand new and sealed in its original manufacturer packaging.
📋 Specifications
- Brand: ASUS
- Model: PRIME B760M-R D4
- Socket: Intel LGA 1700
- Chipset: Intel B760
- CPU support: Intel Core 14th & 13th Gen, Intel Core 12th Gen, Pentium Gold and Celeron processors
- Memory: 2 x DIMM, DDR4 non-ECC un-buffered, up to 64GB
- Memory speed: Up to 5333 MT/s (OC); 3200 / 2933 / 2666 / 2400 / 2133 MHz native grades supported
- Memory features: Dual Channel Architecture, Intel XMP
- Expansion slots: 1 x PCIe 4.0 x16 (CPU), 2 x PCIe 4.0 x1
- M.2 storage: 2 x M.2 PCIe 4.0 x4 (2242 / 2260 / 2280)
- SATA: 4 x SATA 6Gb/s
- LAN: Realtek 2.5Gb Ethernet
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC, up to 24-bit/192kHz
- Rear USB: 4 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A
- Rear video output: 1 x HDMI
- Rear I/O extras: 3 x audio jacks
- Form factor: Micro-ATX, 24.4 cm x 21.1 cm (9.6" x 8.3")
⚡ Key Features
- Keeps your existing DDR4 kit — up to 64GB across two slots, with Intel XMP for one-click rated speed
- Supports DDR4 up to 5333 MT/s overclocked, so a fast enthusiast kit is not wasted on this board
- Two PCIe 4.0 x4 M.2 sockets mean a fast NVMe boot drive plus a second NVMe without adapters
- PCIe 4.0 x16 graphics slot connected directly to the CPU for full-bandwidth GPU performance
- Realtek 2.5Gb Ethernet gives 2.5x the local network throughput of a standard gigabit port
- Eight rear USB ports, four of them 5Gbps, so peripherals and external drives do not fight for sockets
- Realtek 7.1 HD audio with 24-bit/192kHz playback and audio-line shielding on the PCB
- Compact 24.4 x 21.1 cm Micro-ATX board fits small and mid-tower cases alike
🛡️ SQUADRIG Assurance
- Brand new and sealed in original manufacturer packaging
- Sourced from authorised local distributors
- Checked on arrival and securely packed for delivery
- Honest listings — specifications are taken from the manufacturer's own published data
