APNX V1 Mid-Tower PC Case

APNX V1 Mid-Tower PC Case — White

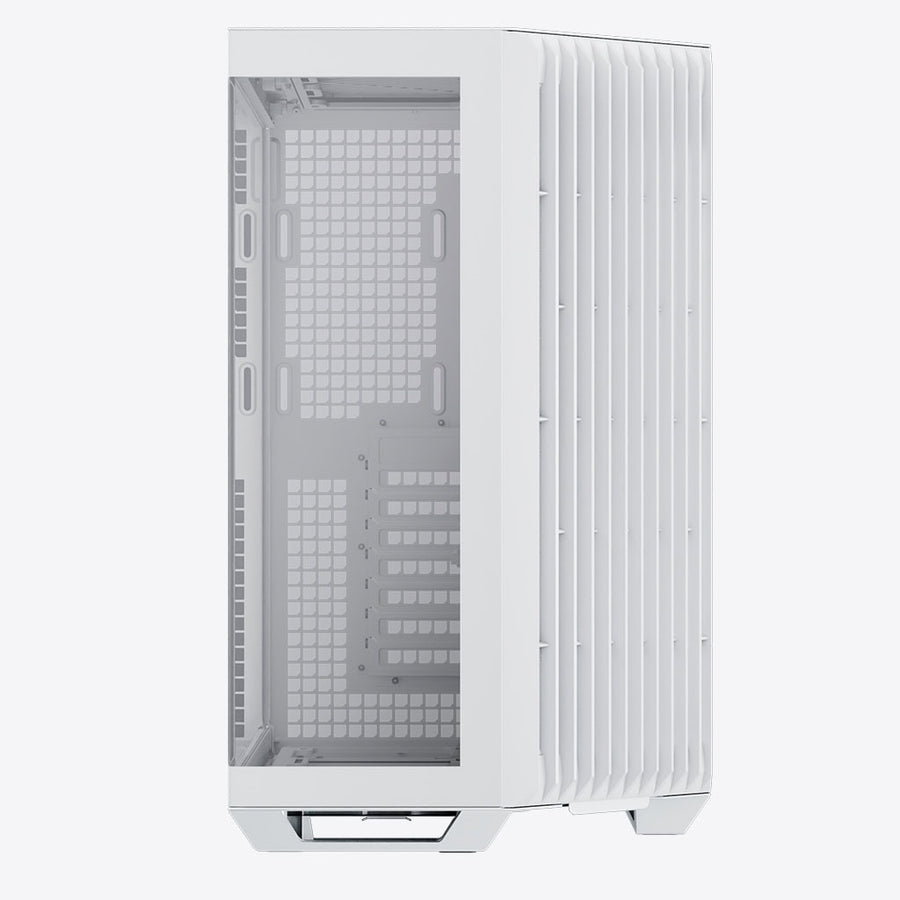

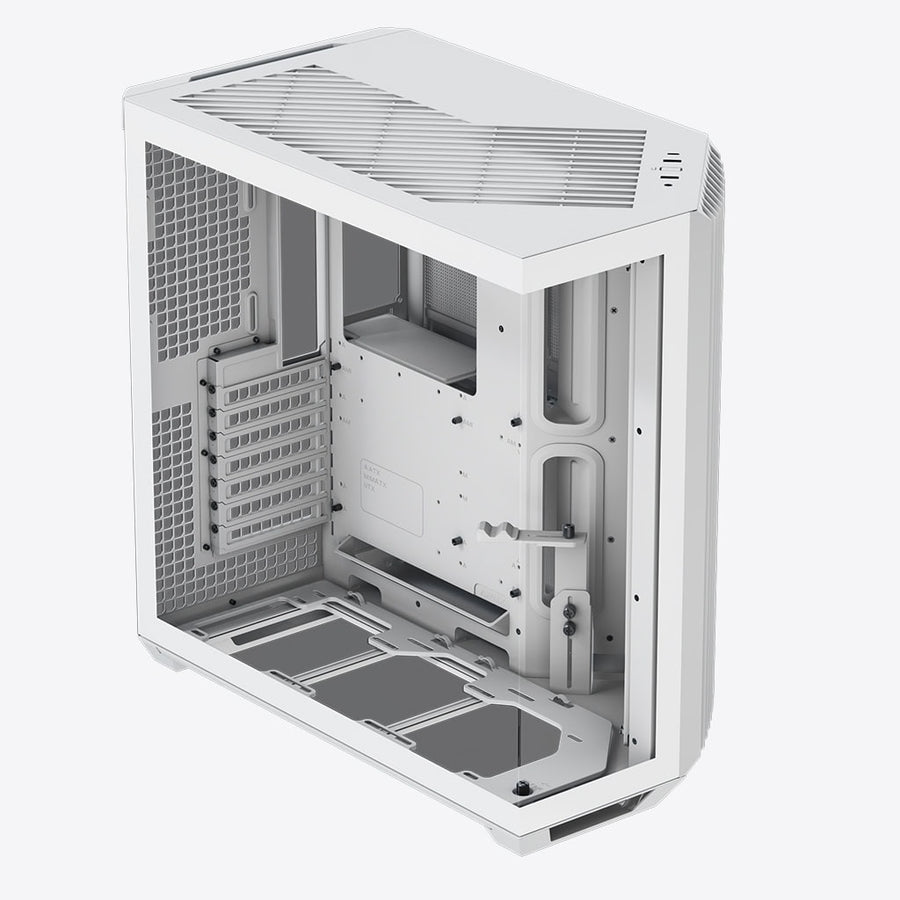

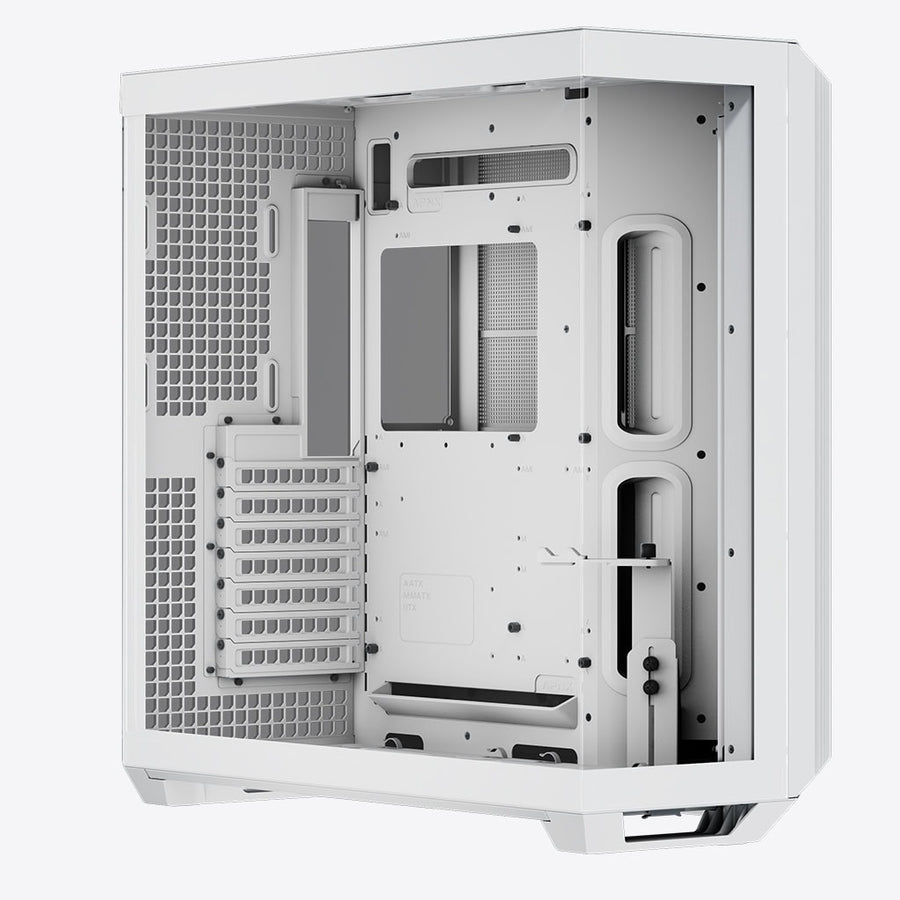

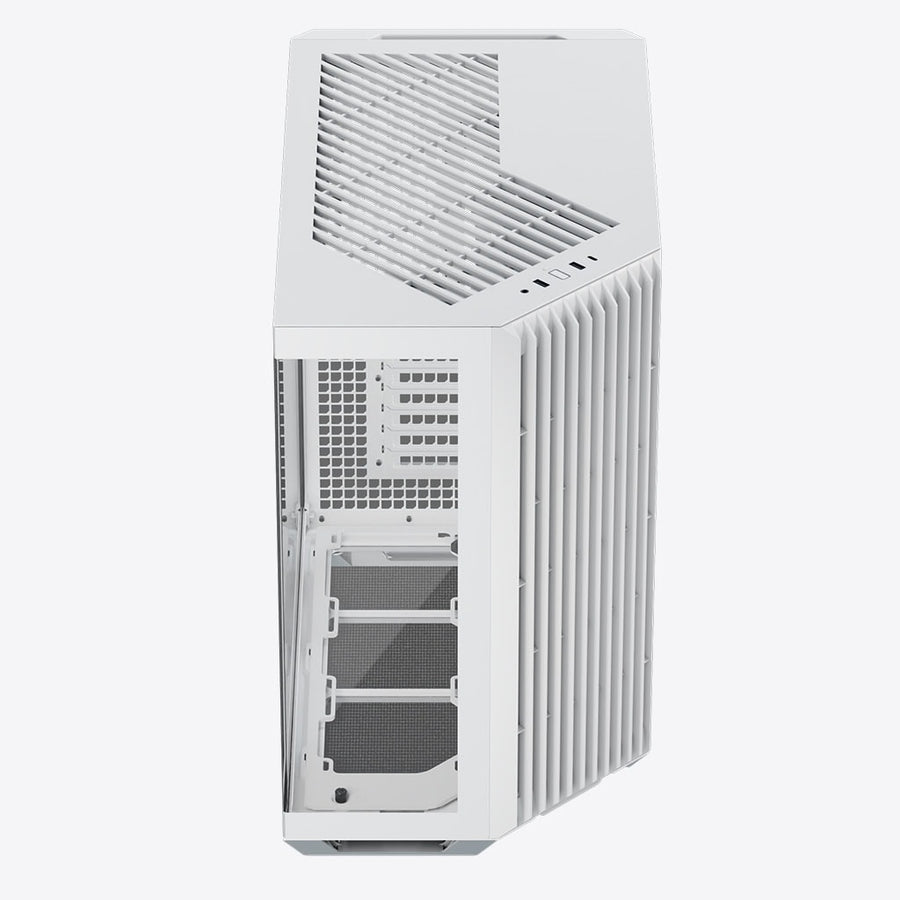

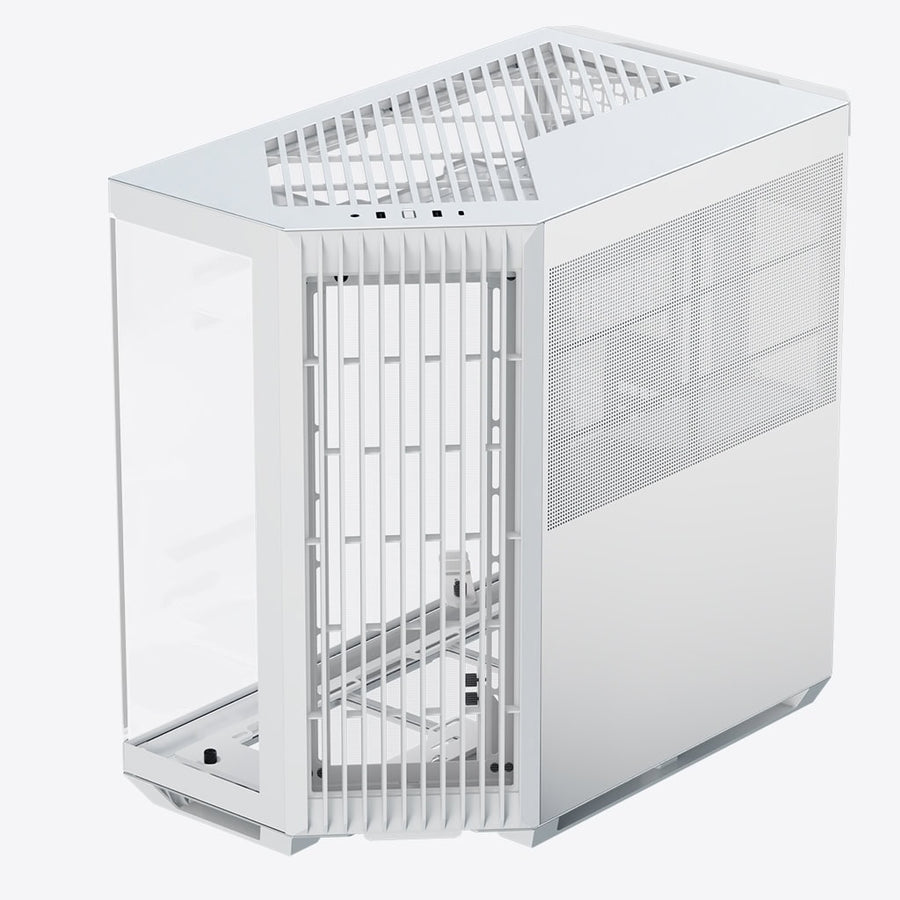

The V1 is a dual-chamber airflow chassis built around a 45° angular intake, with room for three 360 mm radiators' worth of mounting positions, a 395 mm graphics card and an adjustable GPU support bracket. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Case type: Mid tower
• Motherboard support: ATX / Micro ATX / Mini-ITX
• Overall dimensions: 290 x 485.5 x 500 mm (W x H x D)
• Internal dimensions: 290 x 460 x 480 mm (W x H x D)
• Body material: SGCC steel, 0.8 mm
• Front panel material: ABS
• Fan support: Front-right 3 x 120 mm or 2 x 140 mm or 2 x 160 mm · Top 3 x 120 mm or 2 x 140 mm · Bottom 3 x 120 mm or 2 x 140 mm · Rear 1 x 120 mm
• Radiator support: Front-right 120 / 140 / 240 / 280 / 360 mm · Top 120 / 140 / 240 / 280 / 360 mm · Bottom 120 / 140 / 240 / 280 / 360 mm · Rear 120 mm
• GPU clearance: Up to 395 mm (without a radiator in the front-right position)
• CPU cooler clearance: Up to 170 mm
• Expansion slots: 7
• Drive bays: Up to 2 x 3.5" and up to 6 x 2.5"
• Dust filters: Top (built-in), front-right (removable), side (removable), bottom (removable)
• Cable management depth: 90 mm
• Power supply support: ATX PSU up to 220 mm including cables (not included)
• Front I/O: 1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 1 Type-A, Audio & Mic
• Model number: V1-WT-v1
• Colour: White

⚡ Key Features

• A dual-chamber panoramic structure with a 45° angular intake splits the cooling zones so the GPU and CPU each get their own clean air path.
• The front-right position takes up to three 120 mm, two 140 mm or two 160 mm fans — or a 360 mm radiator — for serious intake capacity.
• Radiators up to 360 mm mount in three separate positions (front-right, top and bottom), so an AIO can go wherever the build needs it.
• A built-in GPU mount with adjustable height and swivel angle holds cards up to 395 mm level and sag-free.
• Storage flexibility is unusually good for an airflow chassis: up to two 3.5" drives and up to six 2.5" SSDs.
• Filters on all four intake faces — top, front-right, side and bottom — with three of them removable for quick cleaning.
• 90 mm of cable management depth behind the motherboard tray keeps thick PSU runs tidy and out of the glass view.
• Front I/O steps up to a 20 Gbps USB 3.2 Gen 2x2 Type-C port alongside two USB 3.2 Gen 1 Type-A ports and audio.
• 170 mm of CPU cooler clearance clears the large dual-tower air coolers most builders reach for.
• 0.8 mm SGCC steel construction gives the frame real rigidity for a case of this size.

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: APNX
• Model: V1 (V1-WT-v1)
• Condition: Brand new
• SKU: CASE-APNX-APNX-NEW-1577
