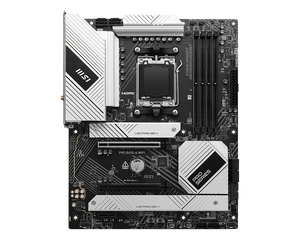

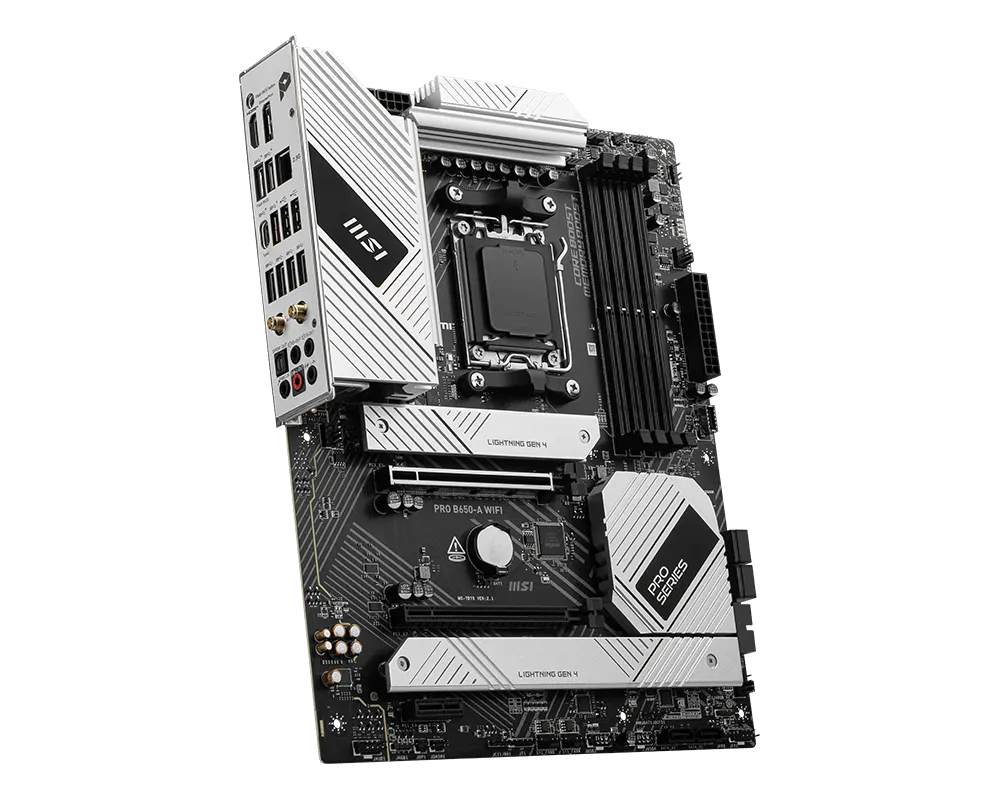

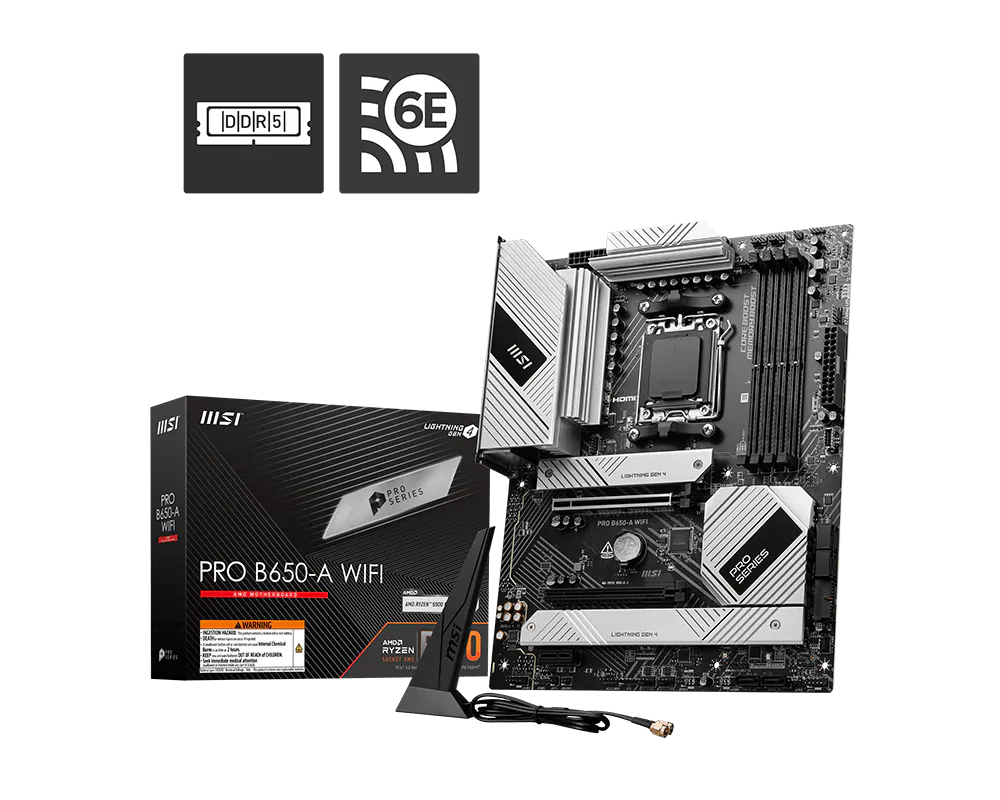

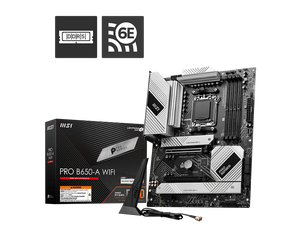

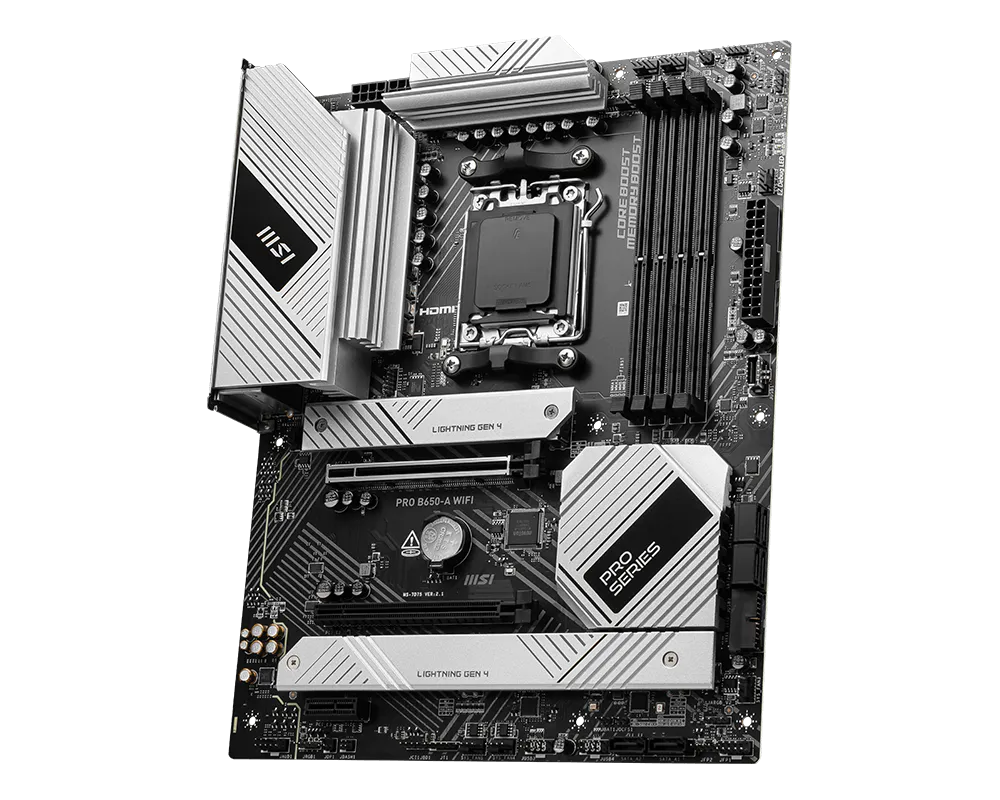

The MSI PRO B650-A WiFi is a business-oriented ATX motherboard built on AMD's mainstream B650 chipset — designed for professionals, content creators, and PC builders who prioritize productivity, efficiency, and reliability over flashy gaming aesthetics. Part of MSI's renowned PRO Series, this motherboard delivers impressive performance and high quality at a smart-value price.

Compatible with AMD Ryzen 7000, 8000, and 9000 Series processors (including Ryzen 9 9950X), the PRO B650-A WiFi features a flagship-class 14+2 80A SPS power solution, DDR5 7600+ MT/s, triple M.2 Gen4 storage, WiFi 6E, and 2.5G LAN — making it a perfect foundation for AM5-based workstation, content creation, and business builds.

⚡ 14+2 Phase 80A SPS Power Solution — Flagship VRM Design

Robust power delivery for high-core-count AMD CPUs:

• 14+2 phase VRM design with 80A Smart Power Stage (SPS)
• Dual 8-pin CPU power connectors for sustained heavy CPU loads (up to 170W)
• Core Boost Technology for sustained heavy work performance
• Fully Digital Power Design for precise current delivery
• Premium 6-Layer PCB with 2oz thickened copper (server-grade)
• Solid Pin Power Connectors (4-pin, 8-pin, 24-pin) for stable transmission
• Performance Switch combines AMD PBO + MSI's own OC settings
• Engineered to handle Ryzen 9 9950X, 9900X, 7950X3D at full boost

💾 DDR5 7600+ MT/s with EXPO + Memory Boost

Push memory performance to extreme heights:

• 4× DDR5 SMT DIMM slots — Up to 256GB total capacity
• DDR5 7600+ MT/s with overclocking (1DPC 1R)
• AMD EXPO™ profile support — One-click memory tuning
• Intel® XMP profile support
• MSI Memory Boost technology with SMT welding process
• SMT (Surface Mount Technology) reduces signal interference
• Fully-isolated DDR circuit for clean signal integrity
• MSI OC LAB tested XMP/EXPO profiles

🚀 PCIe 4.0 + Triple M.2 Gen4 Storage

High-speed expansion and storage:

• PCIe 4.0 x16 slot with Steel Armor reinforcement (extra solder points for heavy GPUs)
• Additional PCIe expansion slots
• 3× M.2 Gen4 x4 slots (64 Gbps each)
• M.2 Shield Frozr thermal solution prevents throttling
• EZ M.2 Clip for screwless SSD installation
• 6× SATA 6Gb/s for additional storage
• Resizable BAR (Re-Size BAR) support for improved GPU performance

🌐 WiFi 6E + 2.5G LAN

Next-generation networking:

• WiFi 6E (802.11ax) — Tri-band (2.4 / 5 / 6 GHz)
• Bluetooth 5.3 for modern peripherals
• Realtek 2.5 Gigabit Ethernet for low-latency wired networking
• MU-MIMO support for crowded networks

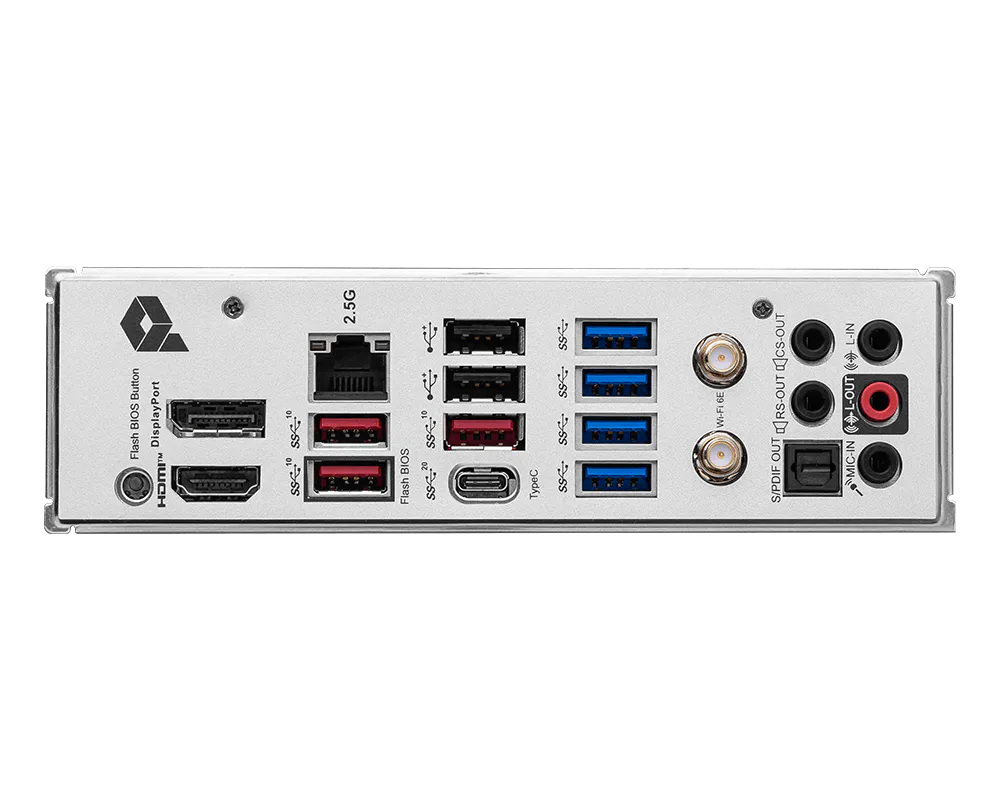

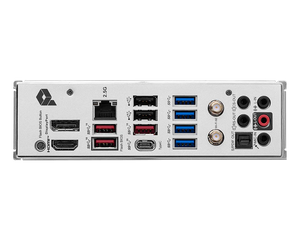

🔌 USB 3.2 Gen 2x2 — 20Gbps Speed

Comprehensive USB connectivity:

• 1× USB 3.2 Gen 2x2 Type-C (rear, 20 Gbps)
• Multiple USB 3.2 Gen 2 Type-A ports (rear)
• USB 3.2 Gen 1 Type-A ports
• USB 2.0 ports for legacy devices
• USB Front Type-C support for modern cases
• HDMI 2.1 + DisplayPort 1.4 (4K@60Hz support)

🌡️ Premium Thermal Solution

Comprehensive cooling for sustained performance:

• Extended VRM Heatsink with enlarged surface area
• 7W/mK MOSFET thermal pads
• Additional choke thermal pads for VRM stability
• M.2 Shield Frozr for SSD thermal protection
• Chipset Heatsink with dust-reduction design
• Smart Fan Control with PWM/DC auto-detection
• Dedicated Pump Fan header for AIO liquid cooling
• Active "Frozr AI" cooling support

🎵 7.1 USB High Performance Audio

Premium audio for an immersive experience:

• 7.1-Channel HD Audio
• USB-based audio codec
• Premium audio capacitors
• EMI shielding for cleaner sound

🛠️ Builder-Friendly Features

Designed for builders of all skill levels:

• EZ M.2 Clip — Quick screwless SSD installation
• EZ DEBUG LED indicators (CPU, DRAM, VGA, BOOT)
• Pre-installed I/O Shield with corrosive-resistant coating
• Steel Armor PCIe slot for heavy GPU support
• Solid Pin Power Connectors for stability
• Double ESD Protection around mounting holes
• Protective paint around screw holes prevents scratches
• Flash BIOS Button — Update BIOS without CPU/RAM

🛡️ MSI Reliability Features

• 2oz Thickened Copper PCB (server-grade material)
• 6-Layer PCB design for superior heat dissipation
• Solid Pin Design for high-current applications
• Corrosive Resistant I/O Shield (anti-static, anti-EMI)
• BIOS Security functions for private file protection
• Secure Boot standard support

🎯 Why MSI PRO Series?

The PRO Series is tailored to professionals who care about:

• ✅ Productivity & Efficiency — Multitasking made easy
• ✅ Reliability — Built to last with premium components
• ✅ Stability — Server-grade design philosophy
• ✅ Value — Flagship-class VRM at competitive price
• ✅ Clean Aesthetic — Professional look without RGB excess
• ✅ AMD Ryzen 9000 Ready — Future-proof platform

Key Features

• AMD B650 Chipset — AM5 socket
• Compatible CPUs: AMD Ryzen 7000 / 8000 / 9000 Series
• ATX form factor
• 14+2 Phase VRM with 80A Smart Power Stage (SPS)
• Dual 8-pin CPU Power Connectors (sustains up to 170W)
• 6-Layer 2oz Copper PCB (server-grade)
• 4× DDR5 SMT DIMM slots — Up to 256GB at 7600+ MT/s (OC)
• AMD EXPO™ + Intel XMP support
• MSI Memory Boost technology
• Performance Switch (AMD PBO + MSI OC)
• PCIe 4.0 x16 slot with Steel Armor
• 3× M.2 Gen4 x4 slots with Shield Frozr
• EZ M.2 Clip screwless design
• 6× SATA 6Gb/s ports
• Resizable BAR support
• WiFi 6E (802.11ax) + Bluetooth 5.3
• Realtek 2.5 Gigabit Ethernet
• USB 3.2 Gen 2x2 Type-C (20 Gbps, rear)
• USB Front Type-C support
• HDMI 2.1 + DisplayPort 1.4 (4K@60Hz)
• 7.1 USB High Performance Audio
• Premium Thermal Solution (Extended VRM heatsink + M.2 Shield Frozr)
• EZ DEBUG LED indicators
• Pre-installed I/O Shield (corrosive resistant)
• Steel Armor PCIe slot
• Solid Pin Power Connectors
• Double ESD Protection
• Flash BIOS Button (no CPU/RAM needed)
• BIOS Security + Secure Boot
• SKU: MOH-MSI-PROB650A-OB-0061
