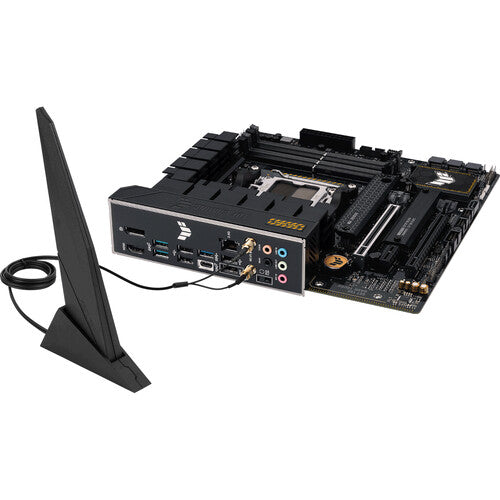

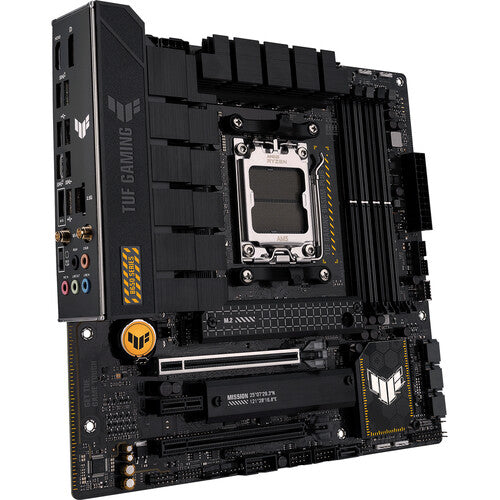

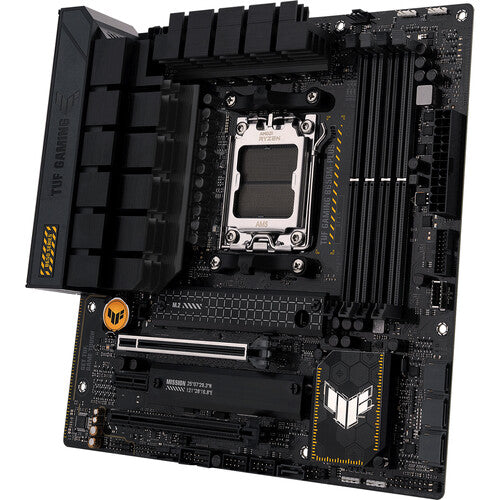

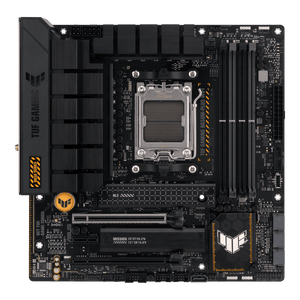

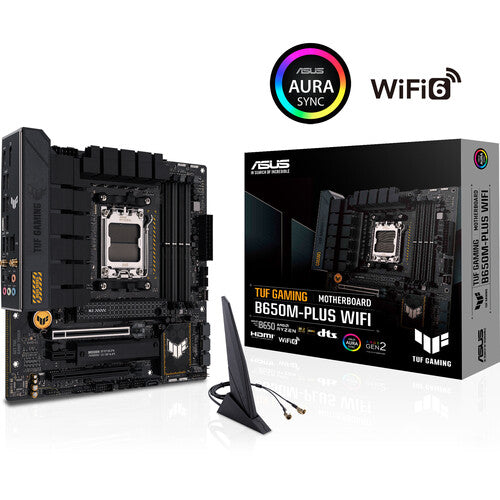

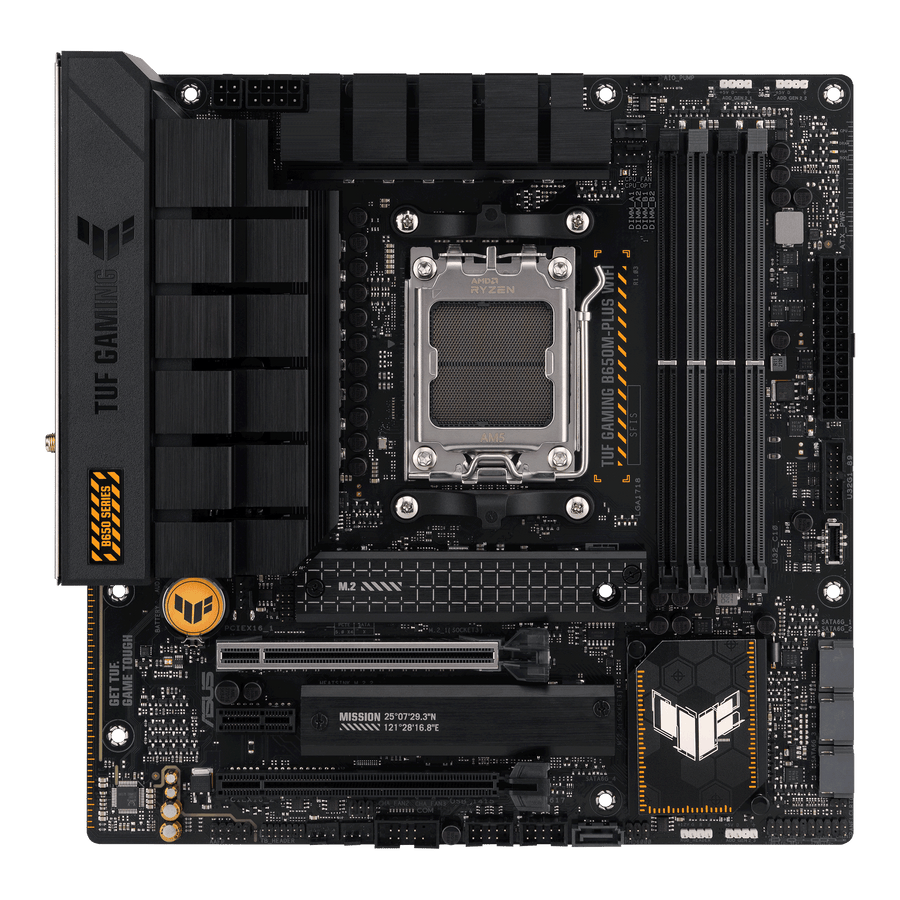

The ASUS TUF Gaming B650M-PLUS WiFi is a premium Micro-ATX motherboard that combines military-grade durability, game-ready features, and compact form factor — built on AMD's B650 chipset with the latest AM5 socket. Engineered with proven TUF Gaming reliability, this board is the perfect foundation for compact AMD gaming builds, mATX cases, and SFF builds that demand full-feature performance in a smaller space.

Compatible with AMD Ryzen 7000, 8000, and 9000 Series processors (including the legendary Ryzen 9 9950X and Ryzen 7 7800X3D), the TUF Gaming B650M-PLUS WiFi delivers a 12+2+2 power solution with 60A DrMOS, PCIe 5.0 M.2, USB 3.2 Gen 2x2 (20 Gbps), and the rare USB4 / Thunderbolt 4 header — making it a smart-value mATX choice that matches the features of much larger boards.

📐 Micro-ATX Form Factor — Compact Yet Powerful

Full-feature performance in a compact size:

• 24.4 × 24.4 cm Micro-ATX form factor
• Perfect for compact gaming cases like NZXT H510 Flow, Lian Li Lancool 205M, Fractal Pop Mini Air
• Ideal for mATX builds, compact gaming rigs, HTPCs, second PCs
• Save space without sacrificing features
• Rugged off-black geometric design — TUF Gaming aesthetic

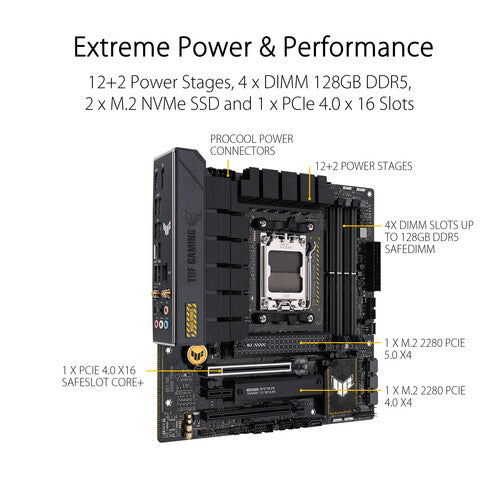

⚡ 12+2+2 Power Stages (60A DrMOS)

Robust power delivery for high-core-count AMD CPUs:

• 12+2+2 DrMOS power stages rated for 60A each
• Combines high-side/low-side MOSFETs and drivers in a single package
• Military-grade TUF chokes for rock-solid power delivery
• TUF 5K black metallic capacitors with 2.5× longer lifespan
• 52% wider temperature tolerance than standard capacitors
• ProCool sockets with tight specifications for full PSU contact
• Lower impedance prevents hotspots and connector failure
• 6-Layer PCB design for superior heat dissipation
• Engineered to handle Ryzen 9 9950X, 7950X3D at full boost

💾 DDR5 6400+ MHz with EXPO + AEMP

Comprehensive memory tuning for any DDR5 module:

• 4× DDR5 DIMM slots — Up to 128GB total capacity
• DDR5 6400+ MT/s with overclocking
• AMD EXPO™ profile support — One-click memory tuning
• Intel® XMP 3.0 profile support
• AEMP (ASUS Enhanced Memory Profile) — Auto-tunes PMIC-restricted memory modules
• On-Die ECC support
• Dual Channel Memory Architecture
• 48/24GB high-density DDR5 module support

🚀 PCIe 5.0 M.2 — Lightning-Fast Storage

Future-proof storage with cutting-edge speeds:

• 1× PCIe 4.0 x16 slot for graphics cards
• 1× PCIe 4.0 x16 slot (x4 mode)
• 1× PCIe 4.0 x1 slot
• 2× M.2 slots:
• ↳ M2_1: PCIe 5.0 x4 (up to 128 Gb/s)
• ↳ M2_2: PCIe 4.0 x4
• M.2 Q-Latch for tool-free SSD installation
• M.2 heatsink with specialized screws
• 4× SATA 6Gb/s ports
• AMD RAIDXpert2 NVMe & SATA RAID 0/1/10
• Vertical M.2 slot (Key E) for WiFi module

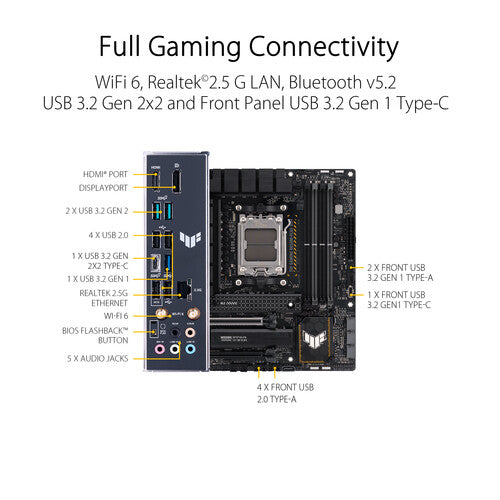

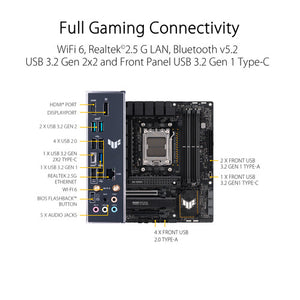

🌐 WiFi 6 + 2.5G LAN — Premium Connectivity

Modern wireless and wired networking:

• WiFi 6 (802.11ax) — Up to 2.4 Gbps theoretical bandwidth
• Bluetooth 5.2 for modern peripherals
• Realtek 2.5 Gigabit Ethernet with TUF LANGuard
• MU-MIMO support for crowded networks

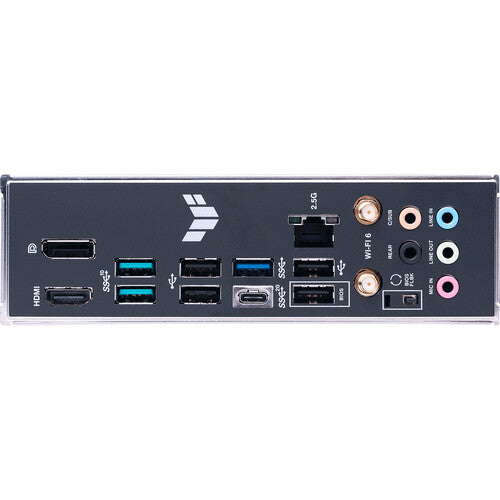

🔌 USB 3.2 Gen 2x2 + USB4 Header — Premium USB

Comprehensive USB connectivity with rare USB4 support:

• 1× USB 3.2 Gen 2x2 Type-C (rear, 20 Gbps)
• 2× USB 3.2 Gen 2 Type-A (rear, 10 Gbps)
• 1× USB 3.2 Gen 1 Type-A (rear, 5 Gbps)
• 4× USB 2.0 Type-A ports (rear)
• 1× USB 3.2 Gen 1 Type-C front-panel header
• USB4® / Thunderbolt™ 4 header for optional add-on card (40 Gbps)
• Total 8 rear + 7 front USB ports

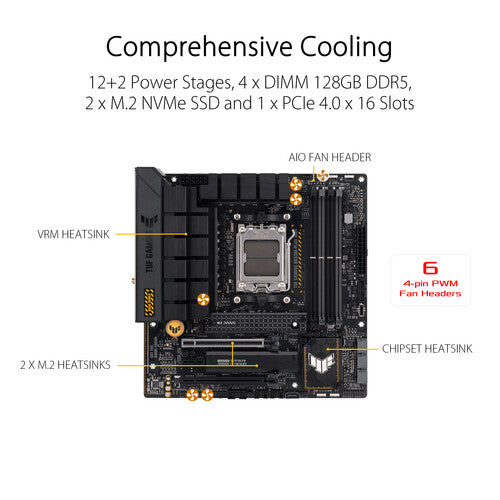

🌡️ Comprehensive Thermal Solution

Engineered cooling for sustained performance:

• VRM heatsinks with extensive surface area
• M.2 heatsink for SSD thermal protection
• PCH heatsink
• Hybrid Fan Headers with PWM/DC auto-detection
• Dedicated AIO Pump headers for liquid cooling
• Fan Xpert 2+ for intelligent fan control
• Thermal monitoring mechanisms for CPU and motherboard protection

📺 DisplayPort + HDMI — Premium Display Output

• DisplayPort 1.4 — Up to 8K @ 60Hz
• HDMI 2.1 — Up to 4K @ 60Hz
• Perfect for APU builds and multi-monitor setups

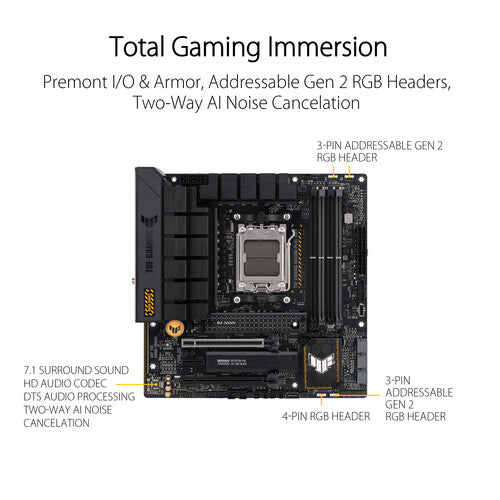

🎵 7.1 Surround Sound HD Audio

• Realtek 7.1 Surround Sound HD Audio CODEC
• 24-bit / 192 kHz playback support
• Audio Shielding for cleaner sound
• Premium audio capacitors
• Dedicated audio PCB layers
• DTS® Audio Processing for immersive experience

🎤 Two-Way AI Noise Cancellation

ASUS-exclusive AI software removes ambient noise from both incoming and outgoing audio — perfect for streaming, calls, and competitive gaming.

🎨 Aura Sync RGB

• Aura Sync RGB ecosystem support
• Aura RGB headers + Addressable Gen 2 headers
• Sync with compatible ASUS hardware
• Rugged TUF Gaming aesthetic with subtle accents

🛠️ ASUS Q-Design — Builder-Friendly Features

• M.2 Q-Latch — Tool-free SSD installation
• Q-DIMM for easier memory installation
• Q-LED Indicators (CPU, DRAM, VGA, Boot Device)
• Q-Slot for easier expansion card installation
• BIOS FlashBack™ button & LED
• Pre-mounted I/O Shield
• SafeDIMM for memory protection
• SafeSlot Core+ reinforced PCIe
• CrashFree BIOS 3 auto-recovery
• EZ Flash 3 for in-BIOS updates

🛡️ ASUS TUF Protection — Military-Grade Durability

Rigorous endurance testing for ultimate reliability:

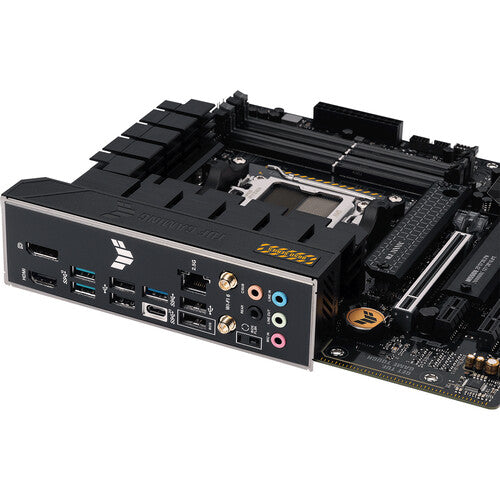

• Stainless-Steel Back I/O Panel — 3× longer lifespan than traditional
• Passed 72-hour salt fog testing (vs 24-hour standard)
• Military-grade TUF chokes
• TUF 5K Capacitors with 52% wider temperature tolerance
• DIGI+ VRM with DrMOS
• Enhanced DRAM Overcurrent Protection
• ESD Guards for static protection
• TUF LANGuard for ethernet protection
• Overvoltage Protection

🤖 ASUS Intelligent Software

• Armoury Crate for system control
• Aura Creator + Aura Sync for RGB customization
• Fan Xpert 2+ for intelligent fan control
• Two-Way AI Noise Cancellation
• AI Suite 3 with TurboV EVO + DIGI+ VRM
• PC Cleaner for system maintenance
• TUF GAMING CPU-Z
• DTS Audio Processing

🎯 Why ASUS TUF Gaming B650M-PLUS WiFi?

• ✅ Compact mATX — Build smaller without sacrificing features
• ✅ 12+2+2 60A DrMOS VRM — Handles flagship Ryzen 9 9950X
• ✅ PCIe 5.0 M.2 — Future-proof storage at 128 Gb/s
• ✅ USB 3.2 Gen 2x2 (20 Gbps) — Premium USB
• ✅ USB4 / Thunderbolt 4 header — Rare at this price
• ✅ Military-grade durability — 72-hour salt fog tested
• ✅ WiFi 6 + 2.5G LAN — Premium connectivity
• ✅ Ryzen 9000 / 7000 / 8000 ready

Key Features

• AMD B650 Chipset — AM5 socket
• Compatible CPUs: AMD Ryzen 7000 / 8000 / 9000 Series (including 9950X, 7800X3D)
• Micro-ATX form factor (24.4 × 24.4 cm)
• 12+2+2 DrMOS Power Stages (60A each)
• Military-grade TUF chokes + TUF 5K capacitors
• ProCool sockets with solid-pin connectors
• 6-Layer PCB design
• 4× DDR5 DIMM slots — Up to 128GB at 6400+ MT/s (OC)
• AMD EXPO + Intel XMP 3.0 + AEMP support
• On-Die ECC support
• 1× PCIe 4.0 x16 slot for graphics
• 1× PCIe 4.0 x16 (x4) + 1× PCIe 4.0 x1
• 1× M.2 PCIe 5.0 x4 (up to 128 Gb/s) + 1× M.2 PCIe 4.0 x4
• M.2 Q-Latch screwless design
• 4× SATA 6Gb/s with RAID 0/1/10
• Vertical M.2 slot (Key E) for WiFi
• WiFi 6 (802.11ax) + Bluetooth 5.2
• Realtek 2.5 Gigabit Ethernet with TUF LANGuard
• USB 3.2 Gen 2x2 Type-C (20 Gbps, rear)
• USB 3.2 Gen 1 Type-C front-panel header
• USB4® / Thunderbolt™ 4 header (40 Gbps with add-on)
• DisplayPort 1.4 (8K@60Hz) + HDMI 2.1 (4K@60Hz)
• Realtek 7.1 Surround Sound HD Audio (24-bit/192 kHz)
• Audio Shielding + DTS Audio Processing
• Two-Way AI Noise Cancellation
• Aura Sync RGB (Aura + Gen 2 ARGB headers)
• VRM + M.2 + PCH heatsinks
• Hybrid Fan Headers + Fan Xpert 2+
• Stainless-Steel Back I/O (72-hour salt fog tested)
• Q-LED diagnostics
• BIOS FlashBack™ button
• Pre-mounted I/O Shield
• SafeSlot Core+ + SafeDIMM
• SKU: MOH-ASUS-TUFB650M-OB-0065
