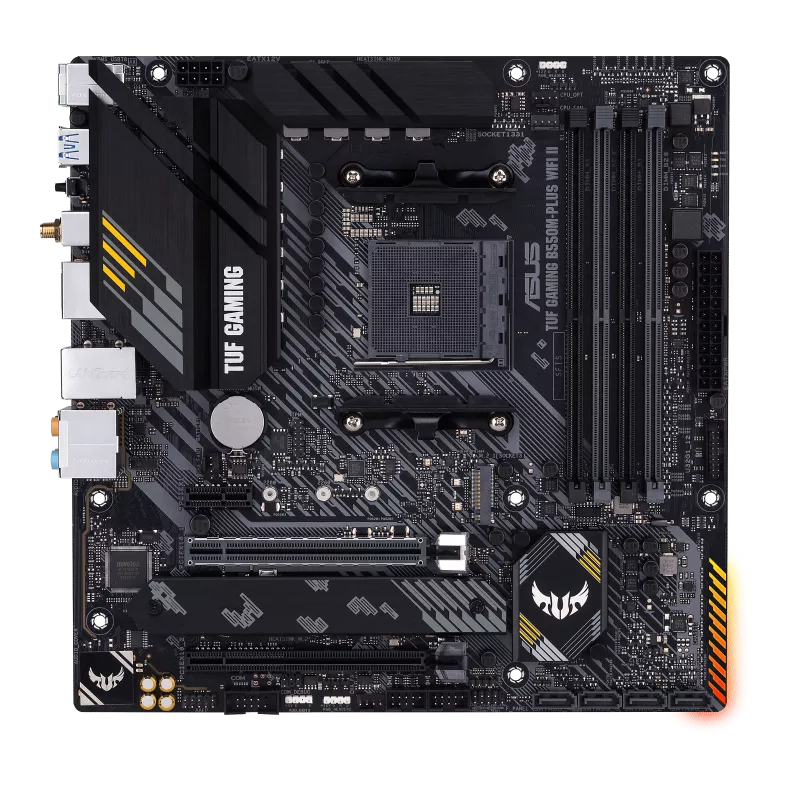

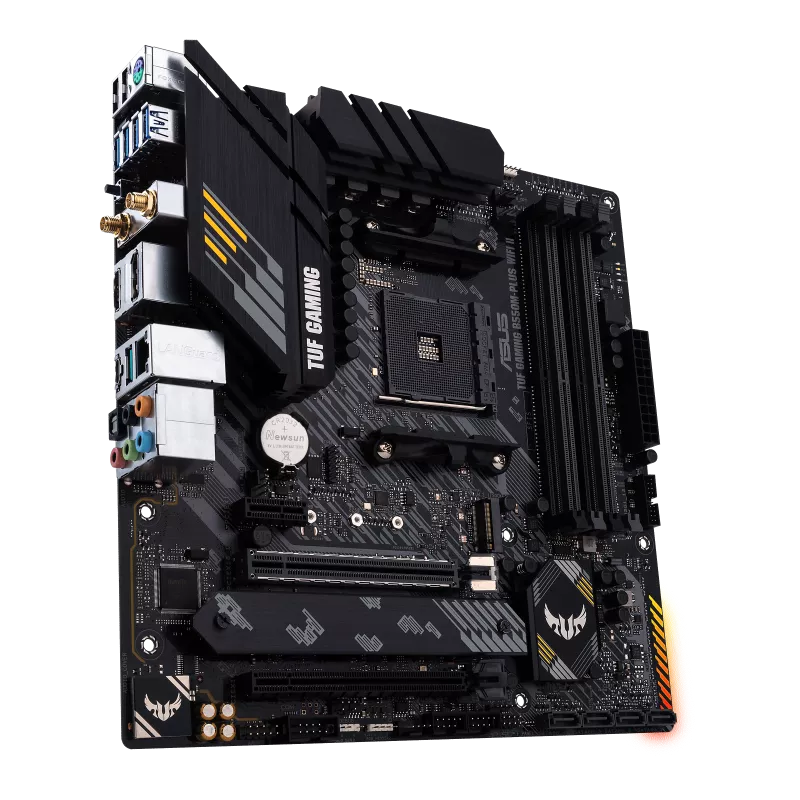

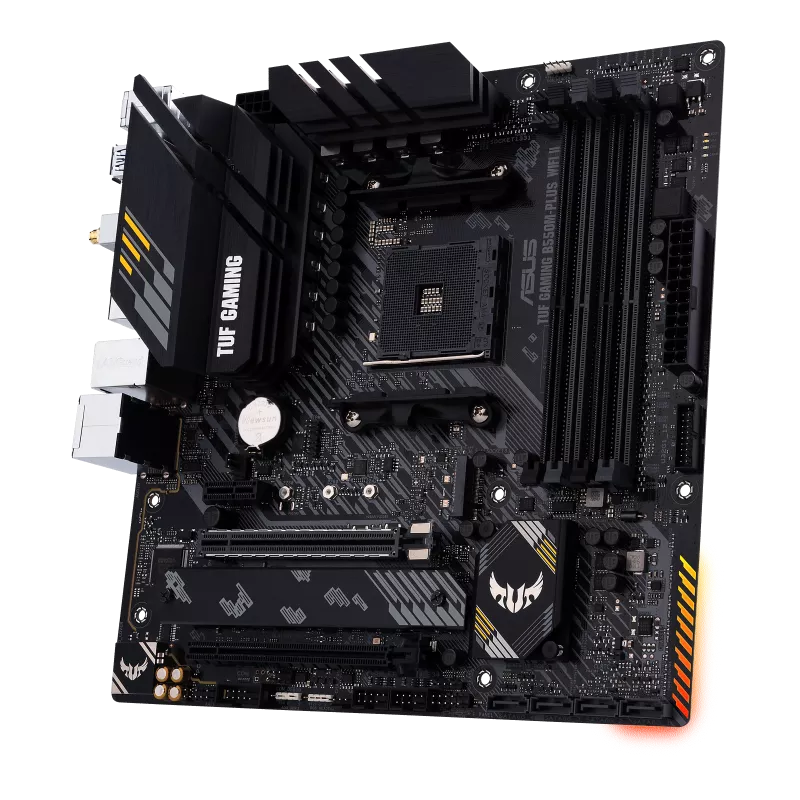

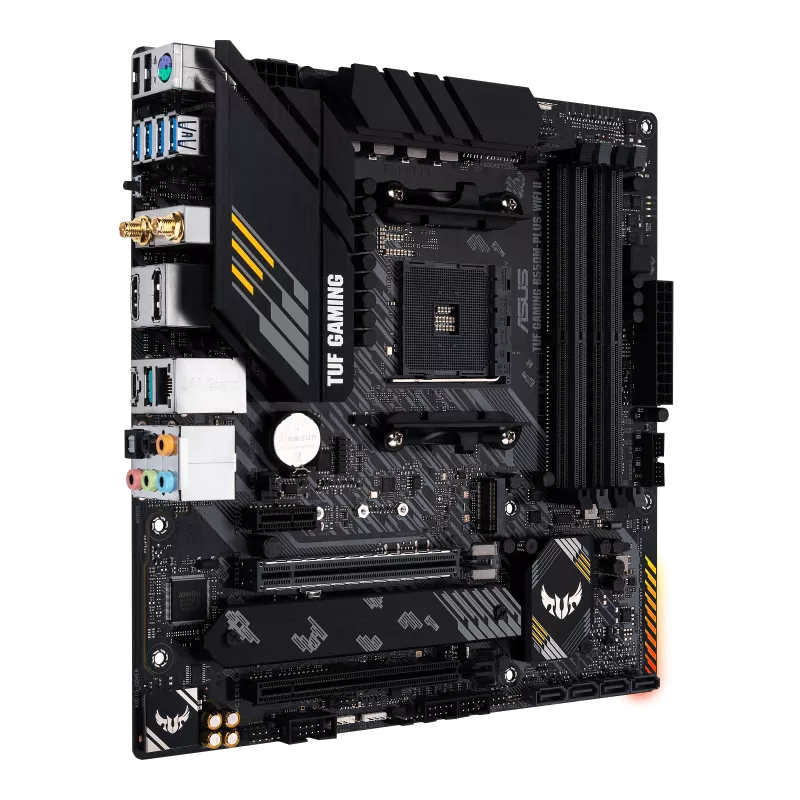

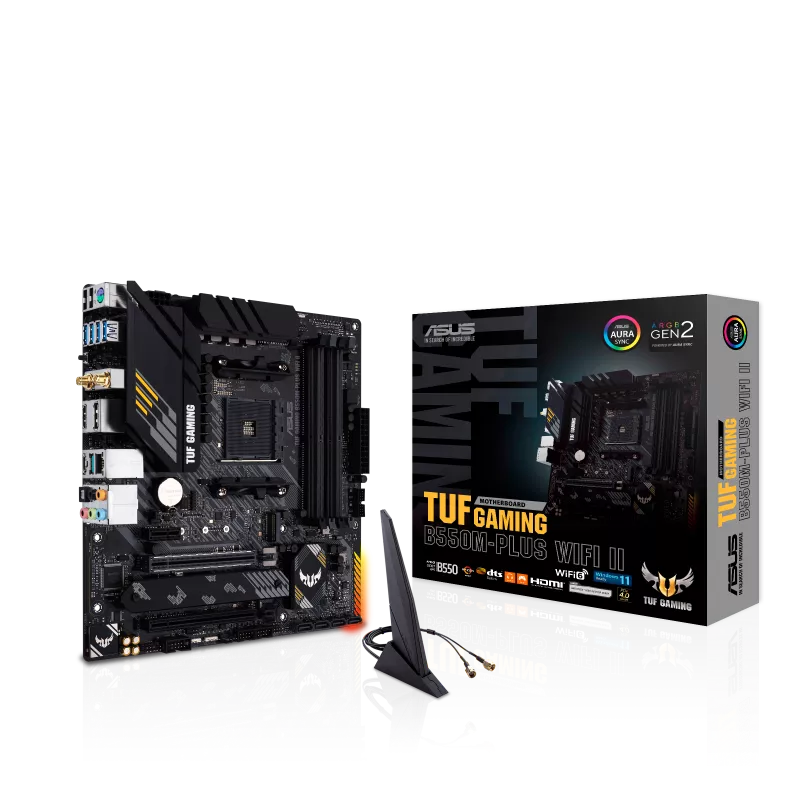

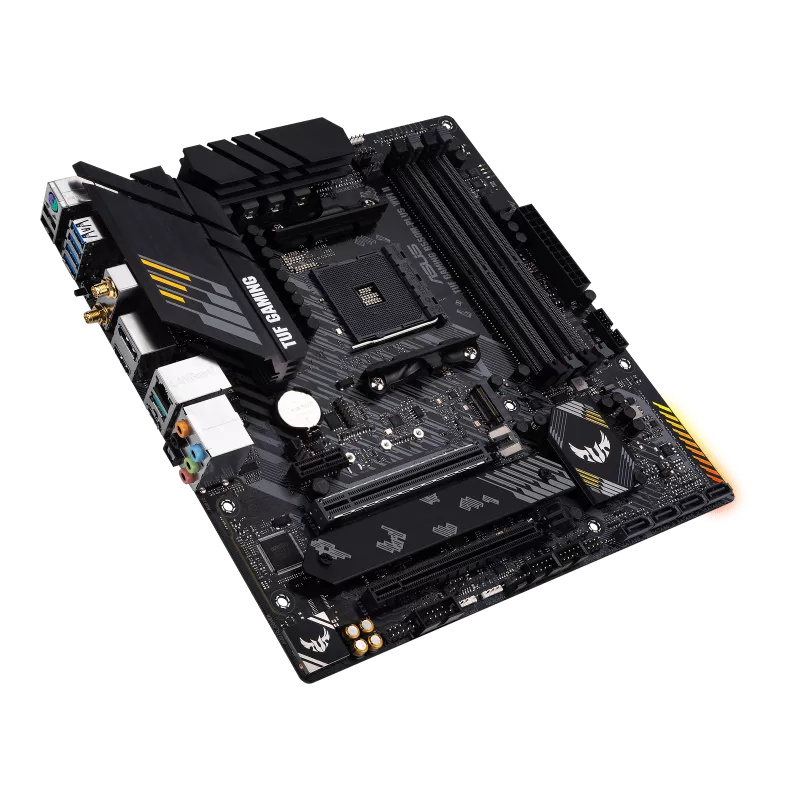

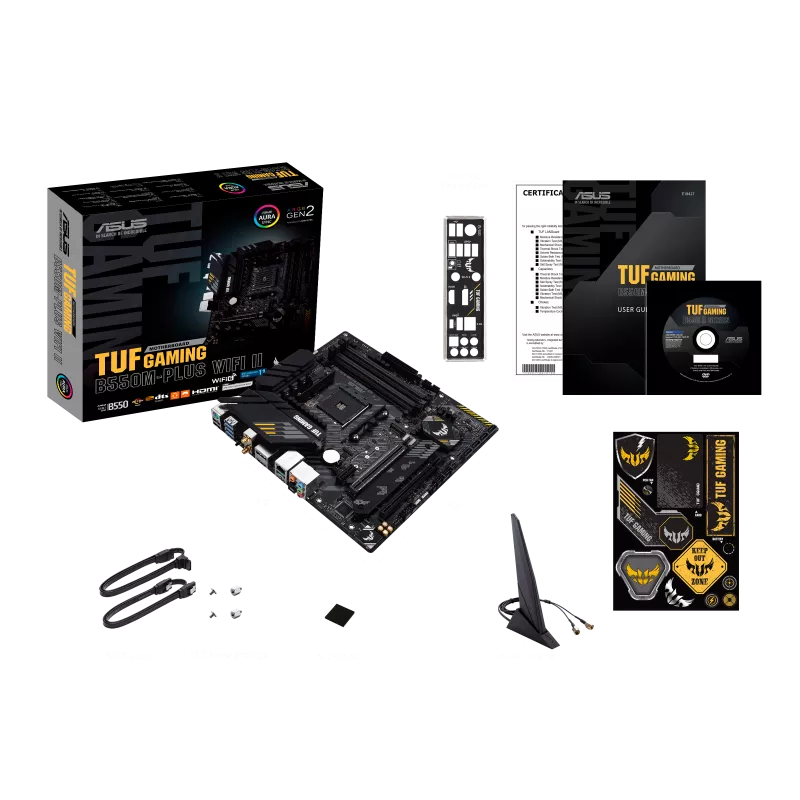

ASUS TUF Gaming B550M-PLUS WiFi II
- AMD AM4 Micro-ATX Motherboard
- DDR4 4866+
- PCIe 4.0
- Dual M.2
- WiFi 6
- 2.5G LAN
- For Ryzen 5000/3000 Series
- Fast deliveryDelivered in 2-3 business days
- Cash on deliveryPay when you receive
- Easy returns14-day return policy
About This Product
The ASUS TUF Gaming B550M-PLUS WiFi II is a battle-tested Micro-ATX gaming motherboard built for AMD's proven AM4 platform. Engineered with military-grade components and ASUS's signature TUF durability standards, this motherboard delivers rock-solid performance for AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, and 3000 Series processors — making it the ideal foundation for compact, reliable gaming builds.
⚡ 8+2 DrMOS Power Stages
Robust power delivery built for enthusiast performance:
- 8+2 DrMOS power stages combining high-side/low-side MOSFETs and driver in a single package
- 2-ounce copper PCB layers draw heat away from critical components
- Digi+ VRM for precise voltage regulation
- ProCool II sockets ensure flush PSU contact (lower impedance, no hotspots)
- Military-grade TUF chokes for rock-steady CPU power
- Proprietary capacitors with 52% wider temperature tolerance and 2.5× longer lifespan
💾 DDR4 Memory Performance
- 4× DDR4 DIMM slots — Up to 128GB total capacity
- DDR4-4866 MT/s (OC) supported
- Dual Channel Memory Architecture
- ECC Memory support (varies by CPU)
- OptiMem II for cleaner DRAM signaling
🚀 PCIe 4.0 + Dual M.2 Storage
Lightning-fast storage and expansion:
- PCIe 4.0 x16 slot — Full 64 Gbps bandwidth
- 2× M.2 slots (M.2_1 PCIe 4.0 x4 + M.2_2 PCIe 3.0)
- M.2 Heatsinks for thermal stability
- NVMe SSD RAID 0/1/10 support
- 4× SATA 6Gb/s ports for additional storage
🌐 WiFi 6 + 2.5G Ethernet
Next-generation networking for low-latency gaming:
- MTK WiFi 6 (802.11ax) — Up to 2.4 Gbps theoretical bandwidth
- Bluetooth 5.2 for modern peripherals
- Realtek 2.5 Gigabit Ethernet with TUF LANGuard
- MU-MIMO support for crowded networks
- TurboLAN technology for low-latency gaming
🔌 USB 3.2 Gen 2 — 10Gbps Speed
Modern USB connectivity:
- 1× USB 3.2 Gen 2 Type-C (rear, 10 Gbps)
- 1× USB 3.2 Gen 2 Type-A (rear)
- Multiple USB 3.2 Gen 1 Type-A ports (rear)
- USB 2.0 ports for legacy devices
- Front-panel USB headers for case connectivity
🌡️ Comprehensive Cooling
Keep your system stable under load:
- VRM Heatsink array
- PCH fanless heatsink
- Dual M.2 heatsink coverage
- Hybrid fan headers with PWM/DC auto-detection
- Fan Xpert 4 utility for fine-tuned cooling
- AIO Pump headers for liquid cooling support
🎵 Premium Audio
- Realtek ALC S1200A codec
- TUF Gaming audio cover for EMI shielding
- Audio shielding with dedicated PCB layers
- Premium audio capacitors
- Exclusive DTS® Custom for Gaming Headsets
- Optical S/PDIF Out for clean digital audio
🎤 AI Noise-Canceling Microphone
ASUS-exclusive AI software removes ambient noise from voice communications — crystal-clear in-game chat without external software.
🎨 TUF Aesthetic + Aura Sync RGB
- Iconic TUF military-inspired design
- Aura Sync RGB with 2× ARGB Gen 2 + 1× 4-pin RGB headers
- Sync with TUF Gaming Alliance ecosystem
- Black PCB with yellow TUF accents
🛠️ Builder-Friendly Features
- BIOS FlashBack™ — Update BIOS without CPU/RAM
- EZ Flash 3 for in-BIOS updates
- Q-LED Indicators (CPU, DRAM, VGA, BOOT)

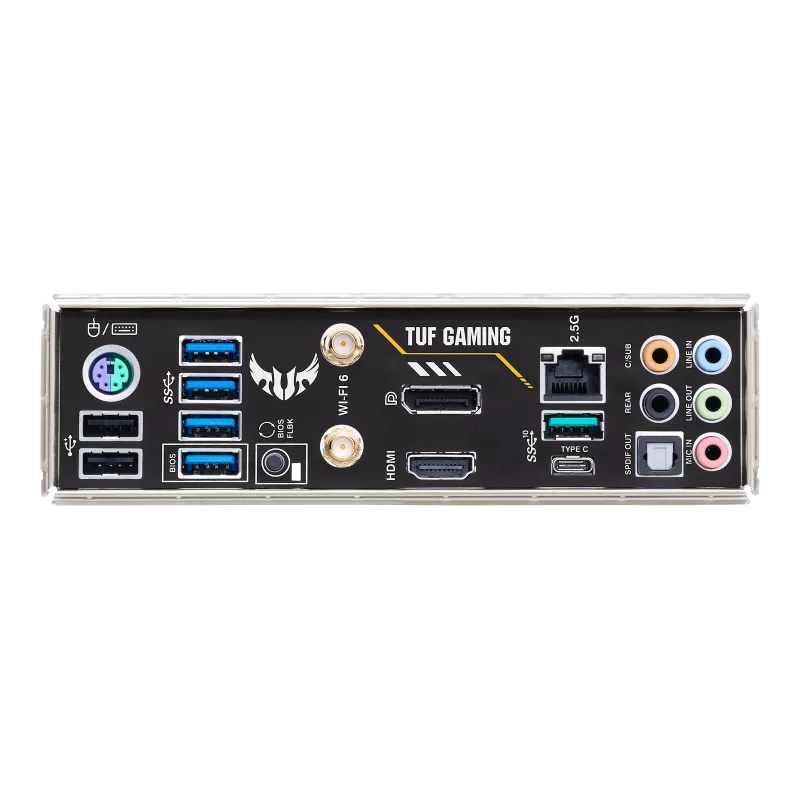

- Pre-mounted I/O Shield
- CrashFree BIOS 3 — Auto BIOS recovery
Key Features
- AMD B550 Chipset — AM4 socket
- Compatible CPUs: AMD Ryzen 5000 / 5000 G-Series / 4000 G-Series / 3000 Series
- Micro-ATX form factor (244 × 244 mm)
- 8+2 DrMOS power stages with Digi+ VRM
- 4× DDR4 DIMM slots — Up to 128GB at 4866 MT/s (OC)
- PCIe 4.0 x16 slot with SafeSlot
- 2× M.2 slots (1× PCIe 4.0 + 1× PCIe 3.0)
- 4× SATA 6Gb/s ports
- MTK WiFi 6 (802.11ax) + Bluetooth 5.2
- Realtek 2.5 Gigabit Ethernet with TUF LANGuard
- USB 3.2 Gen 2 Type-A + Type-C (rear)
- HDMI + DisplayPort (for iGPU display)
- Realtek ALC S1200A audio with DTS Custom
- AI Noise-Canceling Microphone
- Aura Sync RGB (2× ARGB Gen 2 + 1× 4-pin RGB)
- TUF Gaming Alliance ecosystem compatible
- Military-grade TUF components (chokes, capacitors)
- 2oz copper PCB layers
- ProCool II power sockets
- BIOS FlashBack™ (no CPU/RAM needed)
- Pre-mounted I/O Shield
📊 Technical Specifications
- Socket: AMD Socket AM4 (Ryzen 5000 / 3000)
- Chipset: AMD B550
- Memory Type: DDR4 only - 4x DIMM, max 128GB, DDR4-2133 up to 4866 (OC)
- Form Factor: Micro-ATX
- Expansion Slots: 1x PCIe 4.0 x16 (Ryzen 5000/3000), 1x PCIe 3.0 x16 (x4 mode), 1x PCIe 3.0 x1; M.2: M.2_1 PCIe 4.0 x4 + SATA, M.2_2 PCIe 3.0 x4 + SATA
- Storage: 4x SATA 6Gb/s (RAID 0/1/10)
- Connectivity: 2.5Gb Ethernet with TUF LANGuard; Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + Bluetooth 5.2
