MSI B550M PRO-VDH WIFI Motherboard | AMD Socket AM4 · B550 Chipset | Micro-ATX | 4x DDR4 up to 128GB · 4400MHz (OC) | PCIe 4.0 x16 · Dual M.2 | Wi-Fi 5 · Bluetooth 4.2 · Gigabit LAN | VGA · HDMI · DisplayPort

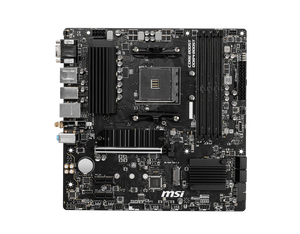

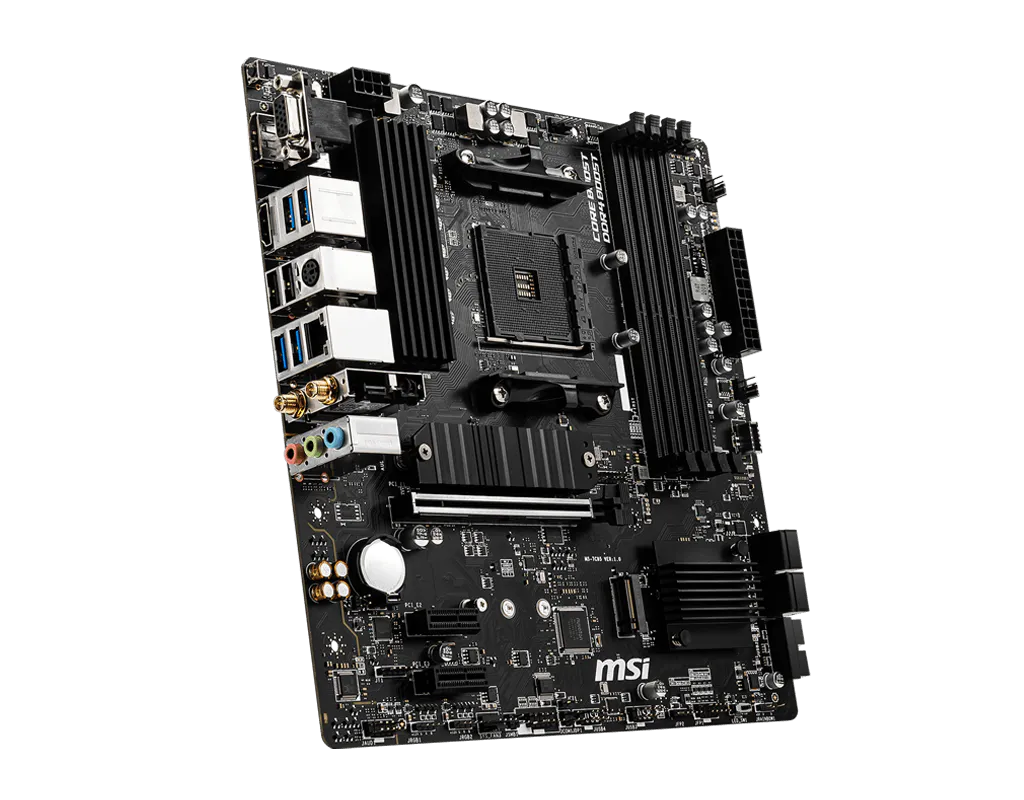

MSI B550M PRO-VDH WIFI Motherboard

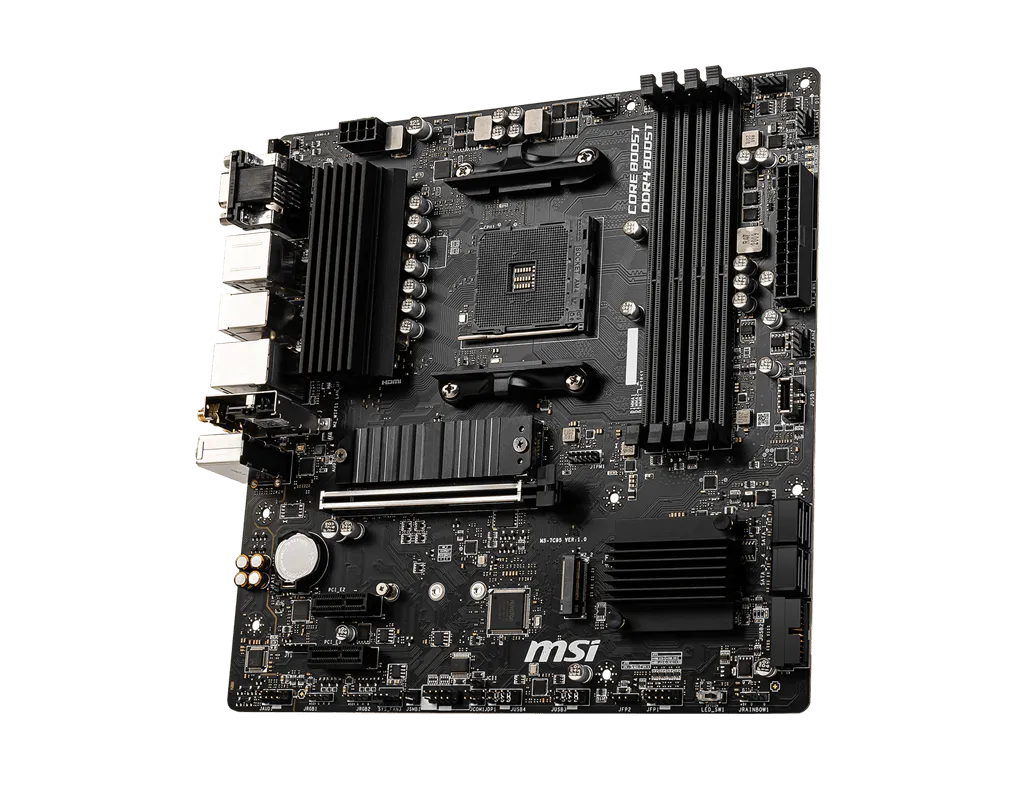

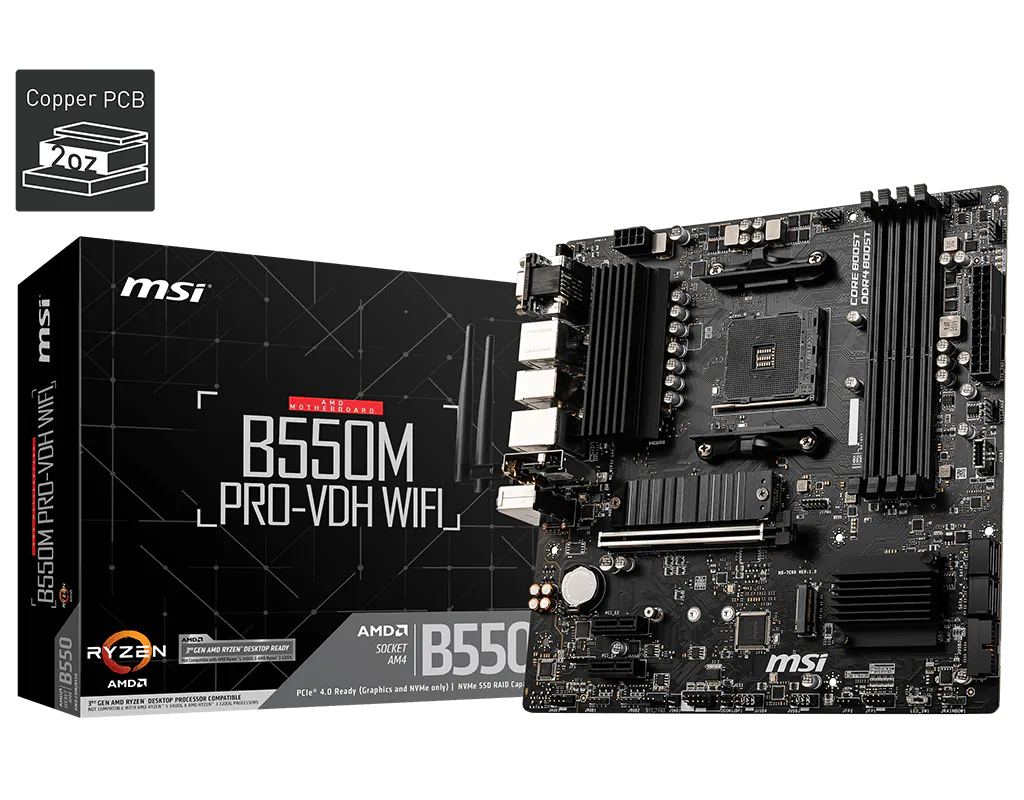

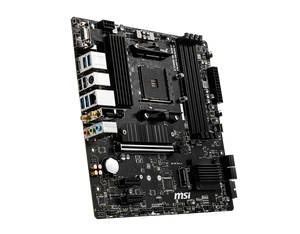

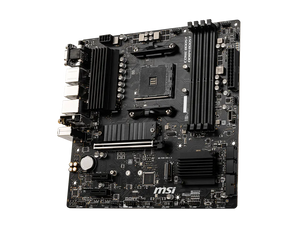

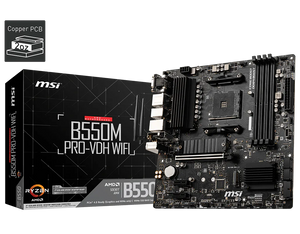

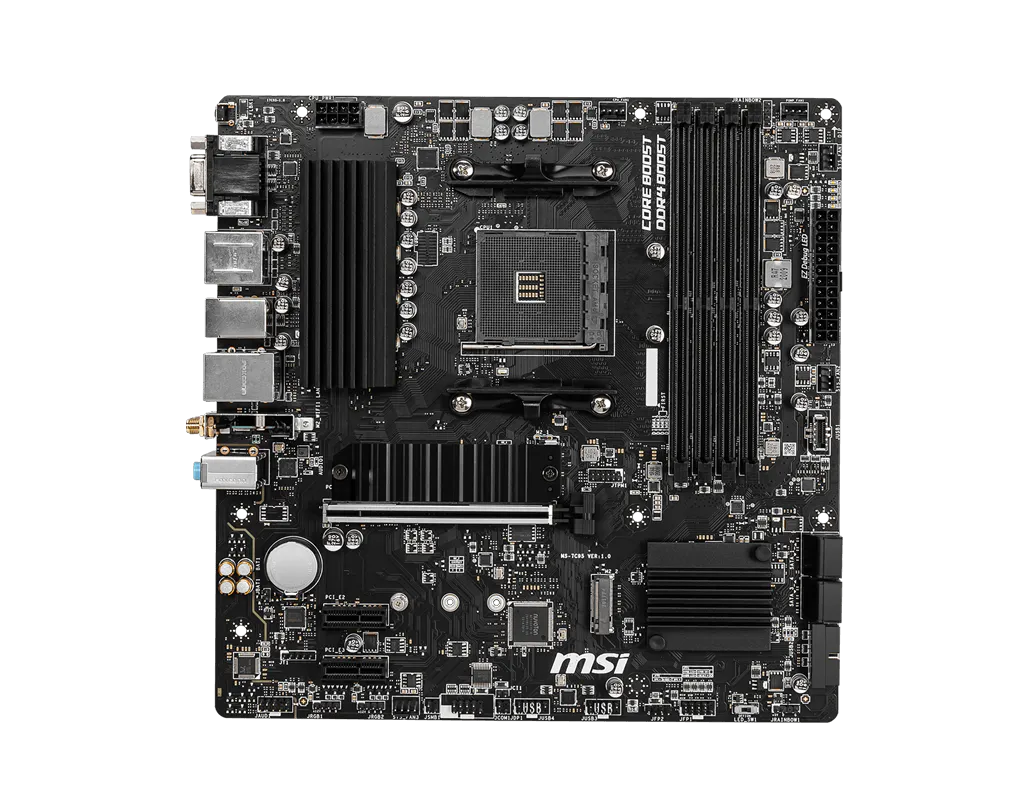

The B550M PRO-VDH WIFI packs the important parts of a Ryzen build into one Micro-ATX board: PCIe 4.0 for your graphics card and main NVMe drive, four DDR4 slots for up to 128GB, dual M.2 storage and built-in Wi-Fi with Bluetooth so a wireless setup works out of the box. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Brand: MSI
• Model: B550M PRO-VDH WIFI
• CPU Socket: AMD Socket AM4
• Chipset: AMD B550
• Form Factor: Micro-ATX (9.6 in x 9.6 in)
• Memory: 4x DDR4 DIMM slots, dual channel, up to 128GB (non-ECC and ECC UDIMM supported)
• Memory Speed: Up to 4400 MHz via A-XMP overclocking (1DPC 1R)
• Expansion Slots: 1x PCIe 4.0/3.0 x16, 2x PCIe 3.0 x1
• M.2: 2x M.2 (M-Key) — M2_1 PCIe 4.0/3.0 x4 with SATA support, M2_2 PCIe 3.0 x4
• SATA: 4x SATA 6Gb/s ports

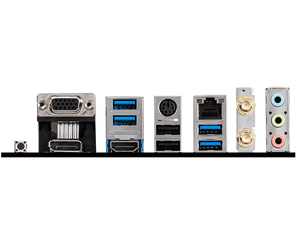

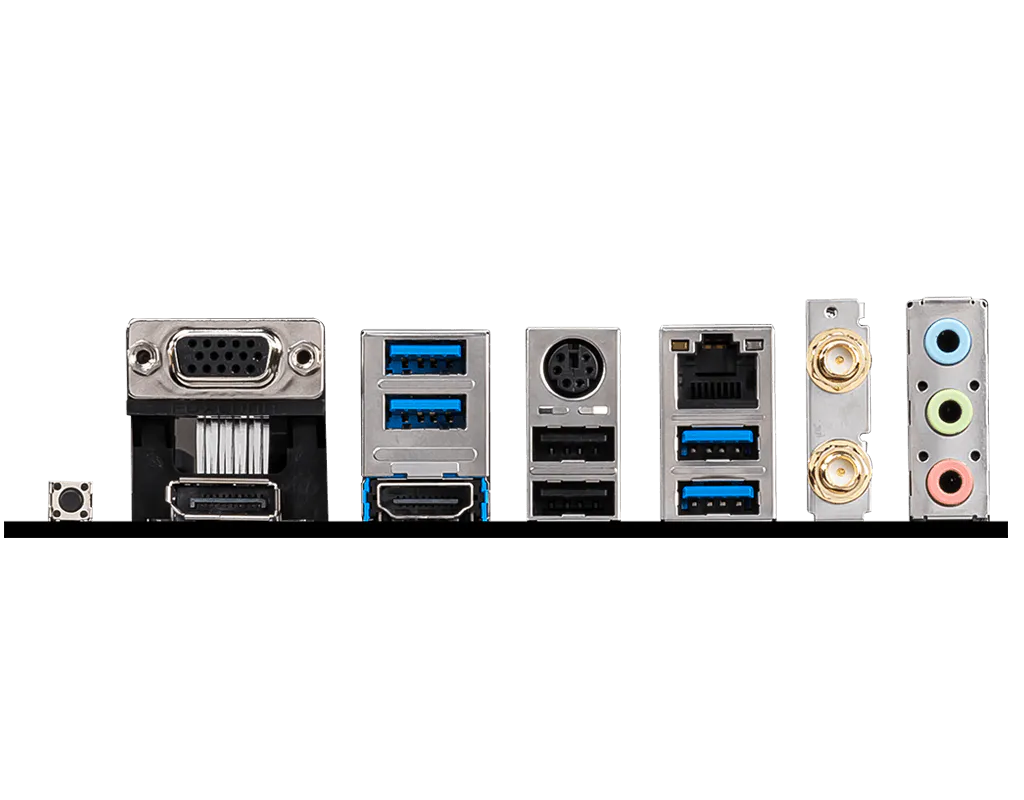

• Rear USB: 4x USB 3.2 Gen 1 Type-A, 2x USB 2.0 Type-A
• Rear Video Output: 1x VGA, 1x DisplayPort, 1x HDMI 2.1
• LAN: Realtek RTL8111HN Gigabit LAN
• Wireless: Intel Wireless-AC 3168 — Wi-Fi 5 (802.11 a/b/g/n/ac) dual band 2.4GHz/5GHz up to 433 Mbps
• Bluetooth: Bluetooth 4.2 (dual mode, backwards compatible to 2.1)
• Audio: Realtek ALC892/ALC897 codec, 7.1-channel High Definition Audio

⚡ Key Features

• PCIe 4.0 support on the x16 slot and the primary M.2 slot doubles the available bandwidth for a modern graphics card and NVMe SSD versus PCIe 3.0.
• Four DDR4 slots take up to 128GB, so this board handles heavy multitasking and content work as well as gaming.
• A-XMP takes memory to 4400 MHz from a single BIOS toggle, no manual tuning required.
• Two M.2 slots mean a fast PCIe 4.0 boot drive plus a second PCIe 3.0 drive for your game library.
• Built-in Intel Wireless-AC 3168 Wi-Fi 5 and Bluetooth 4.2 save you a PCIe card and a USB dongle.
• Three rear display outputs — VGA, DisplayPort and HDMI — make this an easy match for older monitors and new ones alike when running a Ryzen APU.
• Four SATA 6Gb/s ports plus six rear USB ports cover storage and peripherals without an add-in card.
• Realtek Gigabit LAN gives you a stable wired option whenever latency matters more than convenience.
• Micro-ATX dimensions of 9.6 x 9.6 inches fit standard mATX and ATX cases.

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: MSI
• Model: B550M PRO-VDH WIFI
• Condition: Brand new
• SKU: MOH-MSI-B550M-NEW-0903
