XIGMATEK Pano II LCD E-ATX PC Case | 9.18″ Full HD+ LCD Panel (1920×462) | 8× H22A ARGB PWM Fans · ARGB & PWM Remote Box | Curved Tempered Glass · Back-Plug (BTF) Support | 400mm GPU · 165mm Cooler · 7 Slots | USB 3.0 ×2 · USB-C | Black

XIGMATEK Pano II LCD E-ATX PC Case — Black

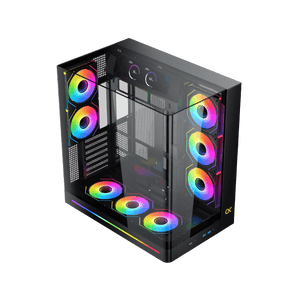

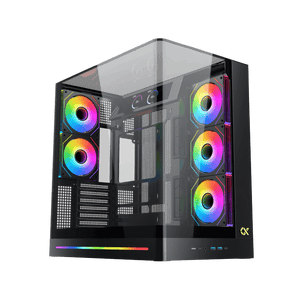

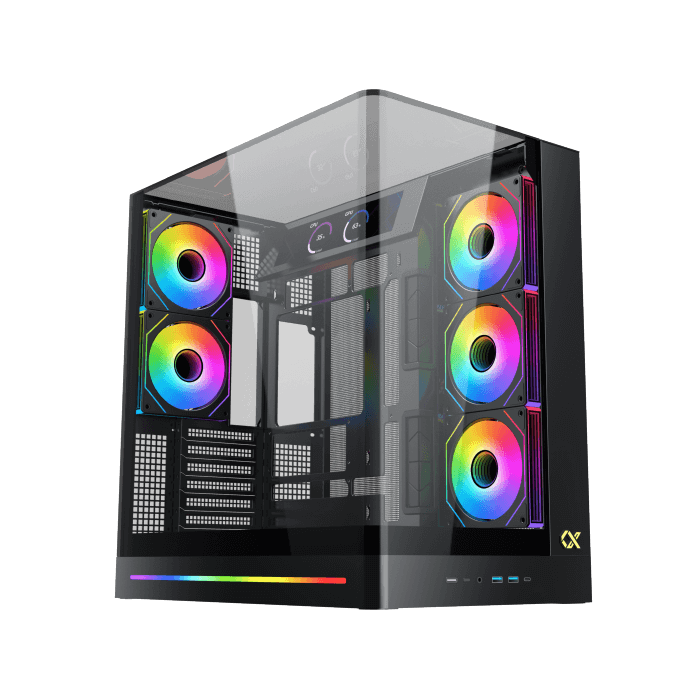

The Pano II LCD pairs a pillarless curved tempered glass corner with a 9.18″ Full HD+ secondary LCD panel and eight pre-installed H22A ARGB PWM fans, so the airflow, the lighting and the second screen are all sorted before you fit a single component. Back-plug motherboard support keeps the cable side completely hidden. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Motherboard support: E-ATX (≤ 285 mm) · ATX (supports back-plug) · Micro-ATX (supports back-plug) · Mini-ITX
• Dimensions: 447 × 285 × 466 mm (L × W × H)
• Material: Steel chassis with single-piece curved tempered glass

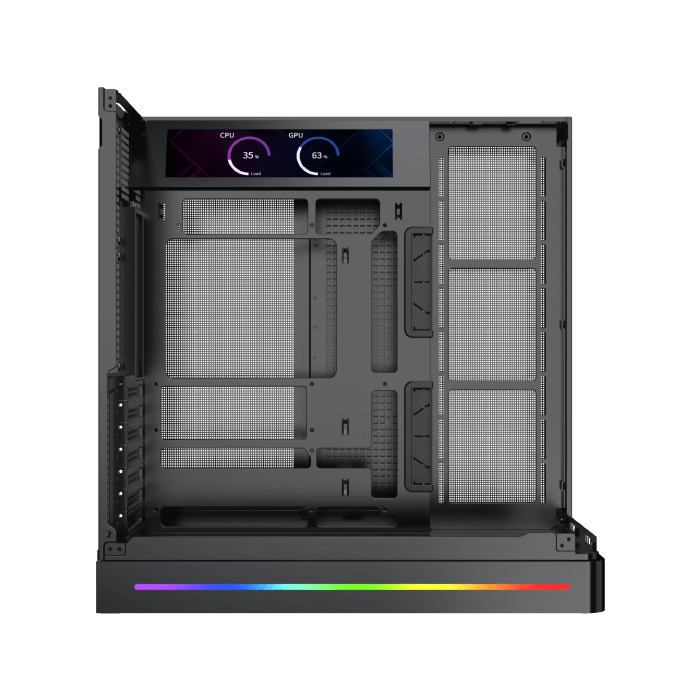

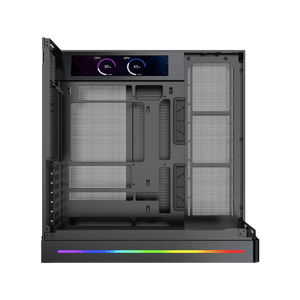

• Secondary display: 9.18″ magnetic LCD panel, Full HD+ 1920 × 462, HDMI + USB power, duplicate or extend mode on Windows 10 / 11
• Pre-installed fans: 6 × H22A Reverse + 2 × H22A (8 fans total)
• Lighting & control: ARGB & PWM remote control box (5 V: 40 W max · 12 V: 36 W max)
• Fan support: Side: 120 mm × 3 · Bottom: 120 mm × 3 · Rear: 120 mm × 2
• Radiator support: Side: 240 / 360 mm · Rear: 120 mm
• Max GPU length: 400 mm (supports horizontal or vertical GPU installation)
• Max CPU cooler height: 165 mm
• Max PSU length: 165 mm (standard PS2 ATX PSU)
• Expansion slots: 7 standard slots
• Drive bays: 3.5″ × 2 & 2.5″ × 1, or 3.5″ × 1 & 2.5″ × 2, or 2.5″ × 3
• Front I/O: USB 3.0 × 2 · USB Type-C · HD audio · power and reset buttons
• Colour: Black
• Manufacturer code: EN48876 (EAN 4711409548876)

⚡ Key Features

• A 9.18″ Full HD+ (1920 × 462) magnetic LCD panel ships in the box — mount it on the chassis and run it as a genuine second Windows display for temperatures, music or chat.

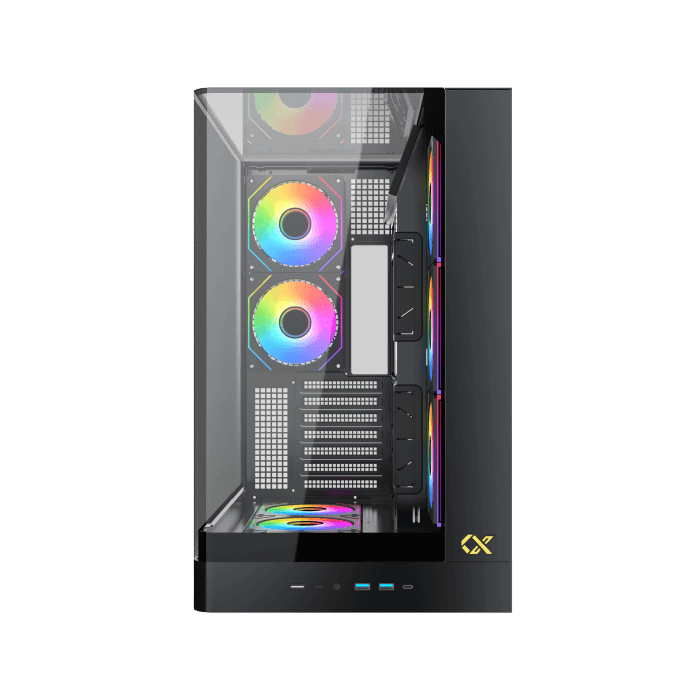

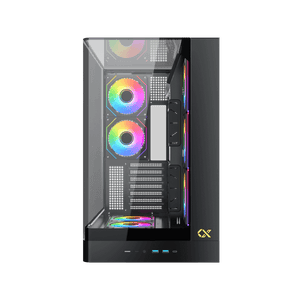

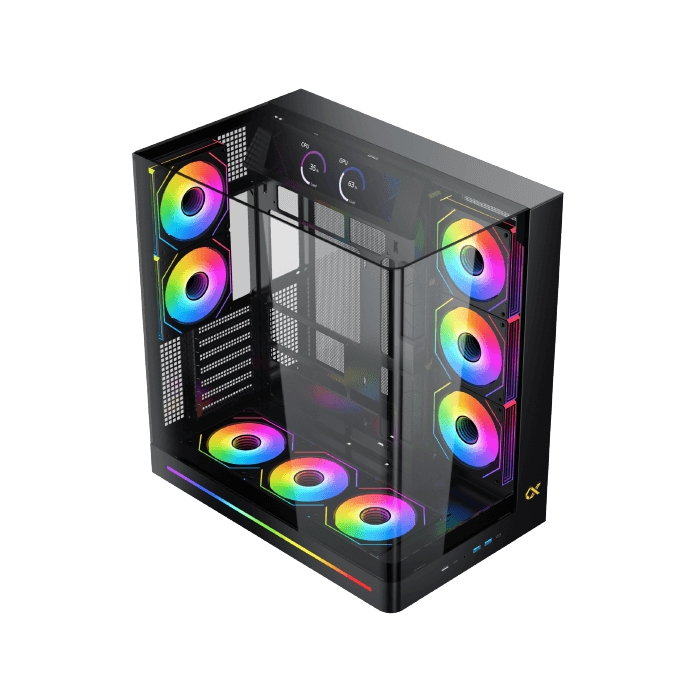

• Eight H22A fans come pre-installed: six reverse-blade units feeding the side and bottom intakes plus two rear exhausts, so the airflow path is complete out of the box.
• The bundled ARGB & PWM remote control box drives lighting and fan speed together without eating your motherboard headers.

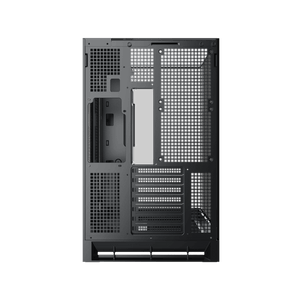

• Back-plug (BTF) ATX and Micro-ATX board support keeps every cable behind the tray for a genuinely clean panoramic view.

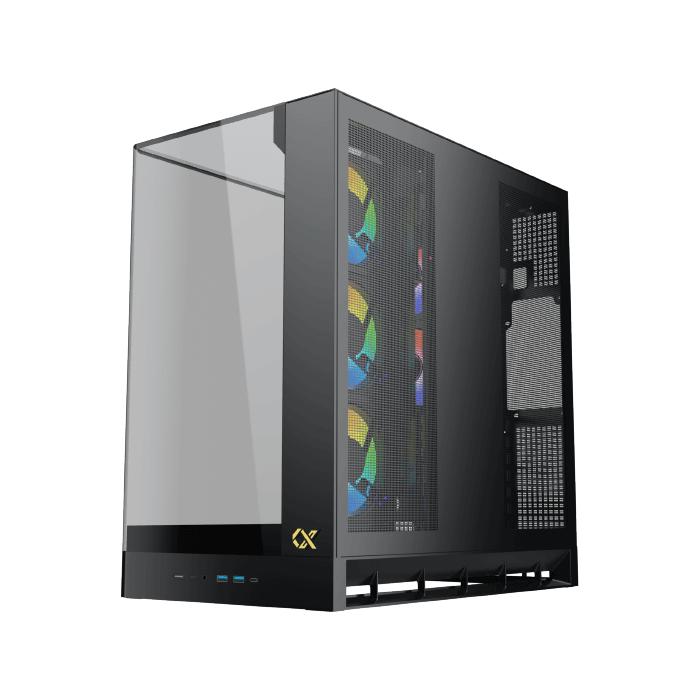

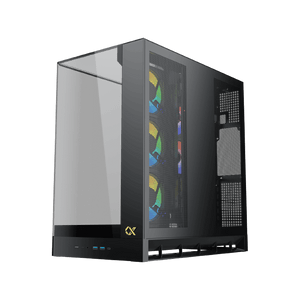

• A single-piece curved tempered glass panel wraps the front and side corner with no pillar in the way — the whole build is on show.
• Room for a 400 mm graphics card, mounted horizontally or vertically, so a full-length flagship GPU fits either way.
• Side 240/360 mm and rear 120 mm radiator mounts let you run a 360 AIO while keeping the glass corner unobstructed.
• Flexible drive mounting takes up to two 3.5″ drives plus a 2.5″ SSD, or three 2.5″ SSDs, on flip-cover brackets.
• Front I/O includes USB Type-C alongside two USB 3.0 ports and HD audio, so modern peripherals plug straight in.

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: XIGMATEK
• Model: Pano II LCD
• Condition: Brand new
• SKU: CASE-XIGMAT-PANO-NEW-1754
