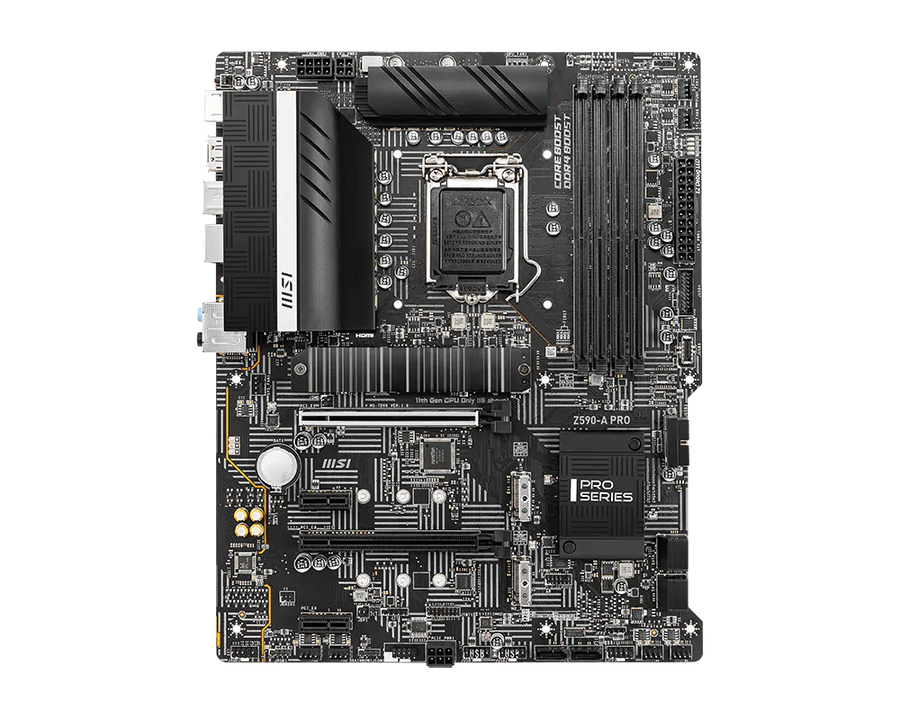

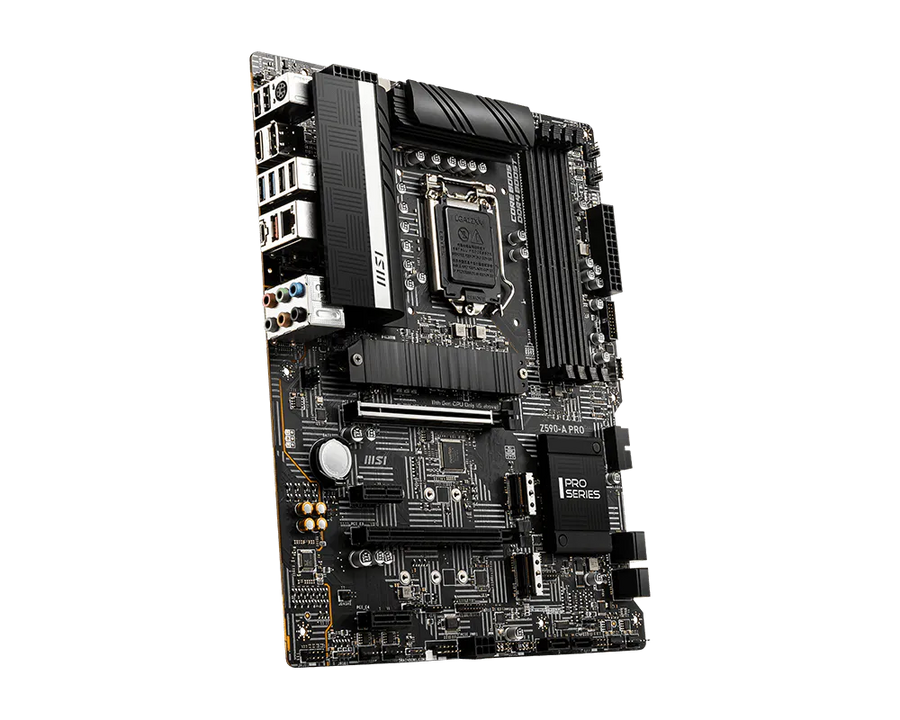

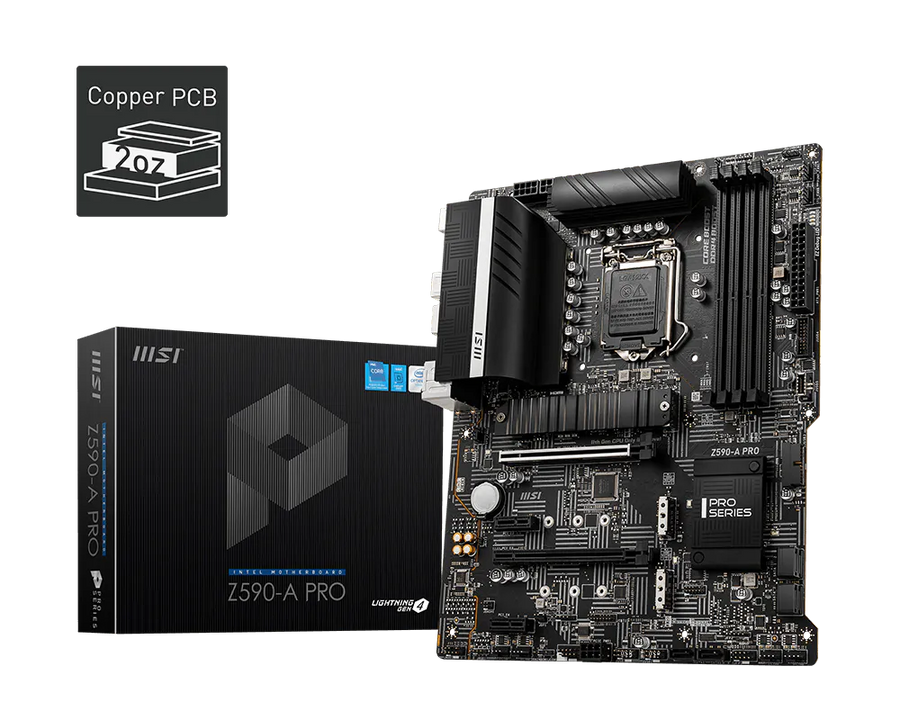

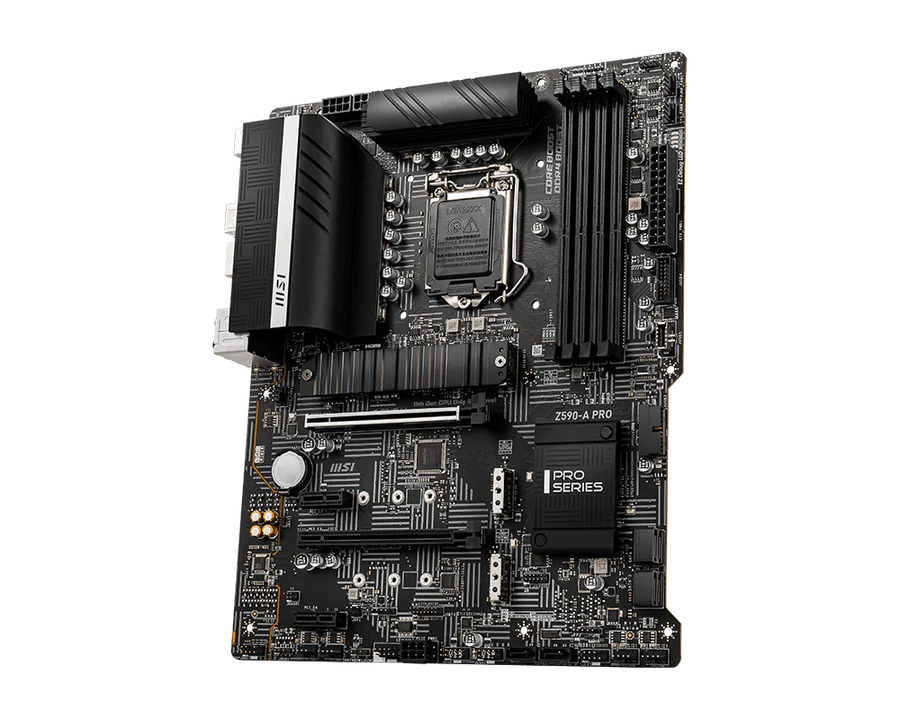

MSI Z590-A PRO Motherboard

MSI Z590-A PRO Motherboard

A full ATX Z590 board for 11th and 10th generation Intel Core processors, with four DDR4 slots, three M.2 sockets and six SATA ports for a build that needs real storage capacity. PCIe 4.0 support on 11th generation chips and Intel 2.5G LAN keep it current. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Socket: Intel Socket 1200
• Chipset: Intel Z590
• CPU support: 11th Gen and 10th Gen Intel Core, Pentium Gold and Celeron processors
• Memory: 4 x DIMM slots, DDR4, up to 128 GB
• Memory speed: Up to 5333 MHz (1DPC 1R overclocking)
• Expansion slots: 2 x PCIe x16 slots (x16/x4), PCIe 4.0 on the primary slot with 11th Gen CPUs, 2 x PCIe 3.0 x1
• Storage: 3 x M.2 slots (1 x PCIe 4.0, 2 x PCIe 3.0), 6 x SATA 6Gb/s
• Display outputs: 1 x HDMI 2.0b with HDR (up to 4K 60Hz), 1 x DisplayPort 1.4 (up to 4K 60Hz)
• Rear USB: 1 x USB 3.2 Gen 2x2, 1 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0
• LAN: Intel I225-V 2.5Gbps LAN controller
• Audio: Realtek ALC897 Codec, 7.1-channel
• Form factor: ATX, 30.5cm x 24.4cm

⚡ Key Features

• Supports both 11th and 10th generation Intel Core processors on Socket 1200, so an existing chip transfers straight over.
• The primary x16 slot runs PCIe 4.0 with an 11th generation processor, doubling graphics and storage bandwidth over PCIe 3.0.
• Three M.2 slots, one of them PCIe 4.0, let a fast boot drive sit alongside two more NVMe drives with no adapters.
• Six SATA 6Gb/s ports are unusually generous at this level and suit large game libraries and media storage.
• Four DDR4 slots take up to 128 GB and overclock as high as 5333 MHz on a single-rank, one-DIMM-per-channel setup.
• Intel I225-V 2.5Gbps LAN gives 2.5x gigabit throughput with Intel's driver stability for online play.
• USB 3.2 Gen 2x2 on the rear panel reaches 20Gbps for high-speed external SSDs.
• HDMI 2.0b with HDR and DisplayPort 1.4 both drive 4K 60Hz displays from Intel integrated graphics.
• Realtek ALC897 7.1-channel audio covers surround headsets and speaker setups without a sound card.

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: MSI
• Model: Z590-A PRO
• Condition: Brand new
• SKU: MOH-INTEL-Z590-NEW-1836
