MSI PRO B760M-P DDR4 Motherboard

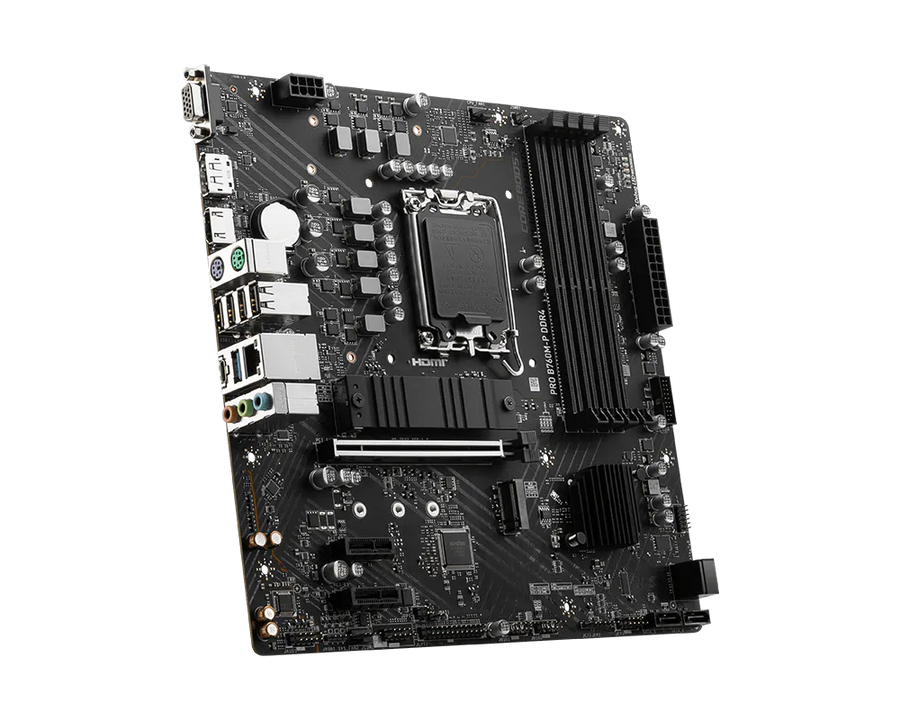

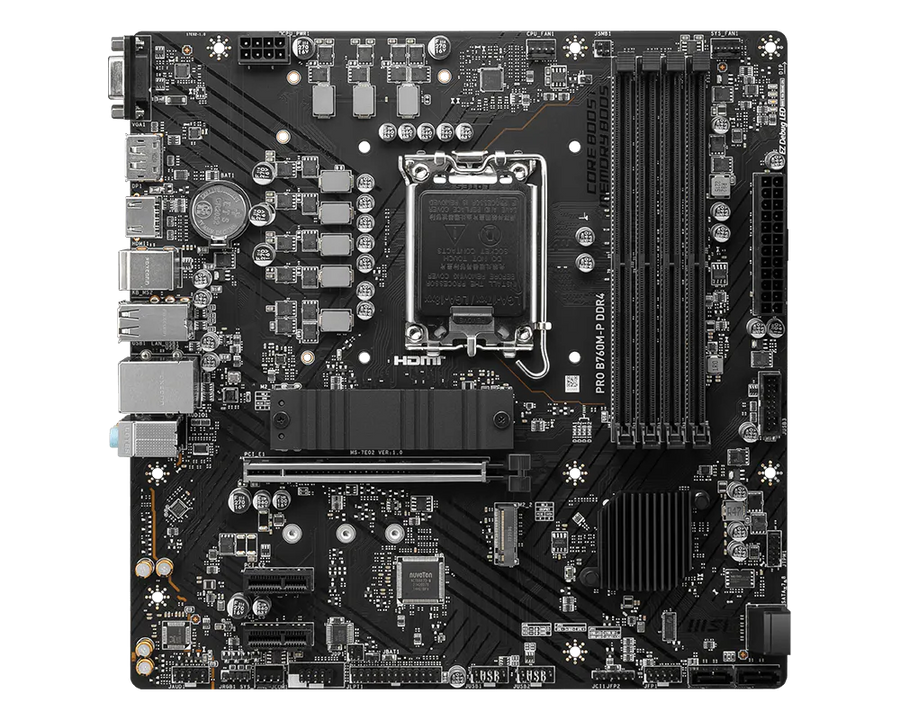

MSI PRO B760M-P DDR4 Micro-ATX Motherboard

A straightforward, well-equipped LGA 1700 board for 12th to 14th Gen Intel Core builds that keeps costs down with DDR4 memory while still offering two PCIe 4.0 M.2 sockets and rear USB-C. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Brand: MSI
• Model: PRO B760M-P DDR4
• Socket: Intel LGA 1700
• Chipset: Intel B760
• CPU Support: Intel Core 14th / 13th / 12th Gen, Intel Pentium Gold and Celeron Processors
• Form Factor: Micro-ATX (243.84 mm × 243.84 mm)
• Memory: 4× DDR4 DIMM, up to 128GB
• Memory Speed: DDR4-2133 to DDR4-3200 (JEDEC), up to 4800+ MHz (OC)
• Expansion Slots: 1× PCIe 4.0 x16 (CPU), 2× PCIe 4.0 x1 (chipset)
• M.2 Storage: 2× M.2 (2280 / 2260 / 2242) — M.2_1 PCIe 4.0 x4 (CPU), M.2_2 PCIe 4.0 x4 / SATA mode (chipset)
• SATA: 4× SATA 6Gb/s

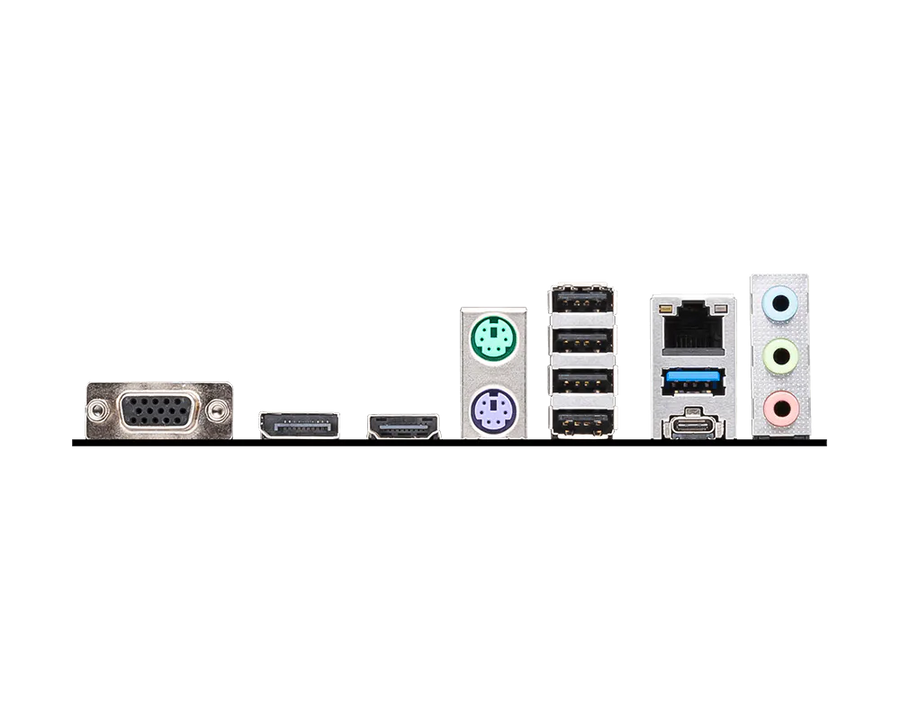

• Rear USB: 1× USB 10Gbps Type-C, 1× USB 5Gbps Type-A, 4× USB 2.0
• Video Outputs: 1× HDMI 1.4, 1× DisplayPort 1.4, 1× VGA
• LAN: Realtek RTL8111H Gigabit LAN
• Audio: Realtek ALC897 Codec, 7.1-Channel High Definition Audio
• Colour: Black

⚡ Key Features

• LGA 1700 socket supports Intel Core 14th, 13th and 12th Gen processors for a wide choice of CPUs at every budget.
• Four DDR4 slots accept up to 128GB, letting you carry over existing memory and put the savings into the GPU.
• Two PCIe 4.0 x4 M.2 sockets give you a fast NVMe boot drive plus a second high-speed drive, with the second slot also accepting a SATA M.2.
• PCIe 4.0 x16 slot wired directly to the CPU delivers full bandwidth to a modern graphics card.
• Rear USB 10Gbps Type-C handles fast external SSDs and modern USB-C peripherals without an adapter.
• Four SATA 6Gb/s ports keep hard drives and 2.5in SSDs in the build for bulk storage.
• Triple video output (HDMI 1.4, DisplayPort 1.4 and VGA) drives modern and older displays from Intel integrated graphics.
• Realtek ALC897 7.1-channel audio covers headsets, speakers and surround setups.
• Micro-ATX layout fits standard mid-tower and compact chassis with room to route cables cleanly.

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: MSI
• Model: PRO B760M-P DDR4
• Condition: Brand new
• SKU: MOH-MSI-B760M-NEW-1635
