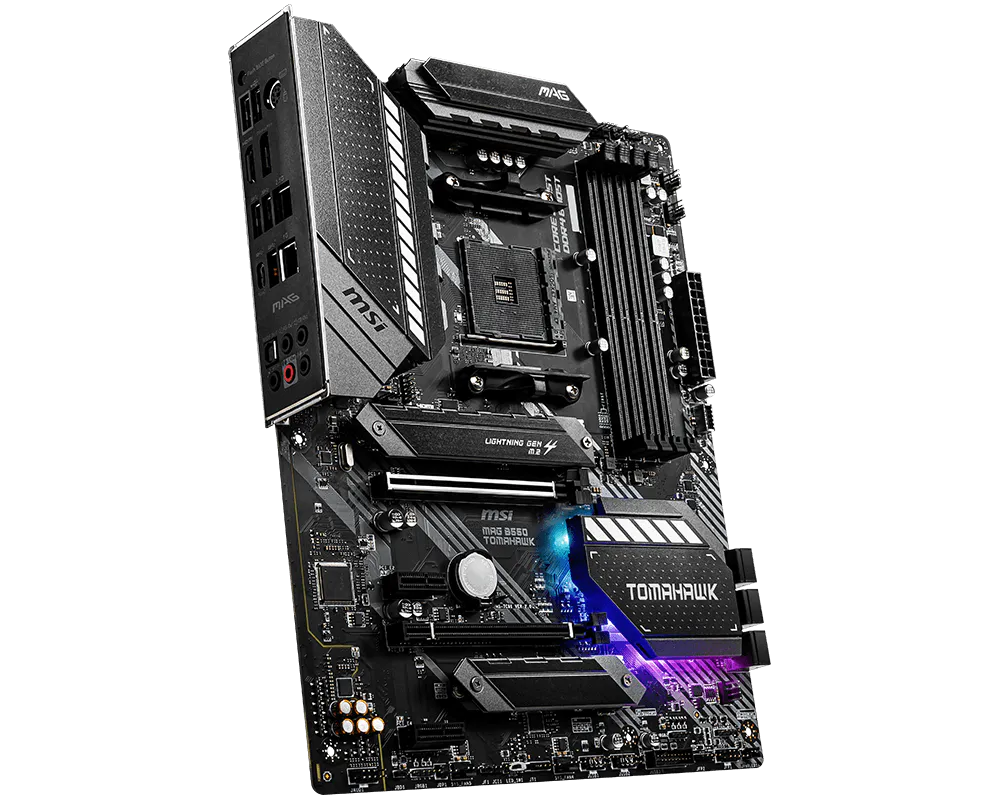

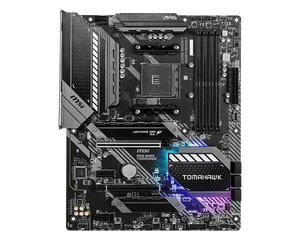

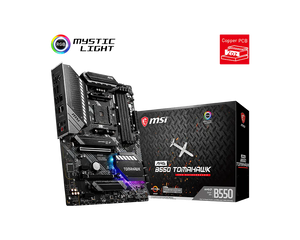

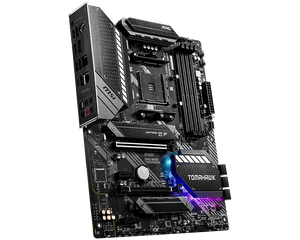

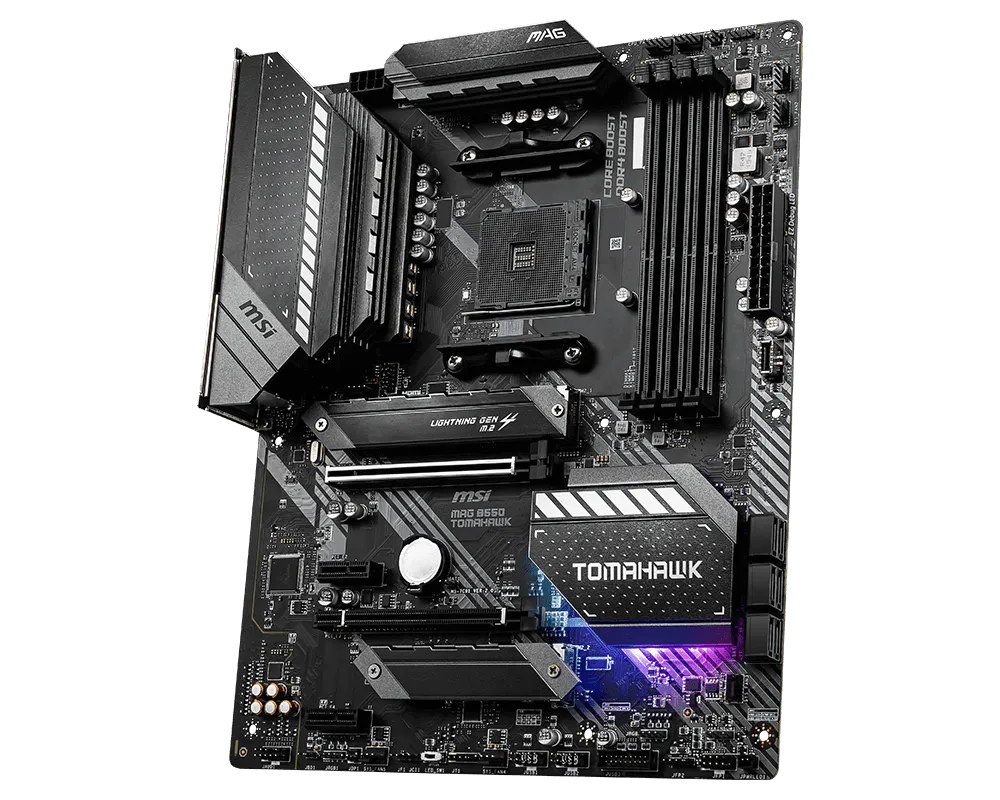

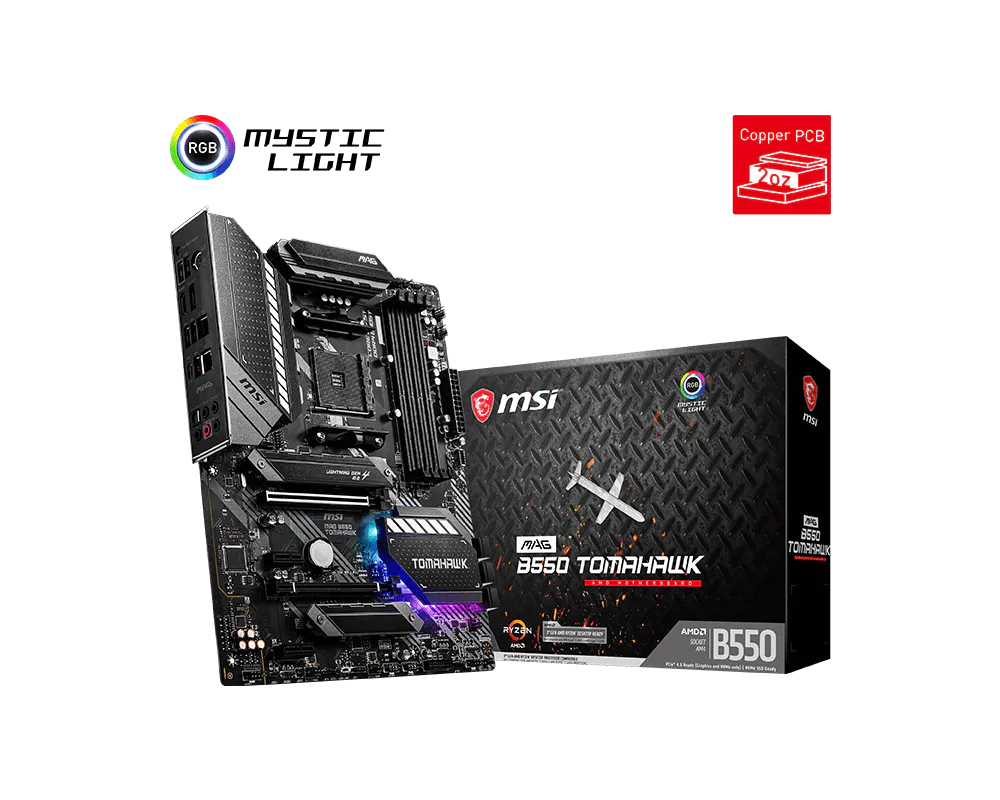

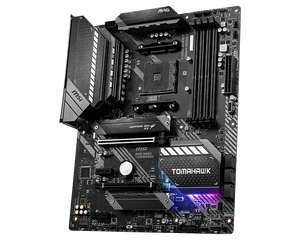

The MSI MAG B550 Tomahawk is one of the most popular and critically acclaimed B550 motherboards ever made — a legendary value champion from MSI's military-themed MAG (MSI Arsenal Gaming) series. Built on AMD's B550 chipset and engineered with military-grade durability, this ATX motherboard has earned its reputation as a top recommendation for AMD Ryzen builds across countless reviews and PC building communities.

Compatible with AMD Ryzen 3000, 4000 G-Series, and 5000 Series processors (including the legendary Ryzen 7 5800X3D and Ryzen 9 5950X), the MAG B550 Tomahawk combines a 10+2+1 Duet Rail Power System with 80A SPS, Dual LAN connectivity, 2oz thickened copper PCB, and Lightning Gen 4 M.2 — making it a smart-value choice that punches well above its weight class.

⚡ 10+2+1 Duet Rail Power System (80A SPS)

Robust power delivery for high-core-count AMD CPUs:

• 10+2+1 Duet Rail Power Design with 80A Smart Power Stage (SPS)
• Digital PWM IC for precise voltage control
• Core Boost Technology for sustained heavy gaming loads
• Premium 6-Layer PCB with 2oz thickened copper (server-grade)
• High-quality digital power IC for extreme conditions
• Solid Pin Power Connectors for stable transmission
• Engineered to handle Ryzen 9 5950X, 5800X3D at full boost without throttling

💾 DDR4 5100+ MHz Memory Support

High-speed memory with overclocking headroom:

• 4× DDR4 DIMM slots — Up to 128GB total capacity
• DDR4 5100+ MHz (OC) support
• A-XMP profile support — One-click memory tuning
• MSI OC LAB certified A-XMP profiles
• DDR4 Boost with isolated DIMM circuit for clean signaling
• Dual Channel Memory Architecture

🚀 PCIe 4.0 + Dual M.2 Lightning Gen 4

Future-proof expansion and lightning-fast storage:

• 1× PCIe 4.0 x16 slot for next-gen graphics cards (Steel Armor)
• 1× PCIe 3.0 x16 slot (x4 mode)
• 2× PCIe 3.0 x1 slots
• 2× M.2 NVMe slots:
• ↳ M2_1: PCIe 4.0/3.0 x4 (supports up to 22110 form factor)
• ↳ M2_2: PCIe 3.0 x4
• M.2 Shield Frozr thermal solution prevents throttling
• 6× SATA 6Gb/s for additional storage
• Resizable BAR support for improved GPU performance

🌐 Dual LAN — 2.5G + 1G — Premium Networking

Two ethernet ports for advanced networking setups:

• Realtek RTL8125B 2.5 Gigabit Ethernet
• Realtek RTL8111H 1 Gigabit Ethernet
• Dual LAN setup — Perfect for streaming, content creation, network bridging
• LAN Manager for traffic prioritization
• Note: This model uses wired LAN only (no built-in WiFi)

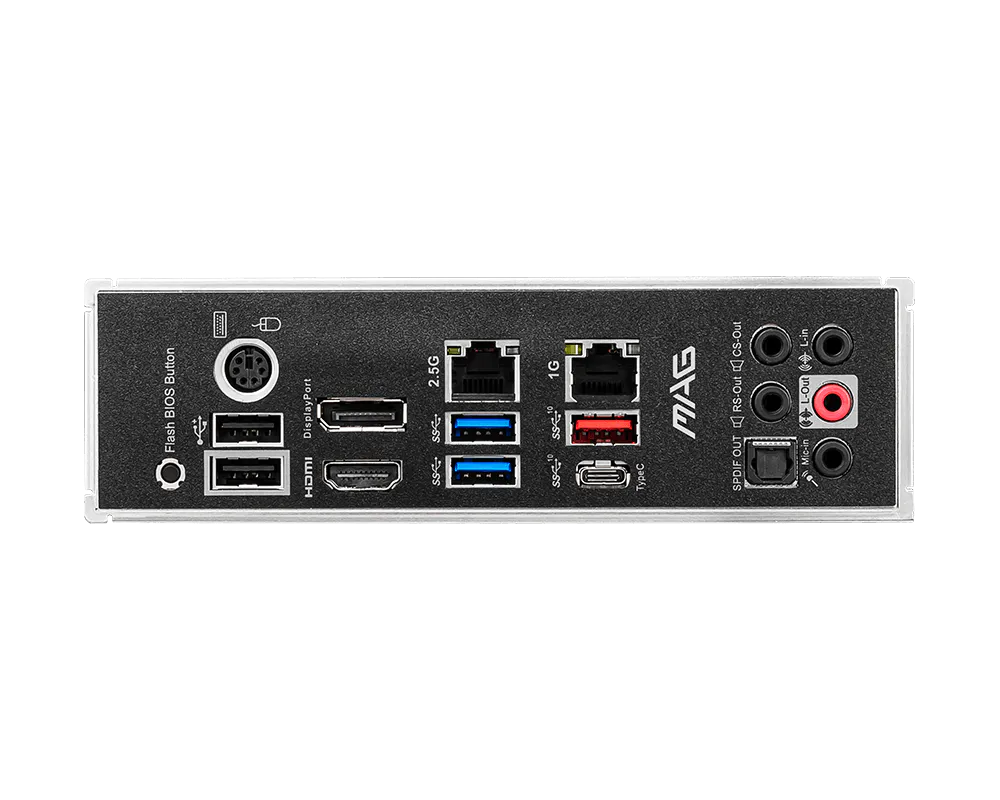

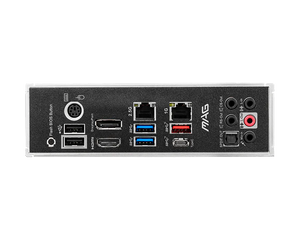

🔌 AMD Turbo USB 3.2 Gen 2 — 10Gbps

Fast USB connectivity:

• 1× USB 3.2 Gen 2 Type-C (rear, 10 Gbps)
• 1× USB 3.2 Gen 2 Type-A (rear, 10 Gbps)
• 2× USB 3.2 Gen 1 Type-A ports (rear)
• 2× USB 2.0 Type-A ports (rear)
• USB Front Type-C support for modern cases
• HDMI + DisplayPort (for APU support)

🌡️ Premium Thermal Solution

Military-grade cooling for sustained performance:

• Extended VRM Heatsink with enlarged surface area
• 7W/mK MOSFET thermal pads
• Additional choke thermal pads for VRM stability
• M.2 Shield Frozr thermal solution for SSDs
• Chipset Heatsink for PCH cooling
• Smart Fan Control with PWM/DC auto-detection
• Dedicated Pump Fan header for AIO liquid cooling

🎵 Audio Boost

Premium audio for an immersive experience:

• Realtek ALC1200 codec
• 7.1-Channel HD Audio
• Audio Boost with isolated audio circuit
• Premium audio capacitors
• EMI shielding for cleaner sound

🎨 Mystic Light RGB

• MSI Mystic Light RGB support
• 16.8 million colors with 29 lighting effects
• Mystic Light Extension pin-headers for additional RGB strips
• ARGB headers for addressable RGB devices
• Sleek military-themed black aesthetic

🛠️ Builder-Friendly Features

Designed for builders of all skill levels:

• Pre-installed I/O Shield for easier installation
• EZ DEBUG LED indicators (CPU, DRAM, VGA, BOOT)
• Steel Armor PCIe slot for heavy GPU support
• Click BIOS 5 with EZ and Advanced modes
• One-click overclocking presets
• Flash BIOS Button — Update BIOS without CPU/RAM
• Friendly user interface for entry-level builders

🛡️ MAG Series — Military-Grade Durability

Born through rigorous quality testing:

• Symbol of sturdiness and durability
• Rigorous quality testing for extreme conditions
• Server-grade 6-Layer PCB
• 2oz Thickened Copper for superior heat dissipation
• Long-lasting system stability
• Best choice for entry-level to mid-range gaming

🎯 Why MSI MAG B550 Tomahawk?

• ✅ Legendary value — One of the most recommended B550 boards ever
• ✅ 10+2+1 80A SPS VRM — Handles flagship Ryzen 9 5950X
• ✅ Dual LAN (2.5G + 1G) — Rare feature at this price
• ✅ Lightning Gen 4 M.2 with Shield Frozr
• ✅ 2oz thickened copper server-grade PCB
• ✅ Ryzen 5800X3D + 5950X compatible
• ✅ Military-grade durability — Built to last
• ✅ EZ Debug LED — Builder-friendly

Key Features

• AMD B550 Chipset — AM4 socket
• Compatible CPUs: AMD Ryzen 3000 / 4000 G-Series / 5000 Series (including 5800X3D, 5950X)
• Note: Not compatible with Ryzen 5 3400G & Ryzen 3 3200G
• ATX form factor
• 10+2+1 Duet Rail Power System with 80A SPS
• Digital PWM IC with Core Boost technology
• 6-Layer 2oz Copper PCB (server-grade)
• 4× DDR4 DIMM slots — Up to 128GB at 5100+ MHz (OC)
• A-XMP support (MSI OC LAB certified)
• DDR4 Boost with isolated DIMM circuit
• PCIe 4.0 x16 slot with Steel Armor
• 1× PCIe 3.0 x16 + 2× PCIe 3.0 x1
• 2× M.2 slots (Lightning Gen 4 x4 with Shield Frozr)
• M.2_1 supports up to 22110 form factor
• 6× SATA 6Gb/s ports
• Resizable BAR support
• Dual LAN: Realtek 2.5G + Realtek 1G Ethernet
• LAN Manager for traffic prioritization
• AMD Turbo USB 3.2 Gen 2 Type-C (10 Gbps, rear)
• USB 3.2 Gen 2 Type-A (rear, 10 Gbps)
• USB Front Type-C support
• HDMI + DisplayPort (for APU support)
• Realtek ALC1200 7.1-Channel HD Audio
• Audio Boost with isolated audio circuit
• Premium Thermal Solution (Extended VRM heatsink + M.2 Shield Frozr)
• EZ DEBUG LED indicators
• Pre-installed I/O Shield
• Steel Armor PCIe slot
• Mystic Light RGB with Extension pin-headers
• Click BIOS 5 for easy overclocking
• Flash BIOS Button (no CPU/RAM needed)
• Solid Pin Power Connectors
• SKU: MOH-MSI-MAGB550-OB-0064
