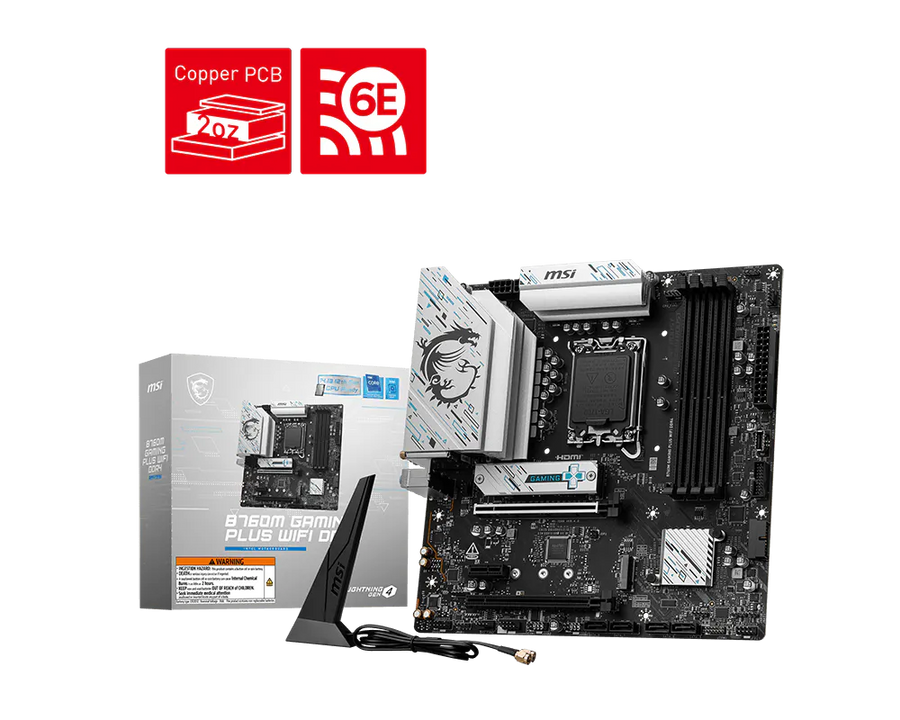

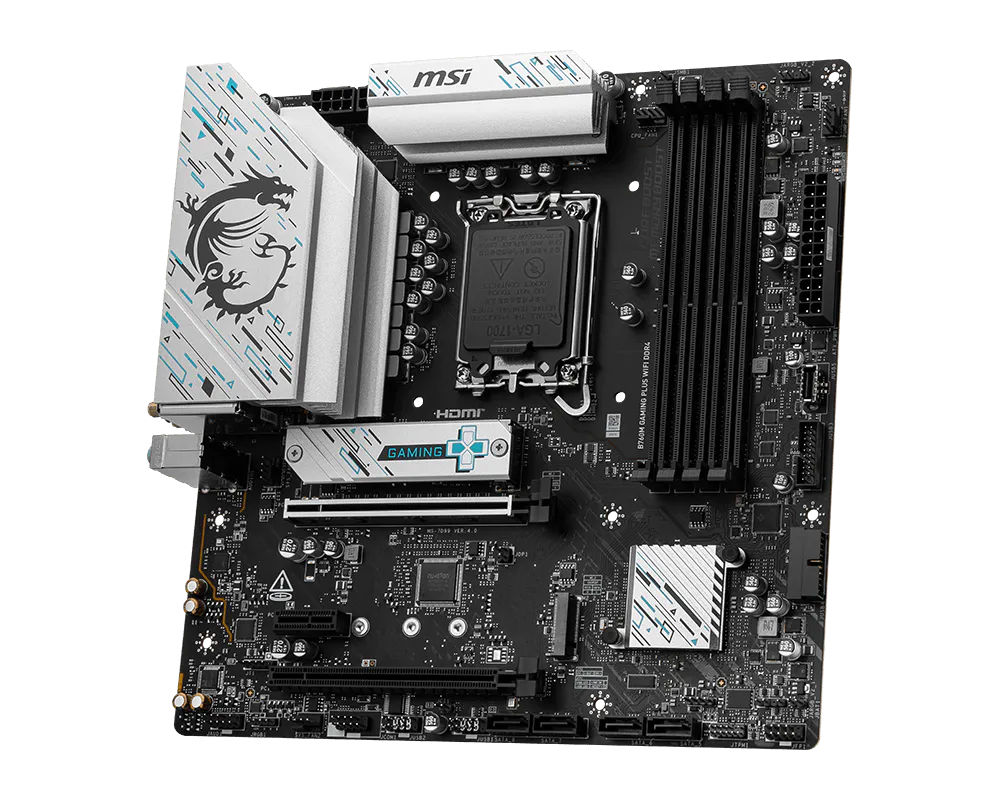

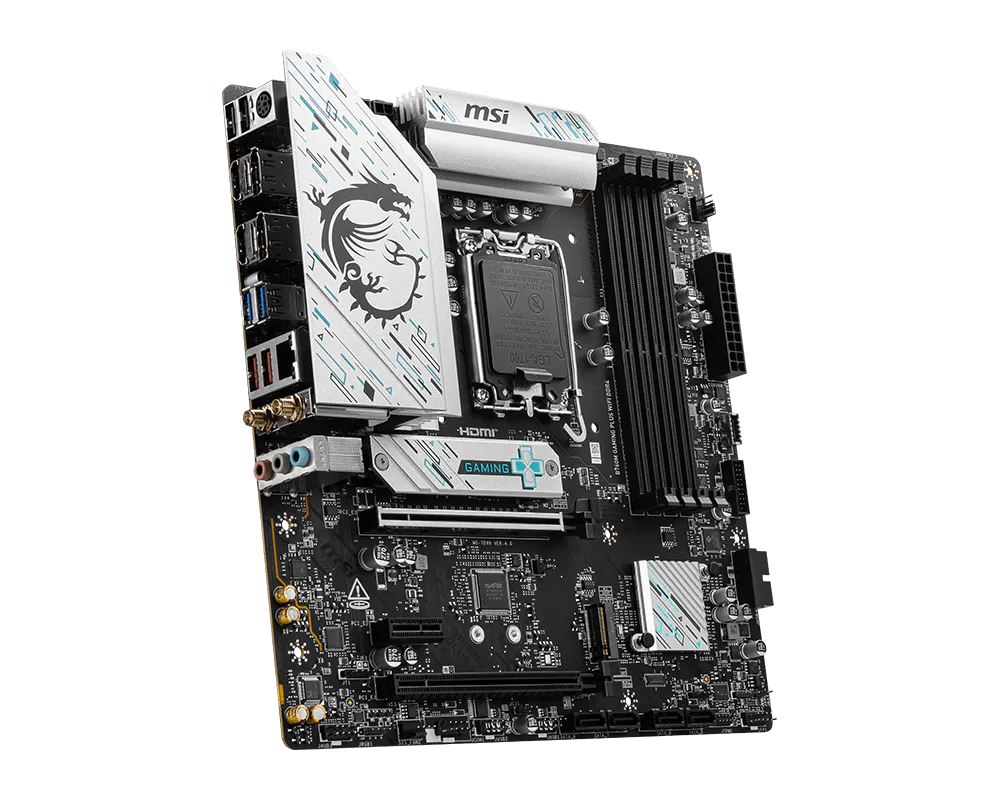

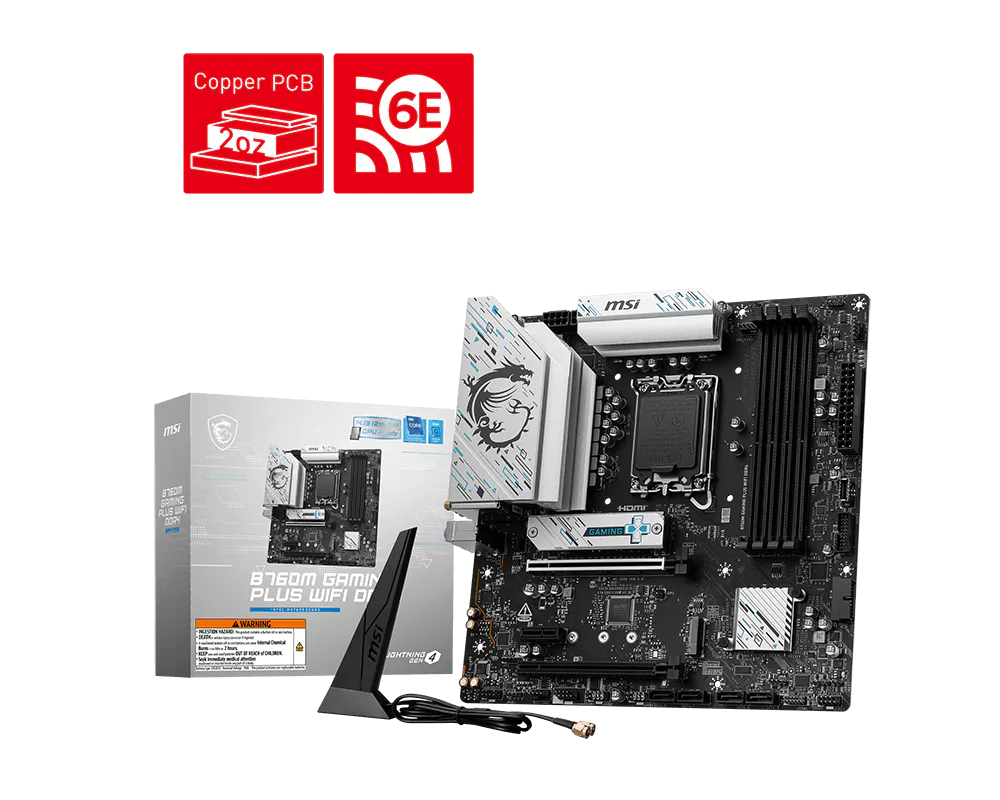

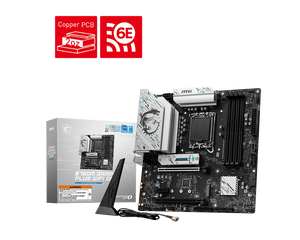

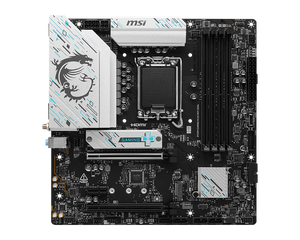

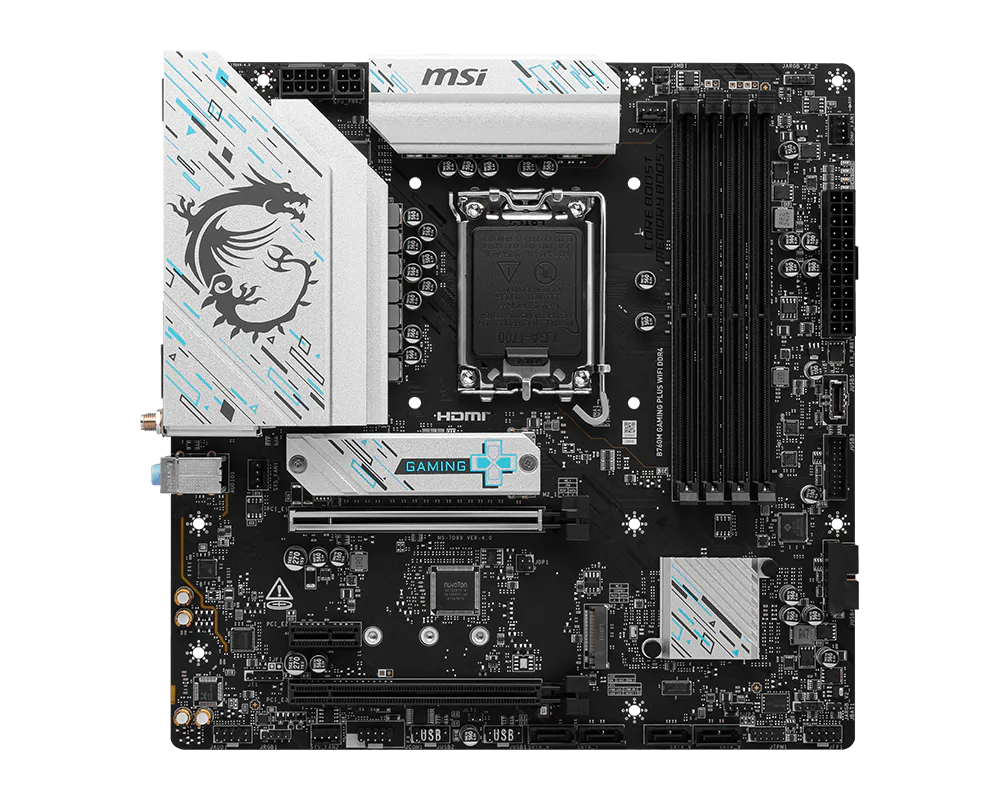

MSI B760M GAMING PLUS WIFI DDR4 Motherboard

MSI B760M GAMING PLUS WIFI DDR4 Micro-ATX Motherboard

A well-equipped B760 board for anyone moving to 12th, 13th or 14th Gen Intel while keeping their existing DDR4 memory: twelve-phase power for the CPU, two Gen4 M.2 slots, 2.5G wired networking and Wi-Fi 6E all on a compact Micro-ATX footprint. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Brand: MSI
• Model: B760M GAMING PLUS WIFI DDR4
• Chipset: Intel B760
• CPU socket: LGA 1700
• Supported processors: Intel Core 14th / 13th / 12th Gen, Pentium Gold and Celeron
• VRM: 12 power phases
• Memory: 4 × DDR4 DIMM, up to 128GB
• Memory speeds: Up to 5333 MHz (OC); 3200 / 2933 / 2666 / 2400 / 2133 JEDEC
• Expansion slots: 2 × PCIe x16, 1 × PCIe x1
• M.2 slots: 2 × M.2, both PCIe 4.0 x4
• SATA: 4 × SATA 6Gb/s
• LAN: Realtek RTL8125BG 2.5G
• Wireless: Intel Wi-Fi 6E with Bluetooth 5.3
• Audio: Realtek ALC897, 7.1-channel

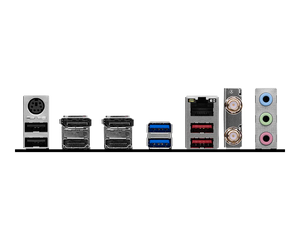

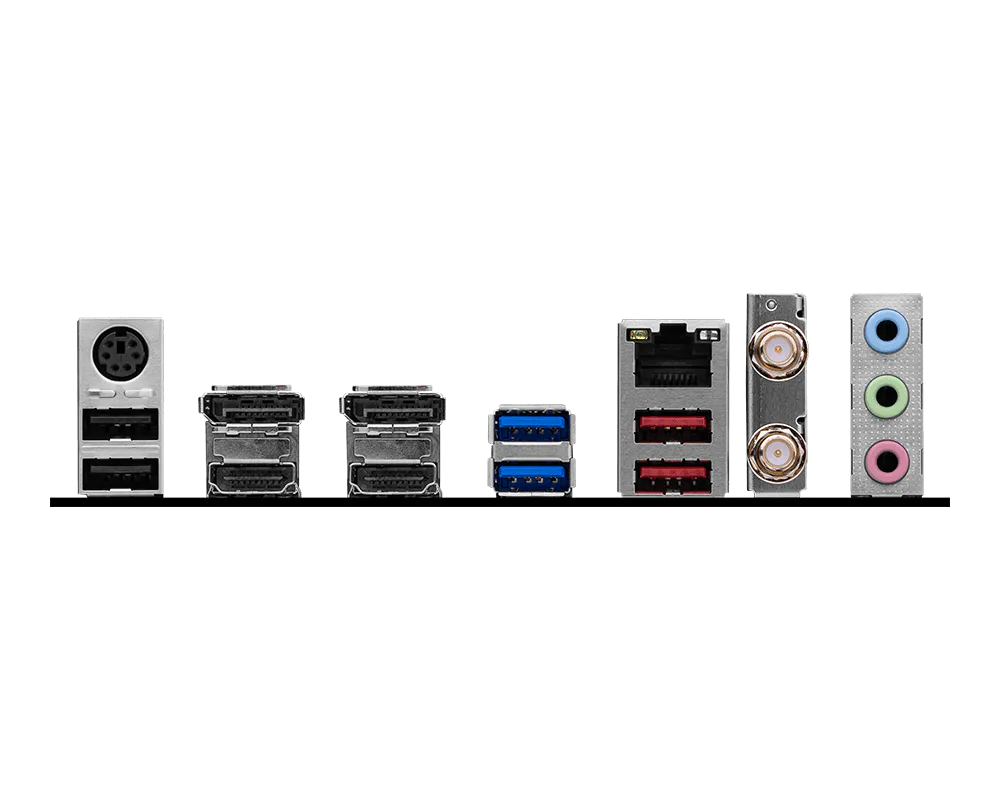

• Rear USB: 2 × USB 10Gbps Type-A, 2 × USB 5Gbps Type-A, 2 × USB 2.0
• Display outputs: 2 × HDMI 2.1 (4K 60Hz), 2 × DisplayPort 1.4 (4K 60Hz)
• RGB headers: 2 × addressable V2 RGB, 1 × standard RGB
• Form factor: Micro-ATX, 243.84mm × 243.84mm

⚡ Key Features

• Twelve-phase power delivery gives 13th and 14th Gen Core CPUs stable current under sustained all-core load
• Four DDR4 slots take up to 128GB and reach 5333 MHz with overclocking, so an existing DDR4 kit carries straight over to a new platform
• Two M.2 sockets both run at PCIe 4.0 x4 — no crippled second slot, so two fast NVMe drives can run at full speed
• Realtek 2.5G LAN plus Intel Wi-Fi 6E and Bluetooth 5.3 cover wired and wireless networking without an add-in card
• Four HDMI 2.1 and DisplayPort 1.4 outputs each drive 4K at 60Hz from an Intel iGPU, useful for multi-monitor work before a discrete GPU is fitted
• Two addressable V2 RGB headers and one standard RGB header let case fans and strips run from the board
• Micro-ATX at 243.84mm square, so it fits compact mATX chassis as well as full ATX cases
• Four SATA 6Gb/s ports keep existing SSDs and hard drives in the build

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: MSI
• Model: B760M GAMING PLUS WIFI DDR4
• Condition: Brand new
• SKU: MOH-INTEL-B760M-NEW-1744
