Lexar NM610PRO 500GB NVMe SSD

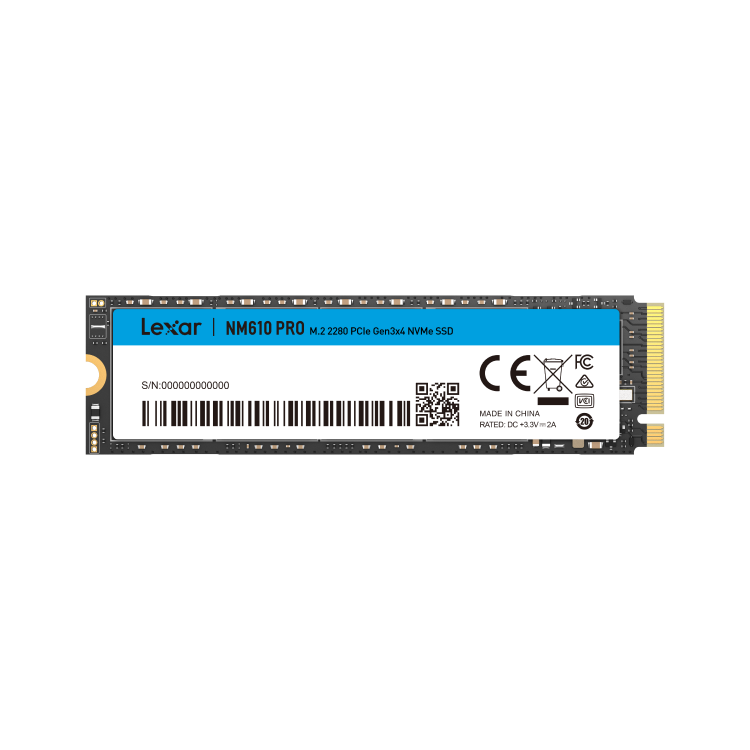

Lexar NM610PRO 500GB M.2 2280 PCIe Gen3 x4 NVMe SSD

Reads of up to 3,300 MB/s put this drive at the top of what PCIe Gen3 can deliver, so games, editing projects and Windows itself load about as fast as a Gen3 slot allows. It slots into the standard M.2 2280 position on almost any modern board. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Capacity: 500GB
• Form factor: M.2 2280
• Interface: PCIe Gen3 x4
• Protocol: NVMe 1.4 supported
• Sequential read: Up to 3,300 MB/s
• Sequential write: Up to 1,700 MB/s
• Endurance (TBW): 120 TB written
• DWPD: 0.535
• MTBF: 1,500,000 hours
• Dimensions: 80 x 22 x 2.45 mm
• Weight: 9 g
• Operating temperature: 0 °C to 70 °C
• Storage temperature: -40 °C to 85 °C
• Shock resistance: 1500G, 0.5 ms duration
• Vibration resistance: 10–2000 Hz, 1.5 mm, 20G
• Warranty: 3-year limited warranty
• Part number: LNM610P500G-RNNNU

⚡ Key Features

• Up to 3,300 MB/s sequential reads sit at the practical ceiling of a PCIe Gen3 x4 link, so level loads and project opens are near-instant
• Up to 1,700 MB/s sequential writes keep game installs, downloads and file copies moving quickly
• NVMe 1.4 support brings modern command handling and power management to a Gen3 platform
• M.2 2280 at just 2.45 mm thick and 9 g fits the standard M.2 slot in desktops, laptops and small-form-factor builds
• Rated for 120 TB written at 0.535 DWPD with a 1,500,000-hour MTBF

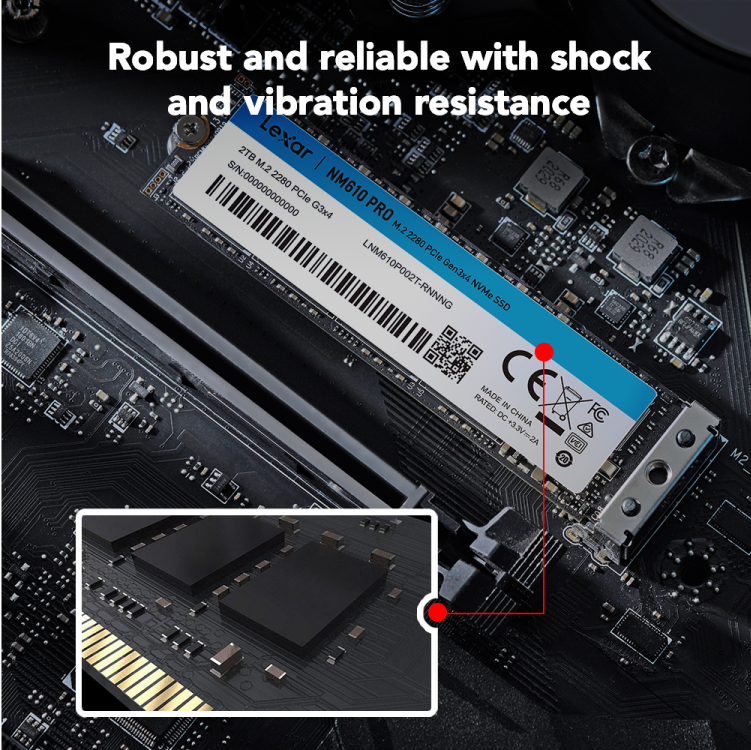

• 1500G shock and 10–2000 Hz vibration ratings suit portable and mobile systems
• Runs from 0 °C to 70 °C and stores down to -40 °C, so it copes with hot cases and cold storage alike
• Backed by a three-year limited warranty from Lexar

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: Lexar
• Model: NM610PRO (500GB, LNM610P500G)
• Condition: Brand new
• SKU: SSD-LEXAR-NM610PRO-NEW-1005
