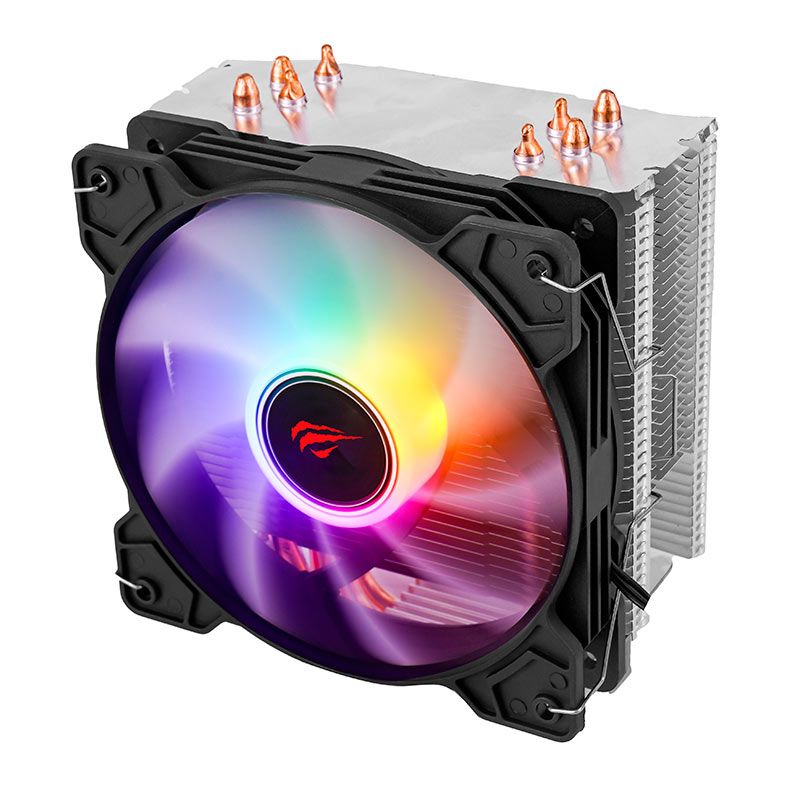

HAVIT Gamenote F2003 CPU Air Cooler

HAVIT Gamenote F2003 120mm RGB CPU Air Cooler

A compact RGB tower cooler that pairs 6mm copper heatpipes with a dense aluminium fin stack and a 120mm PWM fan, so mainstream Intel and AMD builds stay cool without the noise of a stock cooler. Static RGB lighting on the fan hub keeps the look consistent with the rest of your build. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Cooler type: Tower air cooler, aluminium fins with copper heatpipes
• Overall dimensions: 120 × 76 × 160 mm
• Heatpipes: 6 mm copper heatpipes

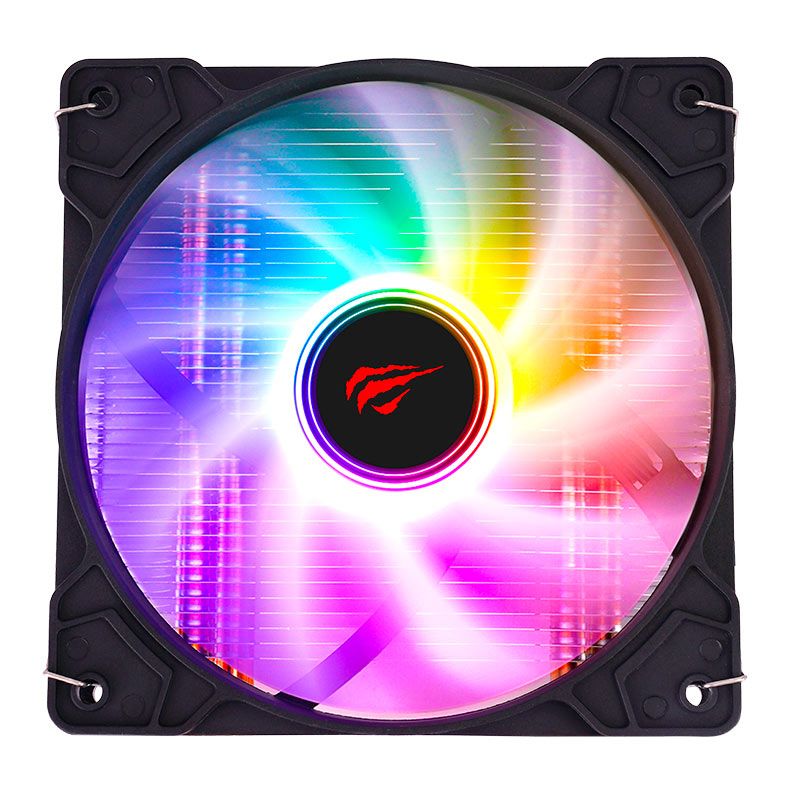

• Fan size: 120 × 120 × 25 mm
• Fan speed: 800 – 1700 RPM ±200
• Airflow: 61.5 CFM ±10%
• Noise level: 37.5 dB(A) max.
• Connector: 4-pin PWM
• Rated voltage: 12 V DC
• Rated current: 0.45 A
• Power consumption: 5.4 W
• TDP rating: 135 W
• Lighting: Static RGB LED
• Socket support: Intel LGA115X / LGA1200 / LGA1366 / LGA2011; AMD AM4

⚡ Key Features

• Handles up to a 135 W TDP, comfortable headroom for mainstream Intel and AMD Ryzen processors.
• 6 mm copper heatpipes move heat off the CPU quickly and spread it across the aluminium fin stack.
• 120 mm fan pushes 61.5 CFM, so the whole fin array gets airflow rather than just the centre.
• 4-pin PWM control lets the motherboard drop the fan to 800 RPM at idle and only ramp toward 1700 RPM under load.
• 37.5 dB(A) maximum means it stays civil even at full speed — a clear step down from a boxed stock cooler.
• Static RGB lighting on the fan runs straight off the fan header, so there is no extra controller to fit.
• 160 mm tall with a 120 × 76 mm footprint — check your case clearance before ordering.
• Bolt-through mounting hardware for Intel LGA115X/1200/1366/2011 and AMD AM4 is supplied in the box.
• HAVIT does not publish a public spec sheet for this model, so we list only what we can confirm. We would rather state nothing than quote a figure we cannot stand behind. If you need the exact heatpipe count or weight before ordering, contact us and we will check the unit in stock.

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: HAVIT
• Model: Gamenote F2003
• Condition: Brand new
• SKU: CPUC-HAVIT-F2003-NEW-1725
