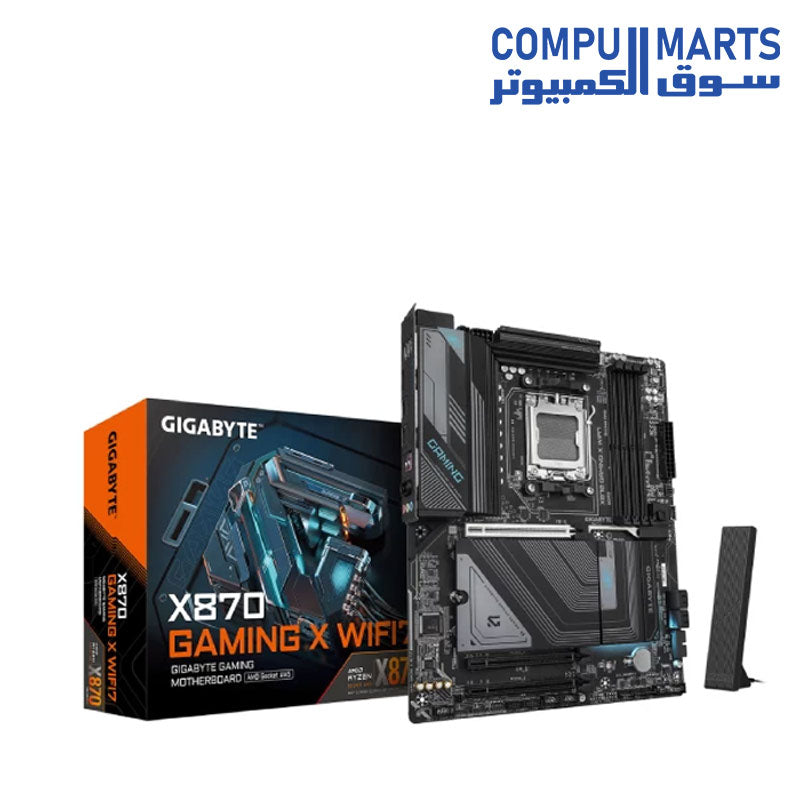

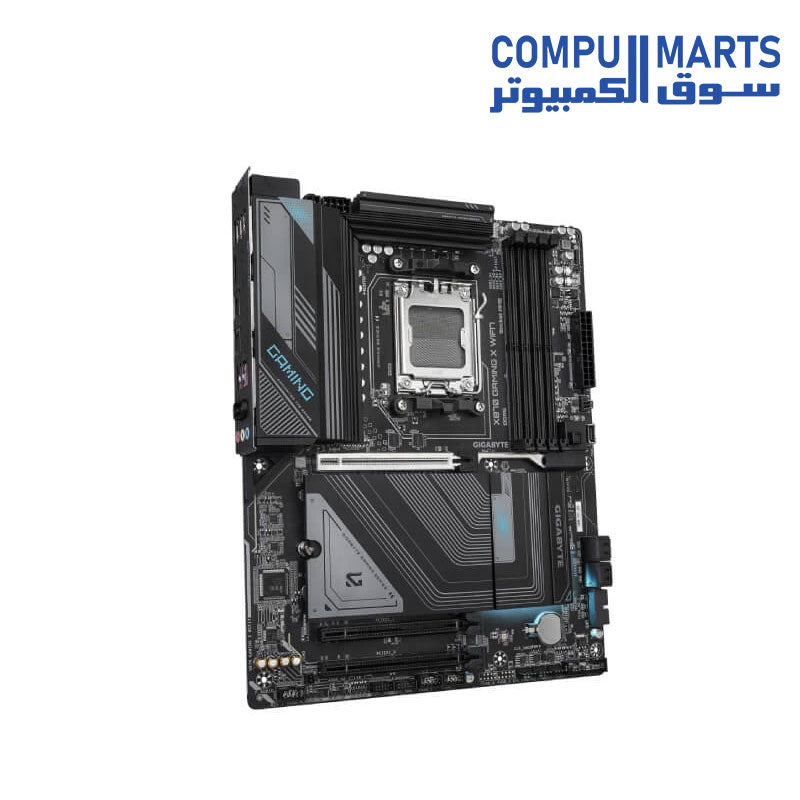

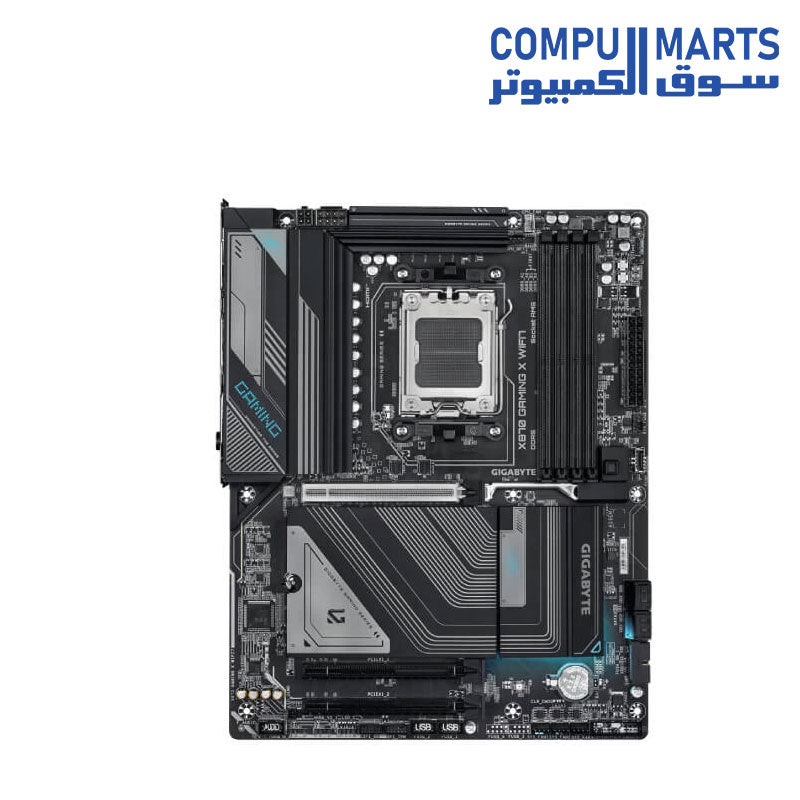

GIGABYTE X870 GAMING X WIFI7 Motherboard

GIGABYTE X870 GAMING X WIFI7 Motherboard

A full-size ATX AM5 board for AMD Ryzen 9000, 8000 and 7000 Series processors, with a 16+2+2 digital PWM power stage, PCIe 5.0 graphics and three M.2 sockets. Dual USB4 Type-C ports and Wi-Fi 7 put it at the front of current connectivity. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Socket: AMD Socket AM5
• Chipset: AMD X870
• CPU support: AMD Ryzen 9000 Series / Ryzen 8000 Series / Ryzen 7000 Series processors
• Memory: 4 x DDR5 DIMM sockets, dual channel, up to 256 GB (64 GB per DIMM)
• Memory speed: DDR5 4400 / 4800 / 5200 up to 8200 MT/s (O.C.)
• VRM: 16+2+2 phases digital PWM with 60A DrMOS, 8+8 phases parallel power design
• Expansion slots: 1 x PCIe 5.0 x16 (CPU, Ryzen 9000/7000), 2 x PCIe 3.0 x1 (chipset)
• Storage: 3 x M.2 Socket 3, 4 x SATA 6Gb/s
• Display outputs: 1 x HDMI (4096x2160@60 Hz), 2 x USB4 Type-C with DisplayPort output (3840x2160@240 Hz)

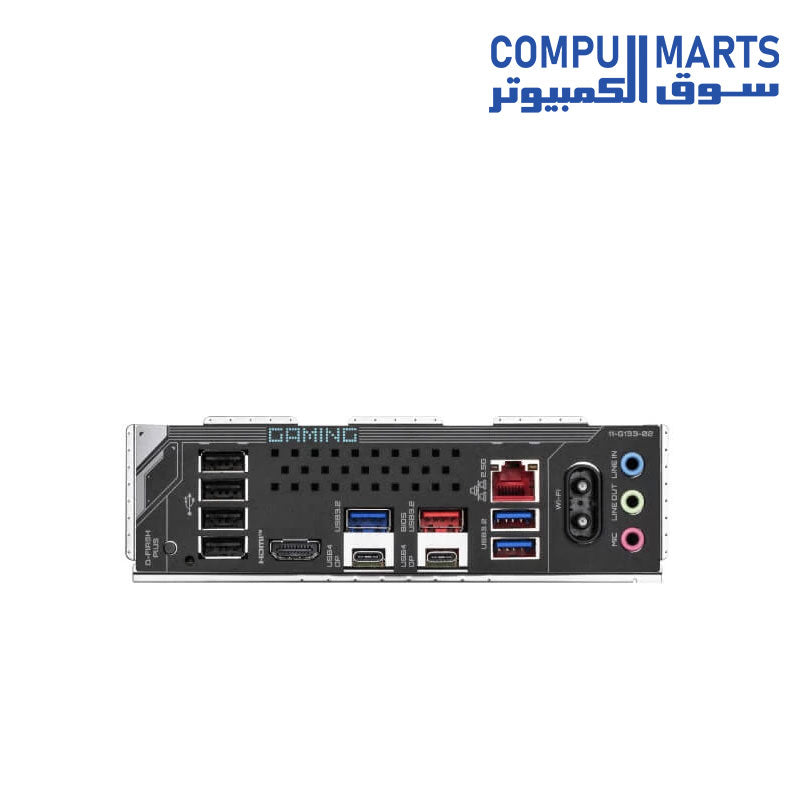

• Rear USB: 2 x USB4 Type-C, 1 x USB 3.2 Gen 2 Type-A, 1 x USB 3.2 Gen 1, 4 x USB 2.0/1.1
• LAN: Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)
• Wireless: Wi-Fi 7 (MediaTek MT7925 or Realtek RTL8922AE depending on PCB revision), Bluetooth 5.4
• Audio: Realtek Audio CODEC, 2/4/5.1/7.1-channel
• Form factor: ATX, 30.5cm x 24.4cm

⚡ Key Features

• A 16+2+2 phase digital PWM stage with 60A DrMOS holds voltage flat on 12- and 16-core Ryzen chips, which is what keeps sustained boost clocks from sagging.
• The CPU-attached PCIe 5.0 x16 slot delivers full next-generation bandwidth to the graphics card.
• Three M.2 sockets mean a boot drive, a game library and a scratch or capture drive can all run NVMe at once.
• Two USB4 Type-C ports carry data, DisplayPort video at up to 3840x2160@240 Hz and single-cable docking.
• Wi-Fi 7 with Bluetooth 5.4 brings wider channels and lower latency than Wi-Fi 6E for wireless play.
• Four DDR5 slots take up to 256 GB and tune to 8200 MT/s (O.C.) via EXPO or XMP.
• Realtek 2.5GbE wired networking gives 2.5x gigabit headroom for large downloads and low-ping sessions.
• Four SATA 6Gb/s ports keep bulk mechanical and SSD storage available alongside the NVMe drives.
• Standard ATX at 30.5cm x 24.4cm fits mid and full tower cases with room for airflow and cable routing.

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: GIGABYTE
• Model: X870 GAMING X WIFI7
• Condition: Brand new
• SKU: MOH-GIGABY-X870-NEW-0918
