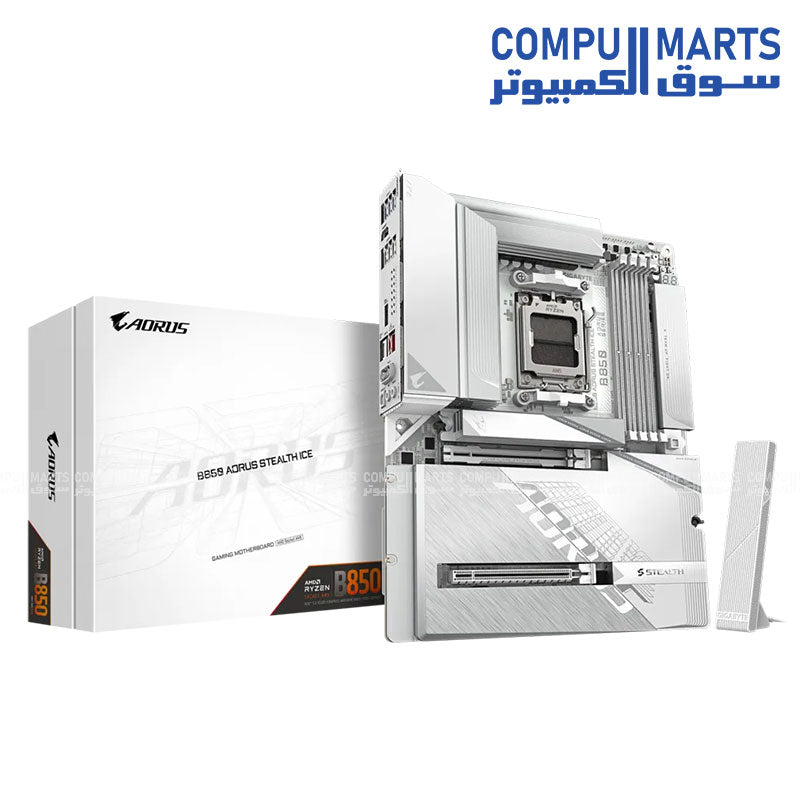

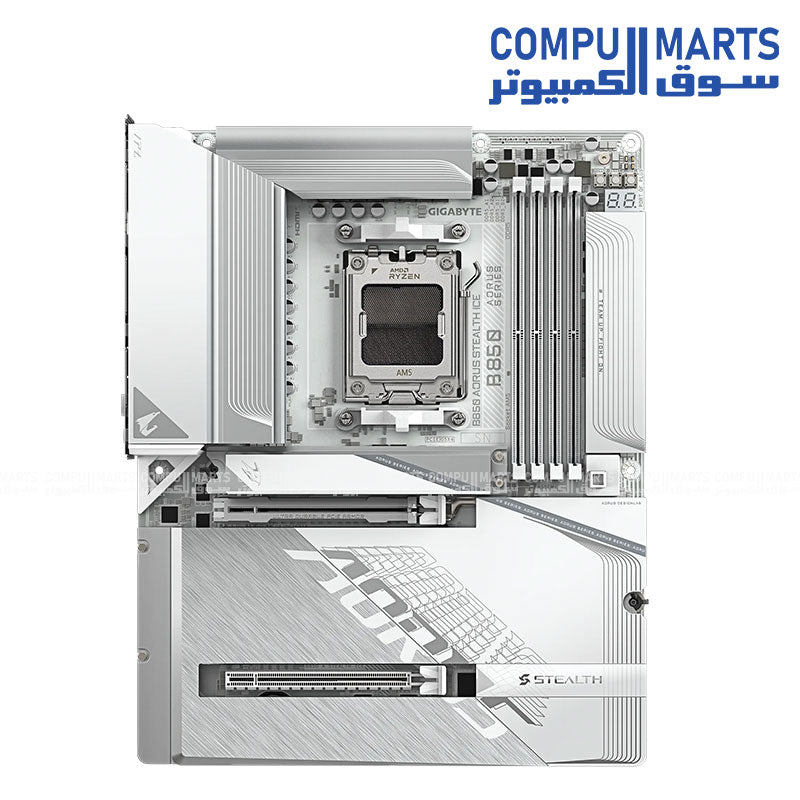

GIGABYTE B850 AORUS STEALTH ICE Motherboard

GIGABYTE B850 AORUS STEALTH ICE

A pure white AM5 gaming board built around the STEALTH hidden-connector layout, so your cables route behind the tray for a clean, uncluttered build. A 14+2+2 twin digital VRM, four M.2 slots and Realtek 5GbE plus Wi-Fi 7 give Ryzen 9000 and 7000 processors room to run at full speed. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Brand: GIGABYTE
• Model: B850 AORUS STEALTH ICE (Rev. 1.0)
• Chipset: AMD B850
• CPU Socket: AMD Socket AM5 — supports AMD Ryzen 9000, 8000 and 7000 Series processors
• Memory: 4 × DDR5 DIMM slots, dual channel, up to 256GB (64GB per module)
• Memory Speed: Up to DDR5 8200 MT/s (O.C.), with AMD EXPO and Intel XMP profile support
• Expansion Slots: 1 × PCIe 5.0 x16 (CPU), 1 × PCIe 4.0 x4 (chipset)
• M.2 Storage: 4 × M.2 sockets — 2 × PCIe 5.0 x4/x2 (CPU) and 2 × PCIe 4.0 x4/x2 (chipset)
• SATA: 2 × SATA 6Gb/s connectors
• VRM: 14+2+2 twin digital VRM design with 7+7 phase parallel power
• PCB: 6-layer PCB with 2X copper inner layers and mid-loss material
• LAN: Realtek 5GbE LAN (5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps)
• Wireless: Realtek Wi-Fi 7 RTL8922AE with Bluetooth 5.4
• Audio: Realtek ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel
• Rear I/O: 1 × HDMI, 1 × USB Type-C (USB 3.2 Gen 2), 2 × USB 3.2 Gen 2 Type-A, 4 × USB 3.2 Gen 1, 4 × USB 2.0/1.1, 1 × RJ-45, 1 × optical S/PDIF Out, 2 × audio jacks, 2 × antenna connectors (2T2R)
• Internal USB: 1 × USB Type-C header with USB 3.2 Gen 2x2 support
• Cooling: VRM Thermal Armor Advanced with heatpipe and 5 W/mK thermal pads, M.2 Thermal Guard L with backplate, M.2 Thermal Guard Ext.
• Form Factor: ATX, 30.5cm × 24.4cm
• Colour: White (Pure White UD Base Plate)

⚡ Key Features

• Socket AM5 support for Ryzen 9000, 8000 and 7000 series means one board carries you across three CPU generations.
• A 14+2+2 twin digital VRM with 7+7 parallel phases keeps voltage steady when a Ryzen 9 sits at sustained all-core boost.
• Two CPU-attached PCIe 5.0 x4 M.2 slots let the newest Gen5 SSDs run at full bandwidth without stealing graphics lanes.
• Four M.2 sockets in total, so a boot drive, a game library and two capture or scratch drives all fit inside the board.
• DDR5 up to 8200 MT/s (O.C.) with EXPO and XMP means one BIOS toggle unlocks your kit's rated speed.
• Realtek 5GbE LAN moves large game and video files across a home network far quicker than standard gigabit.
• Wi-Fi 7 with Bluetooth 5.4 gives low-latency wireless play and instant pairing for controllers and headsets.
• The STEALTH hidden-connector layout routes power and front-panel cables behind the motherboard tray for a genuinely tidy glass-panel build.
• M.2 EZ-Latch Plus and PCIe EZ-Latch Plus mean SSDs and graphics cards go in and come out without a screwdriver.
• VRM Thermal Armor Advanced and M.2 Thermal Guard heatsinks hold temperatures down during long sessions.
• The Pure White UD base plate and ALC1220 audio finish a clean-looking build with genuinely good onboard sound.

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: GIGABYTE
• Model: B850 AORUS STEALTH ICE
• Condition: Brand new
• SKU: MOH-GIGABY-B850-NEW-0920
