GIGABYTE B550I AORUS Pro AX | AMD AM4 Mini-ITX Motherboard | DDR4 5300+ | PCIe 4.0 | Dual M.2 | WiFi 6E | 2.5G LAN | USB 3.2 Gen 2 Type-C | For Ryzen 3000/4000/5000 Series | Small Form Factor PC
محتار قبل الشراء؟ تواصل معنا
فريق المبيعات جاهز يساعدك تتأكد من التوافق ويرد على كل استفساراتك خلال دقائق
About This Product

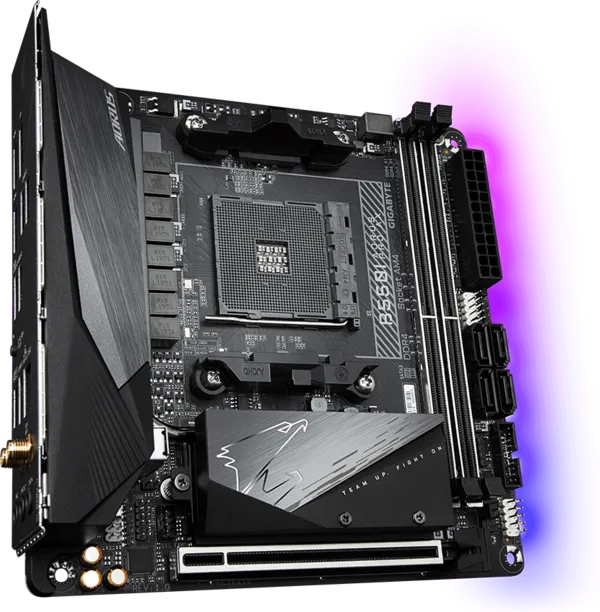

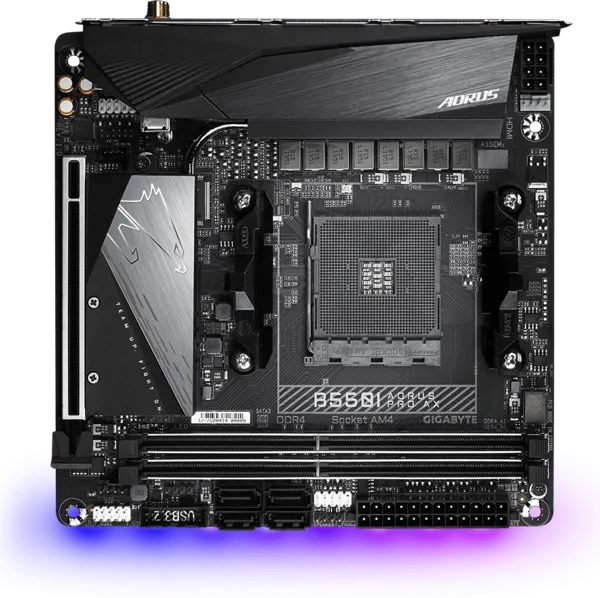

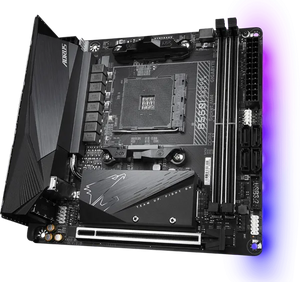

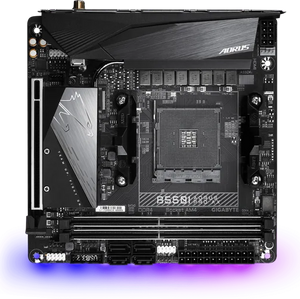

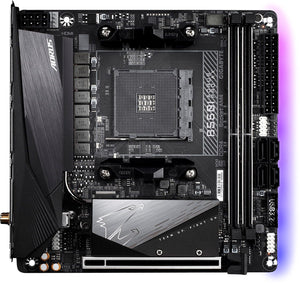

The GIGABYTE B550I AORUS Pro AX is a premium Mini-ITX motherboard engineered for builders who want flagship performance in the smallest form factor. Built on AMD's B550 chipset with the AM4 socket, this compact powerhouse delivers full ATX-class features in a tiny 17×17 cm package — making it the ideal foundation for SFF (Small Form Factor) builds, HTPCs, LAN rigs, and minimalist desktop setups.
Compatible with AMD Ryzen 3000, 4000 G-Series, 5000 G-Series, and 5000 Series processors (including Ryzen 9 5950X), the B550I AORUS Pro AX features a direct 8-phase 90A SPS power solution, PCIe 4.0, dual M.2 slots, WiFi 6E, and premium audio — proving that small form factor doesn't mean small performance.
📐 Mini-ITX Form Factor — Compact Powerhouse
Maximum performance in minimum space:
- 17 × 17 cm Mini-ITX form factor
- Perfect for SFF cases like NR200, NCASE M1, Dan A4-SFX, Lian Li A4-H2O
- Compact yet powerful — supports flagship AMD Ryzen 9 CPUs
- Ideal for HTPC, LAN rigs, minimalist desktops, console-replacement builds
- No compromise on aesthetics — sleek black/silver design
⚡ Direct 8-Phase 90A SPS Power Solution
Flagship-class power delivery in a tiny package:
- Direct 8 Phases Digital VRM (6+2 phases for Vcore and SOC)
- 90A Smart Power Stage (SPS) per phase — Total 720A power design
- Solid-Pin 8-pin CPU Power Connector
- Solid-plated ATX 24-pin power connector
- 2X Copper PCB design for handling greater than normal power loads
- Digital PWM Controller for precise voltage delivery
- Engineered to handle Ryzen 9 5950X, 5900X at full boost without throttling
💾 DDR4 5300+ MHz Memory Support
Push memory performance to extreme heights:
- 2× DDR4 DIMM slots — Up to 64GB total capacity
- DDR4 5300+ MHz (OC) support
- Intel® XMP profile support (5300+ MHz validated)
- Dual Channel Memory Architecture
- ECC and Non-ECC Un-buffered DDR4 support
- 1 DIMM Per Channel design for cleaner signaling
🚀 PCIe 4.0 + Dual M.2 Storage
Lightning-fast graphics and storage despite compact form:
- 1× PCIe 4.0 x16 slot with Ultra Durable™ reinforcement
- 2× M.2 NVMe slots (PCIe 4.0/3.0 x4 with Thermal Guard)
- NVMe RAID support for record speeds:
- ↳ Sequential Read: up to 6,560 MB/s
- ↳ Sequential Write: up to 6,669 MB/s
- 4× SATA 6Gb/s for additional storage
- Thermal Guards on both M.2 slots prevent throttling
🌐 WiFi 6E + 2.5G LAN — Premium Connectivity
Next-generation networking for low-latency gaming:
- WiFi 6E (802.11ax) — Tri-band (2.4 / 5 / 6 GHz)
- Bluetooth 5.2 for modern peripherals
- Realtek 2.5 Gigabit Ethernet with Bandwidth Management
- AORUS Antenna with smart antenna function for best signal strength
- Multiple angle tilt and magnetic base for optimal positioning

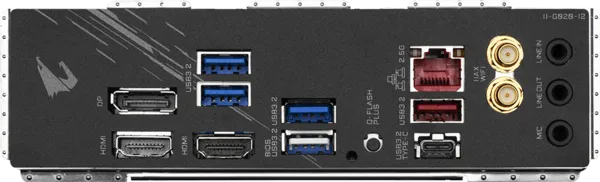

🔌 Modern USB Connectivity
Comprehensive USB despite compact size:
- 1× USB 3.2 Gen 2 Type-C (rear, 10 Gbps)
- Multiple USB 3.2 Gen 2 Type-A ports (rear)
- USB 3.2 Gen 1 Type-A ports
- USB 2.0 ports for legacy devices
- Q-Flash Plus dedicated USB port for BIOS updates
🌡️ Advanced Thermal Design — Built for Compact Cases
Engineered cooling for sustained performance in tight spaces:
- Extended VRM Heatsink with Multi-Layered design
- Thermal Baseplate for backside cooling
- Direct-Touch Heatpipe for efficient heat dissipation
- Thermal Guards on both M.2 slots
- Smart Fan 5 with multiple temperature sensors
- Hybrid Fan Headers with PWM/DC auto-detection
- Liquid cooling friendly design
📺 Dual HDMI 2.1 + DisplayPort
Premium display connectivity:
- Dual HDMI 2.1 ports — 48 Gb/s bandwidth (2× more than HDMI 2.0)
- 4K @ 60Hz, 21:9, HDCP 2.3 support
- 1× DisplayPort
- Full HDR support
- Perfect for HTPC and multi-monitor setups
- Note: Display output requires APU (Ryzen with Radeon Graphics)
🎵 AMP-UP Audio with ALC1220-VB
Audiophile-grade audio for immersive experiences:
- Realtek ALC1220-VB codec
- 120 dB SNR on rear audio output
- 110/114 dB SNR on front/rear microphone
- Hi-Res Audio certified (frequencies up to 40kHz+)
- Nichicon Fine Gold audio capacitors
- Smart Headphone Amp with auto-impedance detection
- AMP-UP Audio technology for clean signal
🎨 RGB FUSION 2.0
- RGB FUSION 2.0 for full lighting control
- Onboard ARGB headers for ARGB/RGB devices
- Subtle LED accent strip integrated into design
- Sync with compatible AORUS, GIGABYTE, and ARGB ecosystem
- Sleek black/silver aesthetic
🛠️ Builder-Friendly Features
- Q-Flash Plus — Update BIOS without CPU/RAM/GPU
- Easy BIOS update via dedicated button
- One-piece stainless steel PCIe shielding against PCB distortion
- Pre-mounted I/O Shield
- Smart Fan 5 with intuitive control
- RAID configuration support
🛡️ Ultra Durable™ Technology
GIGABYTE's signature reliability features:
- 2X Copper PCB for superior heat dissipation
- One-piece stainless-steel PCIe shielding (20% wider)
- Solid Pin Power Connectors
- Anti-Sulfur Resistor Design
- Server-Level Choke for extended lifespan
🎯 Why GIGABYTE B550I AORUS Pro AX?
- ✅ Mini-ITX form factor — Build the ultimate SFF rig
- ✅ Flagship-class VRM in tiny package
- ✅ 720A power design handles Ryzen 9 5950X
- ✅ WiFi 6E + 2.5G LAN — Premium connectivity
- ✅ Dual HDMI 2.1 — Perfect for HTPC builds
- ✅ Audiophile-grade audio with ALC1220-VB
- ✅ Compatible with all AM4 Ryzen 3000/4000/5000 series
Key Features
- AMD B550 Chipset — AM4 socket
- Compatible CPUs: AMD Ryzen 3000 / 4000 G-Series / 5000 / 5000 G-Series
- Mini-ITX form factor (17 × 17 cm)
- Direct 8 Phases Digital VRM (6+2)
- 90A Smart Power Stage per phase (720A total)
- Solid-pin 8-pin CPU power connector
- 2X Copper PCB design
- 2× DDR4 DIMM slots — Up to 64GB at 5300+ MHz (OC)
- Intel XMP support
- ECC + Non-ECC Un-buffered DDR4 support
- PCIe 4.0 x16 slot with Ultra Durable™ reinforcement
- 2× M.2 slots (PCIe 4.0/3.0 x4 with Thermal Guard)
- NVMe RAID up to 6,560 MB/s read speeds
- 4× SATA 6Gb/s ports
- WiFi 6E (802.11ax) + Bluetooth 5.2
- Realtek 2.5 Gigabit Ethernet
- USB 3.2 Gen 2 Type-C (10 Gbps, rear)
- Dual HDMI 2.1 + DisplayPort (4K@60Hz, HDCP 2.3)
- AMP-UP Audio with Realtek ALC1220-VB (120 dB SNR)
- Hi-Res Audio certified
- Nichicon Fine Gold audio capacitors
- Smart Headphone Amp
- Extended VRM Heatsink + Thermal Baseplate
- Direct-Touch Heatpipe
- Smart Fan 5 with multiple temperature sensors
- RGB FUSION 2.0 with ARGB headers
- Q-Flash Plus (no CPU/RAM/GPU needed)
- One-piece stainless-steel PCIe shielding
- Pre-mounted I/O Shield
- Ultra Durable™ Technology
- SKU: MOH-GIGABYTE-B550IAORUS-OB-0059
