Title

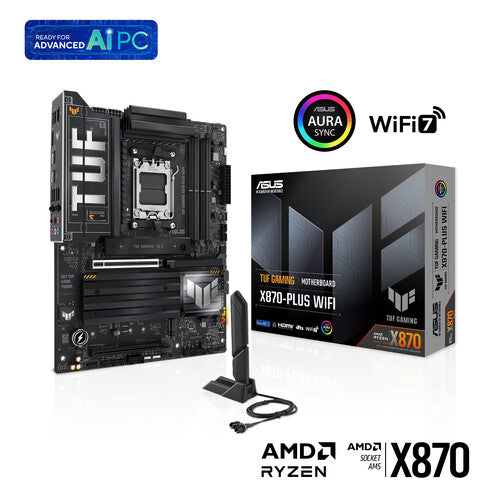

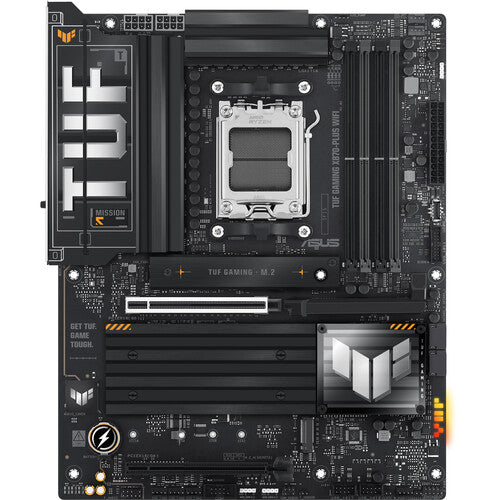

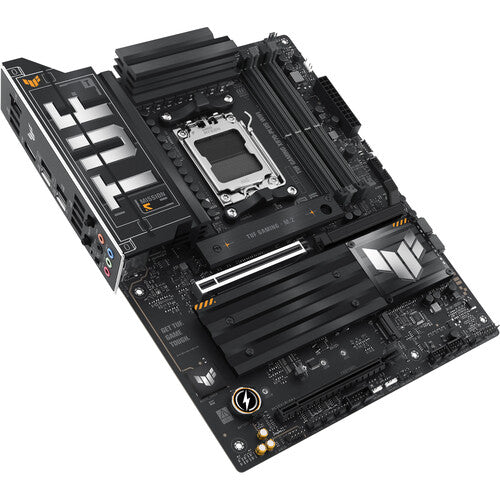

ASUS TUF Gaming X870-PLUS WiFi | AMD AM5 ATX Motherboard | DDR5 EXPO | PCIe 5.0 | 4× M.2 with PCIe 5.0 | WiFi 7 | Dual USB4 40Gbps | For Ryzen 7000/8000/9000
محتار قبل الشراء؟ تواصل معنا
فريق المبيعات جاهز يساعدك تتأكد من التوافق ويرد على كل استفساراتك خلال دقائق
About This Product
Built Tough.
Built for AI.
When only the fastest will do, the TUF Gaming X870-PLUS WiFi delivers. USB4 40Gbps onboard, DDR5 8000+ MT/s, PCIe 5.0 for graphics and NVMe, and exclusive AI Cache Boost — engineered for the most demanding games and biggest creative projects with AMD Ryzen 9000, 8000, and 7000 Series processors.
Premium Power
For Ryzen.
Built for the demands of high-core-count Ryzen processors. 16(80A) + 2(80A) + 1(80A) SPS power stages integrate high-side and low-side MOSFETs into single packages — optimal power delivery, efficiency, and stability for both current and future AMD CPUs. 8-layer PCB + dual 8-pin ProCool connectors + TUF military-grade components.
19× 80A SPS Stages
16 Vcore + 2 SoC + 1 Misc Smart Power Stages — clean, efficient, sustained delivery for Ryzen 9 9950X3D and beyond.
8+8 ProCool
Tight specifications for full PSU contact — lower impedance prevents hotspots and connector failure.
TUF 5K Capacitors
52% wider temperature tolerance + 2.5× longer lifespan than standard motherboard capacitors.
8-Layer PCB
Multi-layer design rapidly dissipates heat around voltage regulators — improved overclocking headroom.
DDR5
Dominance.
Comprehensive memory tuning is the cornerstone of TUF Gaming. Vast AMD EXPO support — fly past stock DDR5 speeds up to 8000+ MT/s. ASUS AEMP auto-detects and tunes PMIC-restricted modules. DIMM Fit / DIMM Fit Pro precisely analyzes individual memory modules with 20+ tunable parameters.
Dual PCIe 5.0
Storage.
Blazing-fast storage at your command — 2× PCIe 5.0 M.2 slots deliver up to 128 Gbps per drive — twice the bandwidth of PCIe 4.0. Plus 2× PCIe 4.0 M.2 slots (one supports 22110 long drives). All M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.
PCIe 5.0
PCIe 4.0
x16 GPU
6Gb/s
Dual USB4.
40 Gbps Each.
The flagship feature of the X870 platform — 2× USB4 40Gbps Type-C ports onboard. Each delivers up to 40 Gbps bi-directional bandwidth for super-speed devices and drives. Both ports support dual external 4K displays. Plus a front-panel USB 20Gbps Type-C connector with 30W PD Fast Charge.
Run AI Locally.
29% Faster.
Supercharge your large language model (LLM) workflows with AI Cache Boost — exclusive to ASUS AMD 800/600 series motherboards with Ryzen 9000 Series CPUs. This BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning. Run AI chatbots and creative AI tools locally — no cloud needed.
Complete AI
Solution.
ASUS AI Solutions — smart assistance, one-click overclocking, efficient cooling, and ultrafast connectivity. From AI Advisor's natural-language hardware help to AI Networking II's WiFi 7 optimization, every aspect of your build is intelligently managed.
AI Advisor
ASUS technical expert always available — natural-language hardware questions answered instantly.
AI Overclocking
Profiles CPU + cooling to predict optimal OC — engage automatically or use as launching ground.
AI Cooling II
One-click fan tuning — proprietary algorithm balances thermals and acoustics in seconds.
AI Networking II
Traffic Monitor + Direction Finder + Fast Check — unleash WiFi 7's full speed automatically.
UEFI BIOS
BIOS Q-Dashboard + Advanced Mode + EZ Mode + ASUS MyHotkey for streamlined configuration.
Armoury Crate
Centralized control — RGB, Fan Xpert 4, drivers, and ecosystem in one intuitive interface.
Ryzen Tuning.
Smart + Manual.
Dynamic OC Switcher automatically switches between manual overclock (multi-threaded) and PBO (single-threaded) based on CPU current/temperature. The latest Overclocking Load Guard prevents system crashes during OC. Core Flex manipulates power, current, and temperature limits independently — bend CPU performance to your will.
WiFi 7.
2.9 Gbps Wireless.
Next-gen WiFi 7 (802.11be) supports 160 MHz bandwidth in the 6 GHz band and 4096 QAM — up to 2.9 Gbps transfer rate. Multi-Link Operation (MLO) ensures stable connections + low latency. ASUS WiFi Q-Antenna delivers +18% stronger reception on 5/2.4GHz bands. Plus Realtek 2.5 Gb Ethernet.
Built to Survive
Anything.
TUF Gaming motherboards undergo rigorous endurance testing — passed 72-hour salt fog testing while other brands only pass 24 hours. Stainless steel back I/O panel with chromium oxide bonding — 3× longer lifespan. TUF LANGuard protects against lightning and static, 2.5× higher surge tolerance.
SafeSlot + SafeDIMM
Reinforced metal sheaths on PCIe + RAM slots — keep cards installed under load + protect modules.

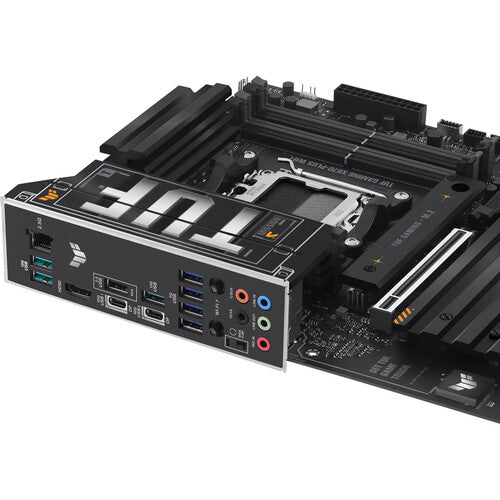

Stainless Steel I/O
Chromium oxide coating + 3× longer lifespan. Passed 72-hour salt fog testing.
Build It
Easy.
Engineered for builders. From one-tap GPU release to tool-less M.2 install to snap-in WiFi antennas — every detail makes assembly and troubleshooting effortless.
Q-LED Diagnostic
4 onboard LEDs diagnose CPU, RAM, GPU, boot device — alerts even before booting.
BIOS FlashBack
Update BIOS via USB — no CPU or memory needed. Critical for new gen Ryzen upgrades.
PCIe Slot Q-Release
A physical button unlocks PCIe security latch with one tap — simplifies GPU upgrades.
M.2 Q-Latch
Tool-less SSD install. Simple locking mechanism — no traditional screws needed.

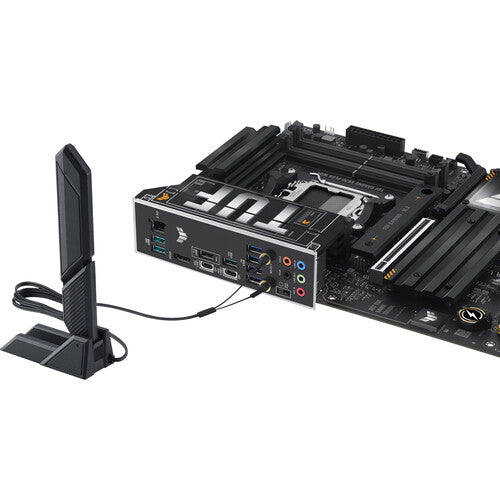

WiFi Q-Antenna
Snap-in design — no fasteners to rotate. Faster, more consistent connection.
Pre-Mounted I/O Shield
Comes pre-installed — no fumbling during case mounting. Saves time + frustration.
Pristine Audio.
Edge Lit Style.
Realtek ALC1220P codec with 120 dB SNR stereo output and 113 dB SNR recording input — pristine audio quality. DTS Audio Processing, TUF Gaming Audio Cover, dedicated PCB layers, premium capacitors. Plus Aura Edge Lighting with 3× Addressable Gen 2 RGB headers for up to 500 LEDs.
SNR Stereo Out
SNR Recording In
Surround Sound
Audio Processing
By the Numbers
TUF X870-PLUS.
DDR5 8000+ EXPO · 2× PCIe 5.0 M.2 · Dual USB4 40Gbps · WiFi 7 · AI Cache Boost · 19× 80A SPS.
