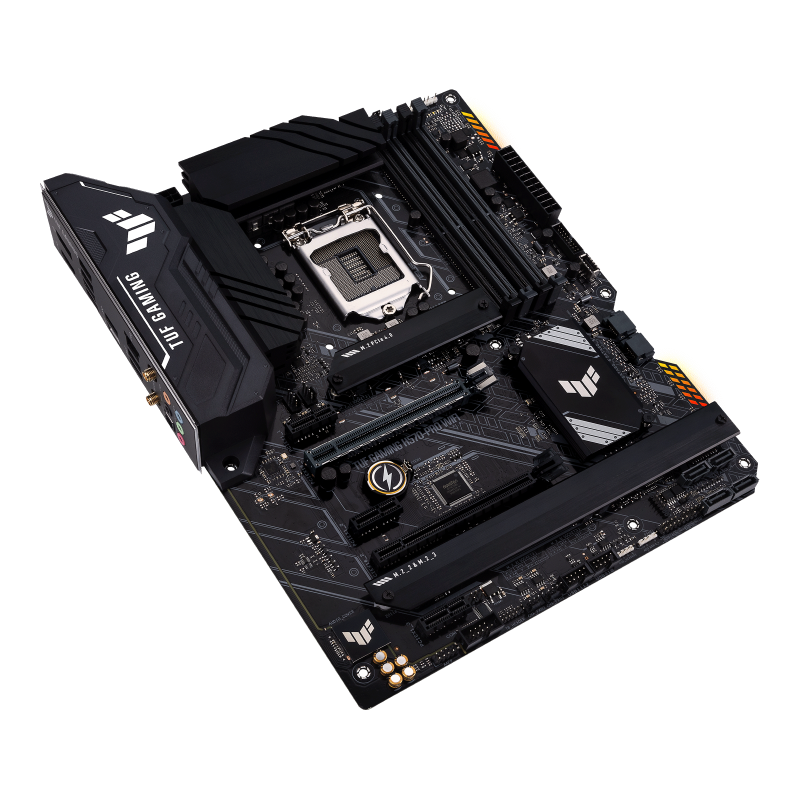

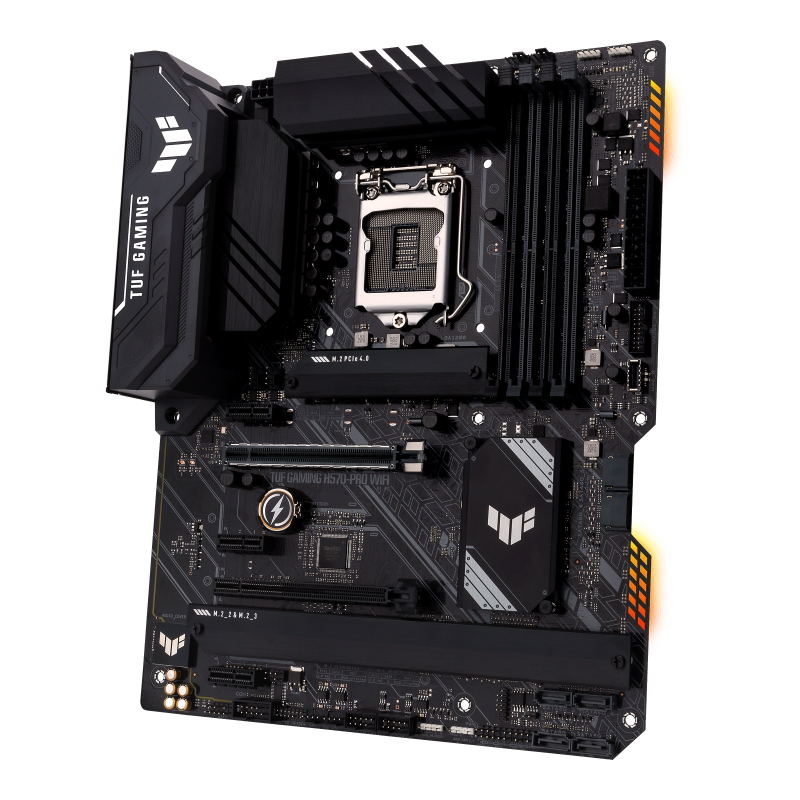

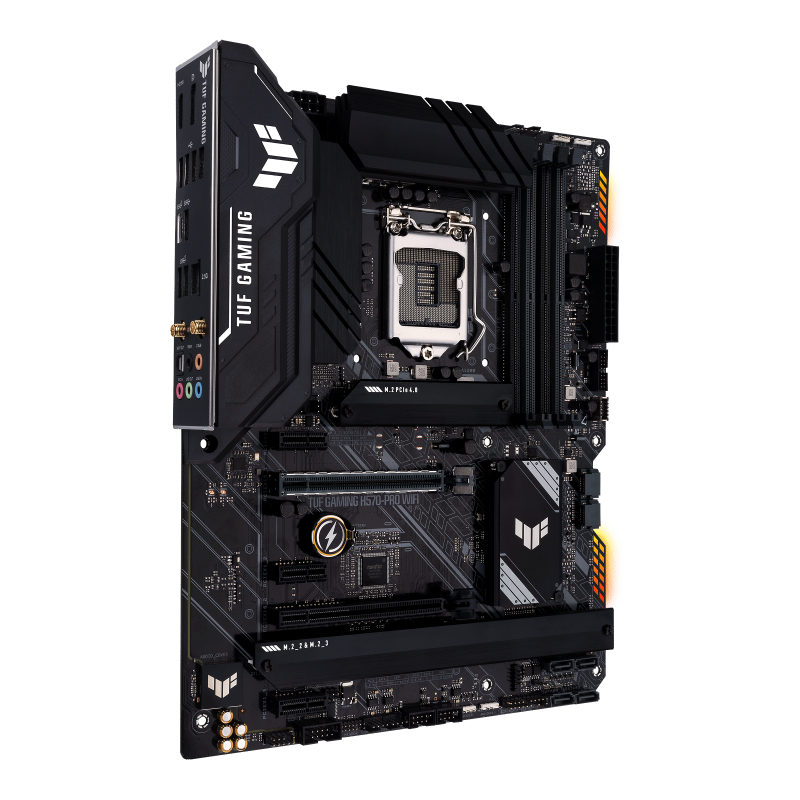

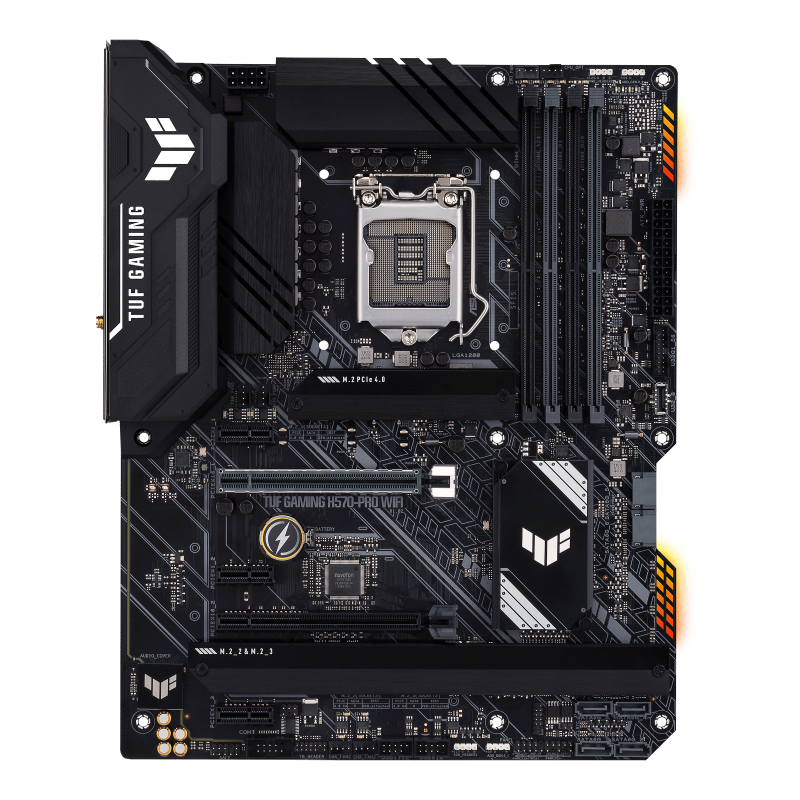

ASUS TUF GAMING H570-PRO WIFI Motherboard

ASUS TUF GAMING H570-PRO WIFI

A durable LGA1200 board for 11th and 10th Gen Intel Core builds, the TUF Gaming H570-PRO WIFI combines 8+1 power stages and military-grade TUF components with three M.2 sockets, six SATA ports and Intel Wi-Fi 6. It is the sensible upgrade path for anyone keeping a Rocket Lake or Comet Lake CPU in service. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Socket: Intel LGA1200 for 11th Gen and 10th Gen Intel Core Processors
• Chipset: Intel H570
• Form Factor: ATX — 30.5 cm x 24.4 cm
• Memory: 4 x DIMM, DDR4 (dual channel), max. 128GB, up to DDR4-5000 (OC); native DDR4-3200 on 11th Gen / DDR4-2933 on 10th Gen
• Power Design: 8+1 power stages with DIGI+ VRM
• Expansion Slots: 1 x PCIe 4.0 x16 (11th Gen) / PCIe 3.0 x16 (10th Gen), 1 x PCIe 3.0 x16 (x4 mode), 3 x PCIe 3.0 x1
• M.2 Storage: 3 x M.2 slots (NVMe and SATA modes supported)
• SATA: 6 x SATA 6Gb/s
• LAN: Realtek 2.5Gb Ethernet with TUF LANGuard
• Wireless: Intel Wi-Fi 6
• Audio: Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

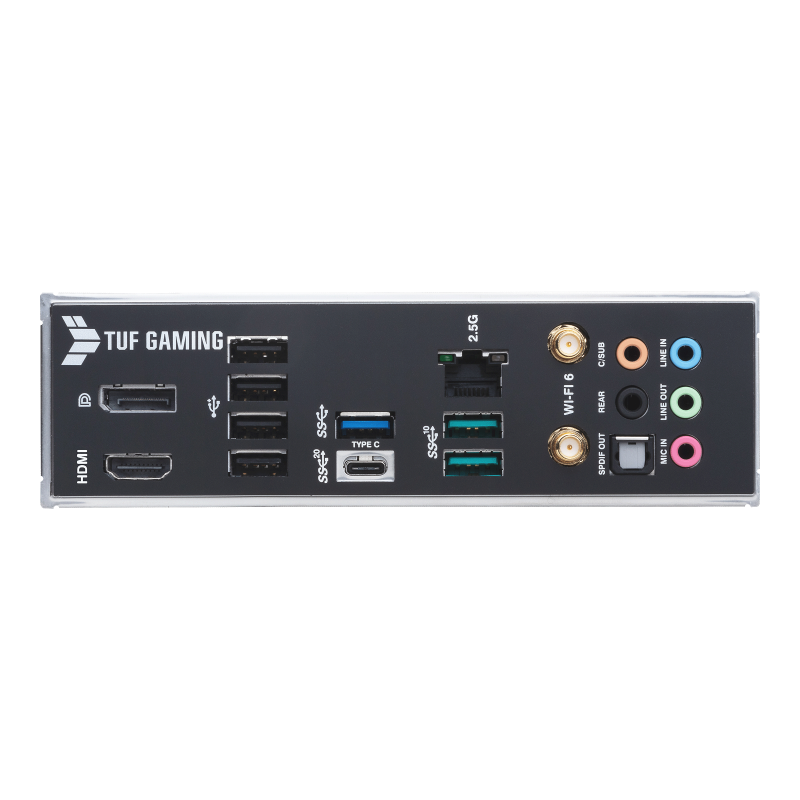

• Rear I/O: 1 x HDMI 2.0, 1 x DisplayPort, 1 x USB 3.2 Gen 2x2 Type-C, 3 x USB 3.2 Type-A, 4 x USB 2.0 Type-A, optical S/PDIF out, audio jacks
• Colour: Black

⚡ Key Features

• LGA1200 socket supports both 11th Gen and 10th Gen Intel Core processors, so an existing CPU carries over.
• 8+1 power stages with DIGI+ VRM and TUF-grade components built for long, hot duty cycles.
• Four DDR4 slots take up to 128GB and overclock to DDR4-5000 with XMP and OptiMem II trace routing.
• PCIe 4.0 x16 graphics slot when paired with an 11th Gen Rocket Lake CPU.
• Three M.2 sockets accept NVMe or SATA drives — unusually generous for an H570 board.
• Six SATA 6Gb/s ports for large mechanical or SSD storage arrays.
• Intel Wi-Fi 6 plus Realtek 2.5Gb Ethernet with TUF LANGuard surge protection.
• USB 3.2 Gen 2x2 Type-C on the rear panel for 20Gbps external storage.
• Realtek ALC S1200A codec with optical S/PDIF output for 7.1 surround.
• HDMI 2.0 and DisplayPort outputs drive the CPU's integrated graphics.

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: ASUS
• Model: TUF GAMING H570-PRO WIFI
• Condition: Brand new
• SKU: MOH-ASUS-H570-NEW-0908
