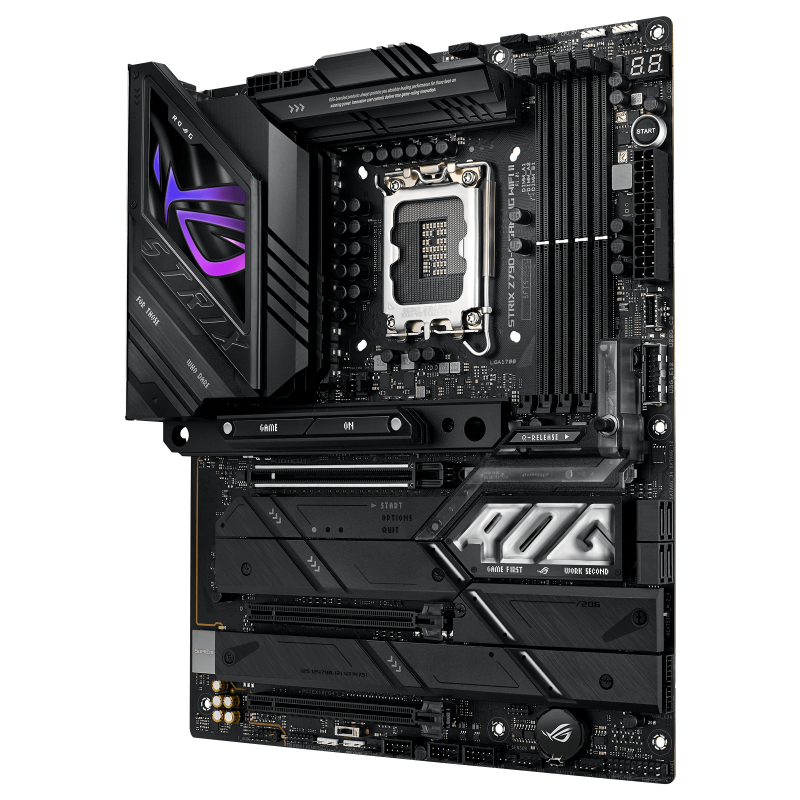

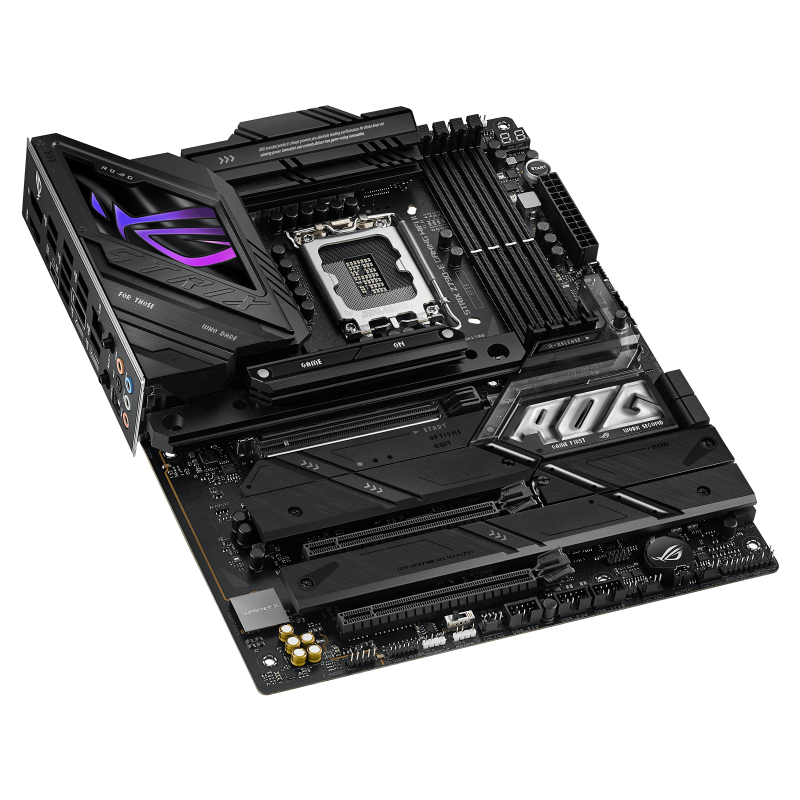

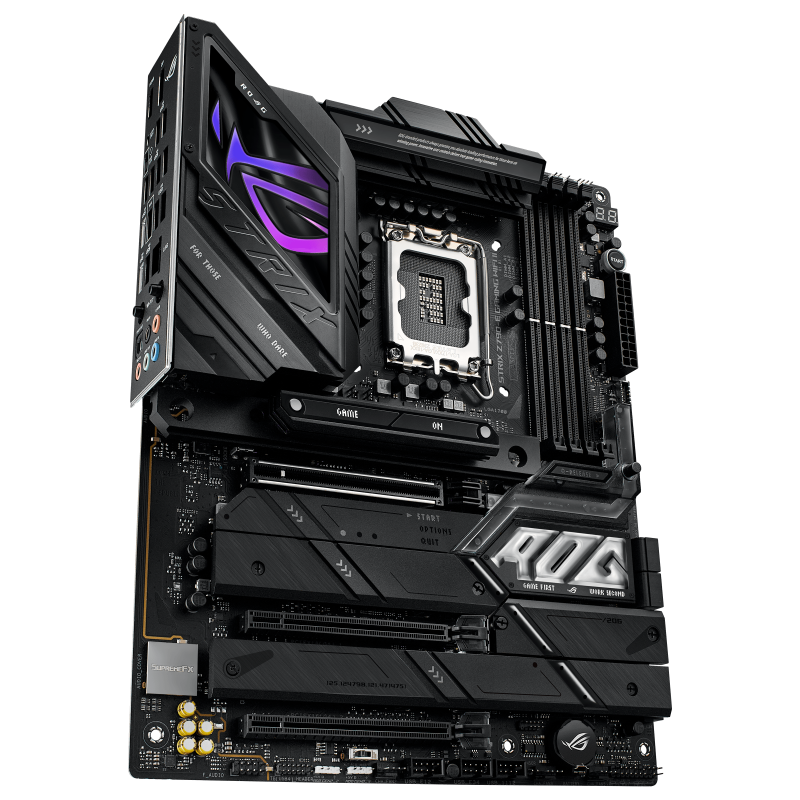

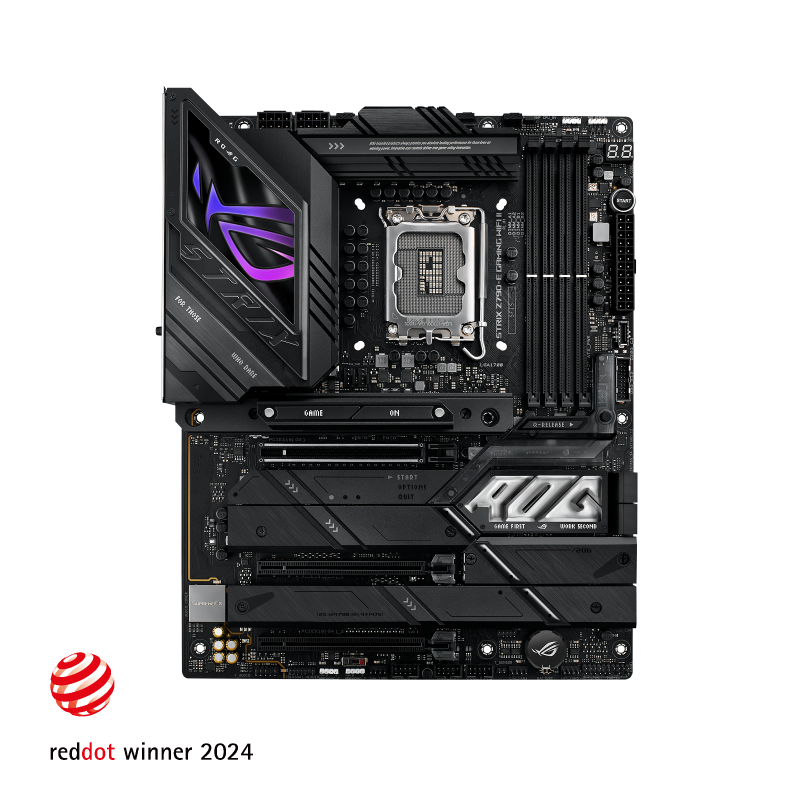

ASUS ROG STRIX Z790-E GAMING WIFI II Motherboard

ASUS ROG STRIX Z790-E GAMING WIFI II

The ROG Strix Z790-E Gaming WiFi II is the enthusiast pick of the Z790 line: 18+1+2 power stages, memory tuned to 8000+ MHz, five M.2 sockets and Intel Wi-Fi 7 with 2.5Gb Ethernet. SupremeFX ALC4080 audio and a dense USB 10Gbps rear panel round out a board meant for a top-tier 14th or 13th Gen Core build. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Socket: Intel LGA1700 for Intel Core 14th & 13th Gen Processors
• Chipset: Intel Z790
• Form Factor: ATX — 30.5 cm x 24.4 cm
• Memory: 4 x DIMM, DDR5, max. 192GB, 4800 MHz up to 8000+ MHz (OC), dual channel with XMP
• Power Design: 18+1+2 power stage configuration
• Expansion Slots: 1 x PCIe 5.0 x16 (CPU), 2 x PCIe 4.0 x16 (x4 mode)
• M.2 Storage: 5 x M.2 — M.2_1 PCIe 5.0 x4; M.2_2 to M.2_5 PCIe 4.0 x4
• SATA: 4 x SATA 6Gb/s
• LAN: Intel 2.5Gb Ethernet with ROG LANGuard
• Wireless: Intel Wi-Fi 7 2x2 (2.4 / 5 / 6GHz), Bluetooth v5.4
• Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
• Rear I/O: 1 x HDMI, 1 x DisplayPort, 1 x USB 20Gbps Type-C, 1 x USB 10Gbps Type-C, 10 x USB 10Gbps Type-A, 5 gold-plated audio jacks, 1 x optical S/PDIF out
• Colour: Black

⚡ Key Features

• 18+1+2 power stages give an unlocked Core i9 the clean, sustained current it needs for all-core boost.
• Memory support to 8000+ MHz (OC) across four DDR5 slots, up to 192GB total.
• PCIe 5.0 x16 graphics slot direct from the CPU, ready for next-generation cards.
• Five M.2 sockets — one PCIe 5.0 x4 plus four PCIe 4.0 x4 — for a genuinely large NVMe array.
• Intel Wi-Fi 7 with Bluetooth 5.4 plus Intel 2.5Gb Ethernet and ROG LANGuard surge protection.
• Twelve rear USB ports, ten of them 10Gbps, so peripherals and external drives never fight for a socket.
• ROG SupremeFX ALC4080 codec with gold-plated jacks and optical S/PDIF for clean headset and speaker output.
• M.2 Combo-Sink cooling keeps the PCIe 5.0 drive from throttling under sustained writes.
• Full-size ATX layout with reinforced graphics slot for heavy modern GPUs.
