Robust Power
Design.

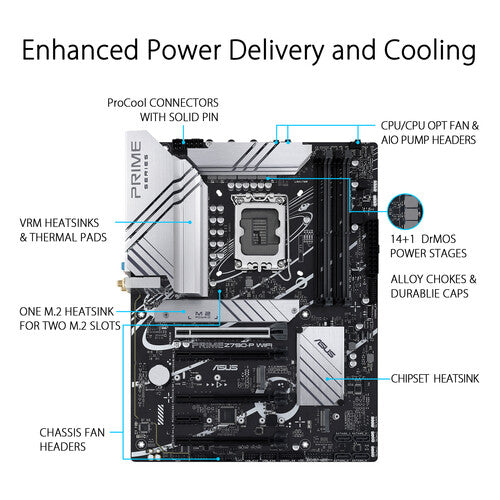

Stable power is essential for high-core-count Intel processors. 14+1 Teamed Power Stages combine high-side + low-side MOSFETs into single packages rated 50A each — clean, efficient, sustained delivery. 8+4 ProCool connectors with solid pins (not hollow) handle more current + pass 12V directly to the processor. Enlarged VRM heatsinks + Digi+ VRM real-time control.

DDR5
Boosted.

ASUS AEMP II (Enhanced Memory Profile II) trains your DDR5 modules and presents optimized clock speeds — up to 37.5% faster RAM than baseline DDR5-4800. ASUS OptiMem II carefully maps memory signal pathways across PCB layers — reduces vias, adds shielding zones, cuts crosstalk. Result: DDR5 7200+ MT/s OC, lower latencies, improved memory frequency margin.

PCIe 5.0 GPU.
3× M.2 Storage.

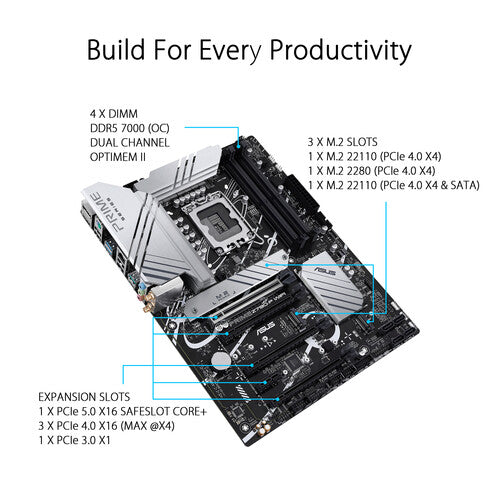

PCIe 5.0 x16 SafeSlot Core+ reinforced metal sheath for next-gen graphics cards — twice the bandwidth of PCIe 4.0. Three M.2 slots all running PCIe 4.0 x4 — up to 64 Gbps per drive. Two slots support long 22110 form factor drives. 4× SATA 6 Gb/s with Intel RST RAID 0/1/5/10.

Universal
Connectivity.

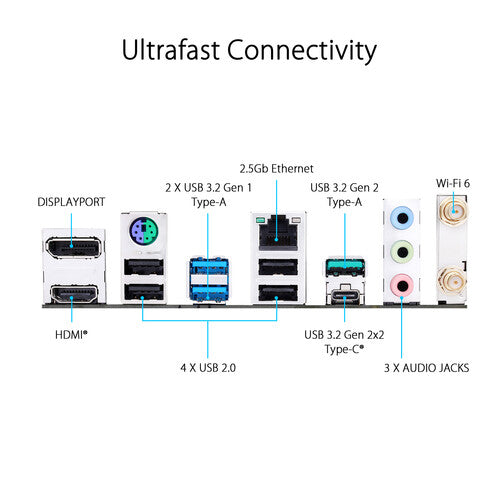

Rear USB 3.2 Gen 2x2 Type-C — up to 20 Gbps for ultrafast external drives. Front USB Gen 2 Type-C connector for modern cases. The Thunderbolt 4 (USB4) header enables 40 Gbps bi-directional with optional ASUS add-on card — supports dual 4K displays + daisy-chain on a single cable.

Smart
Networking.

Onboard Intel WiFi 6 (802.11ax) pushes theoretical peak bandwidth up to 2.4 Gbps — optimized for crowded networks with competing traffic. Realtek 2.5 Gb Ethernet reduces CPU overhead with high TCP/UDP throughput — 2.5× faster than standard Gigabit. ASUS LANGuard integrates anti-EMI surface-mounted capacitors for stable, reliable connections.

Intelligent
Control.

ASUS Intelligent Control makes your PC smart — complex tuning handled dynamically with simplified options for beginners and comprehensive features for veterans. AI Cooling II auto-tunes fans for optimal noise/thermal balance. Two-Way AI Noise Cancelation uses 500M+ deep-learning database to remove background noise. Fan Xpert 4 + Power Saving + Digi+ VRM Control.

Cool Under
Pressure.

Engineered with multiple onboard heatsinks and an array of hybrid fan headers. Massive VRM heatsinks + engineered thermal pads improve heat transfer from MOSFETs and chokes. M.2 heatsink covers two slots — no throttling on sustained transfers. Chipset heatsink + dedicated AIO Pump Header + Smart Protection IC against overheating + overcurrent.

Pristine
Audio.

The unique Realtek S1220A codec — designed in close collaboration with Realtek. Unprecedented 120 dB SNR stereo output + 113 dB SNR recording input. DTS:X Ultra adds spatial audio for headphones + speakers + VR. Audio shielding, separate L/R PCB layers, premium audio capacitors. Impedance-sensing circuit auto-adjusts gain for optimal headphone volume.

Build It
Easy.

Engineered for builders. Q-LED Core diagnostic LED produces light patterns during POST — fast blink for DRAM, slow for VGA, very slow for boot device. SafeSlot Core+ reinforced PCIe 5.0 metal sheath. M.2 Q-Latch tool-less SSD install. FlexKey reassigns chassis reset button. Stainless steel back I/O — 3× corrosion-resistance.

Outshine the
Competition.

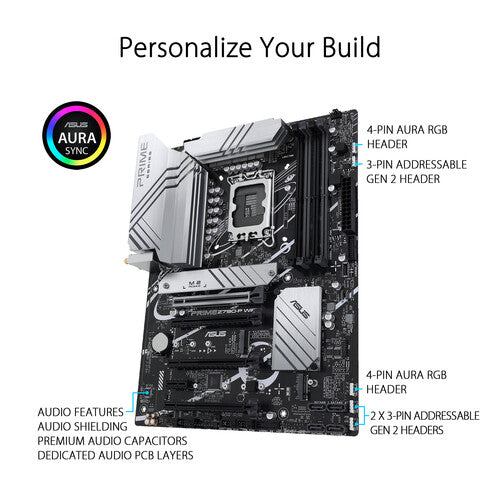

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura Sync with full RGB control across the entire ASUS ecosystem. 3× Addressable Gen 2 RGB headers + 1× 4-pin Aura RGB header for hundreds of LEDs. 9 effect modes — from Static to Adaptive Color. Centralized control through Armoury Crate.

By the Numbers

Built for the
Practical.

14+1 Power Stages, 3× M.2 with NVMe RAID, AEMP II memory tuning, AI Cooling II — the Prime Z790-P WIFI balances mainstream performance, reliability, and value for Intel builders who want it all without enthusiast pricing.
