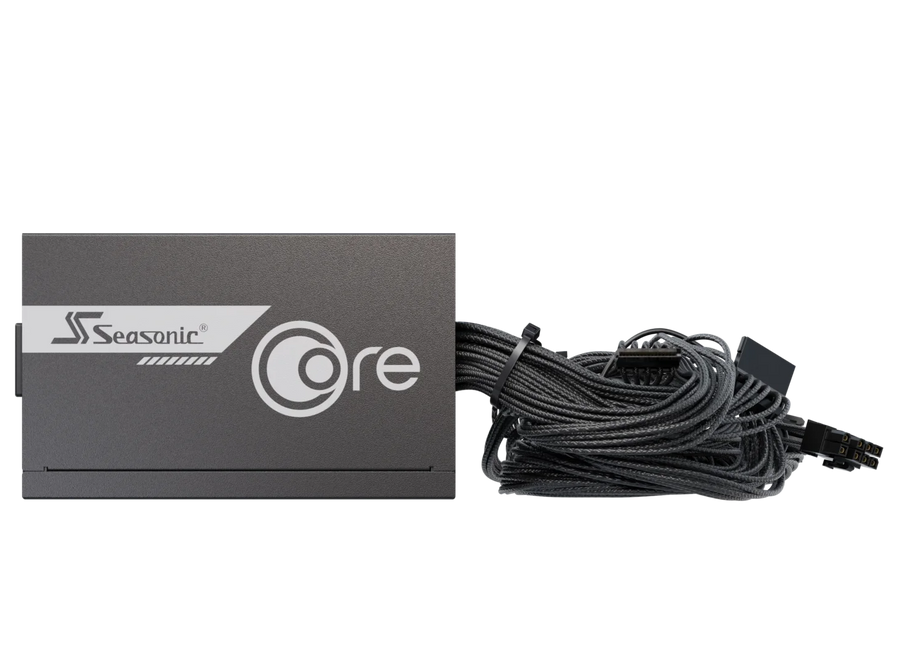

Seasonic CORE GC-750 750W Power Supply

Seasonic CORE GC-750 750W 80 PLUS Gold ATX 3.1 Power Supply

ATX 3.1 and PCIe 5.1 compliance with a native 12V-2x6 connector means this supply feeds a modern graphics card directly, without adapters and without flinching at transient power spikes. Seasonic backs it with a five-year warranty and a 120mm hydro dynamic bearing fan that stays off at low load. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Model: CORE GC-750
• Continuous Power: 750W
• Efficiency: 80 PLUS Gold
• Standards: ATX 3.1 and PCIe 5.1
• Cabling: Fixed (non-modular), individual black cables with braided pattern

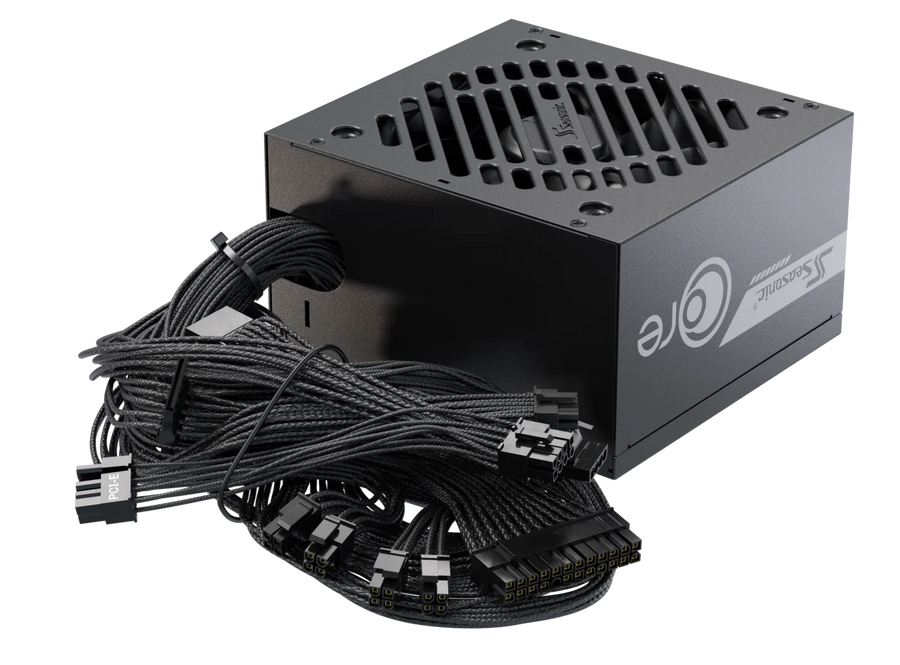

• Connectors: 1 × 24/20-pin motherboard, 2 × CPU 8/4-pin, 2 × PCIe 8/6-pin, 1 × 12V-2x6, plus SATA and Molex peripheral connectors
• Cable Lengths: 24-pin 550mm, CPU 600mm, PCIe 550mm, 12V-2x6 600mm, peripheral 600mm

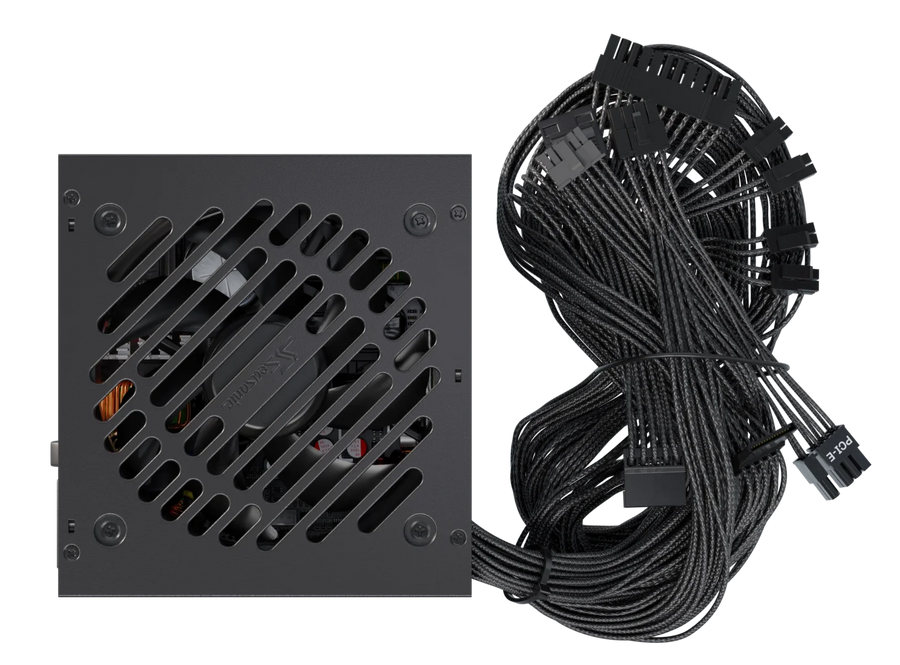

• Fan: 120mm Hydro Dynamic Bearing
• Fan Control: S²FC Smart and Silent Fan Control
• Fan Life Expectancy: 40,000 hours at 40°C, 15–65% RH
• Protections: OCP, OPP, OTP, OVP, SCP, UVP
• Dimensions: 140 (L) × 150 (W) × 86 (H) mm
• MTBF: 100,000 hours at 25°C, excluding fan
• Operating Temperature: 0°C – 40°C
• Safety Certifications: CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA
• Warranty: 5 years

⚡ Key Features

• 750W of continuous power with 80 PLUS Gold efficiency — less waste heat and a lower electricity bill than a Bronze unit at the same output
• ATX 3.1 and PCIe 5.1 compliant, so it absorbs the sharp transient spikes modern GPUs produce instead of tripping
• Native 12V-2x6 connector powers current-generation graphics cards directly, with no daisy-chained adapter in the path
• Two CPU 8/4-pin connectors on 600mm cables reach the top of a full tower and cover boards with dual EPS sockets
• Six protection circuits (OCP, OPP, OTP, OVP, SCP, UVP) guard the rest of the build if something goes wrong
• 120mm Hydro Dynamic Bearing fan rated for 40,000 hours — the long-life bearing type, not a sleeve
• S²FC smart and silent fan control keeps the fan quiet at everyday loads
• Individually sleeved black cables with a braided pattern tidy the build without a custom cable kit
• Compact 140mm depth fits standard ATX cases with room left for cable routing
• 100,000-hour MTBF and a five-year Seasonic warranty behind it

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: Seasonic
• Model: CORE GC-750
• Condition: Brand new
• SKU: PSU-SEASON-750-NEW-2106
