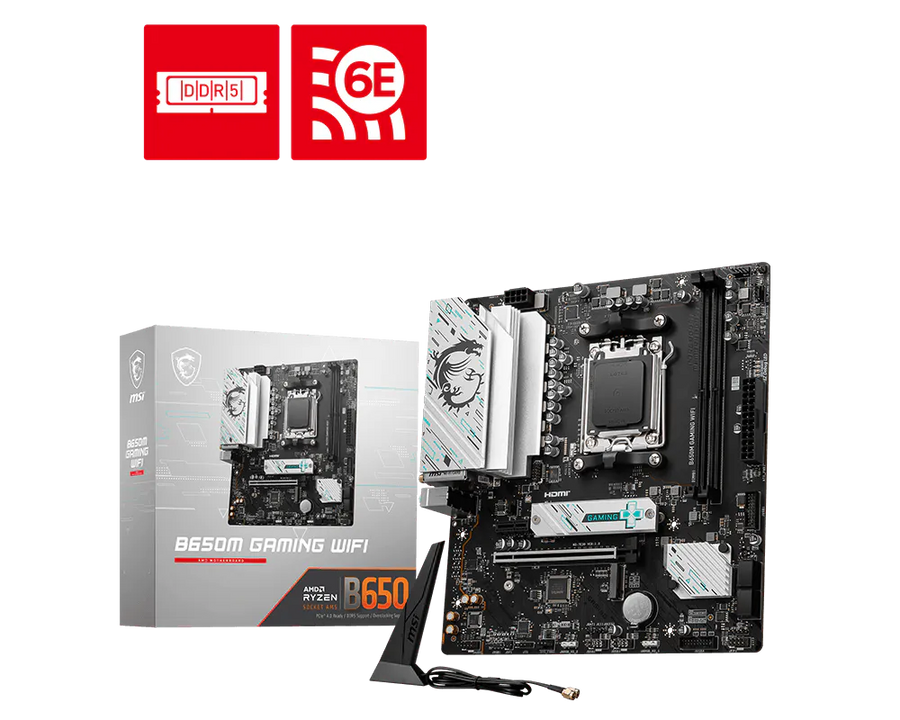

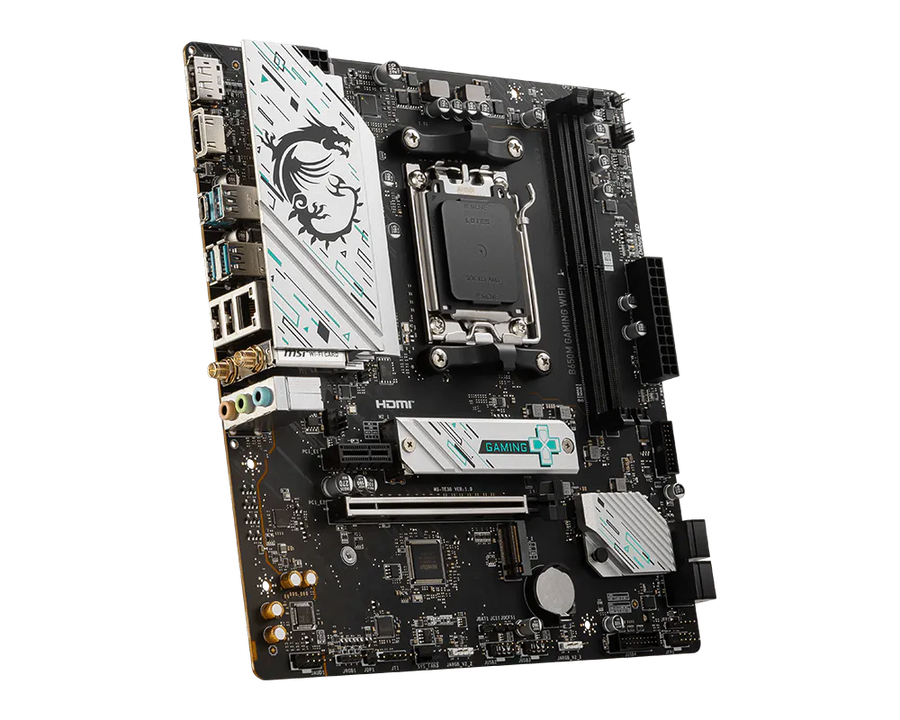

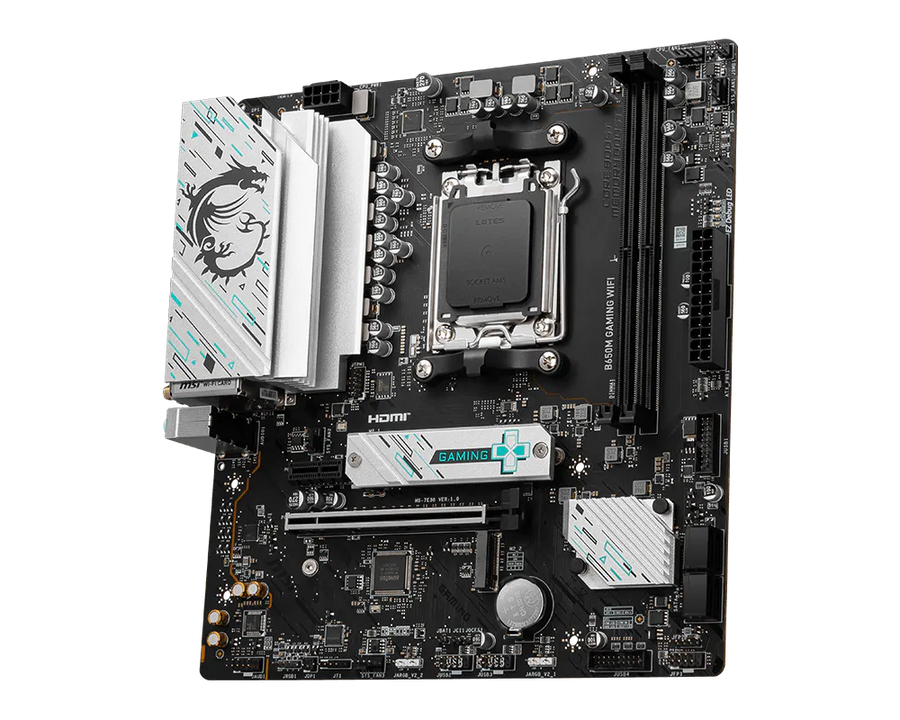

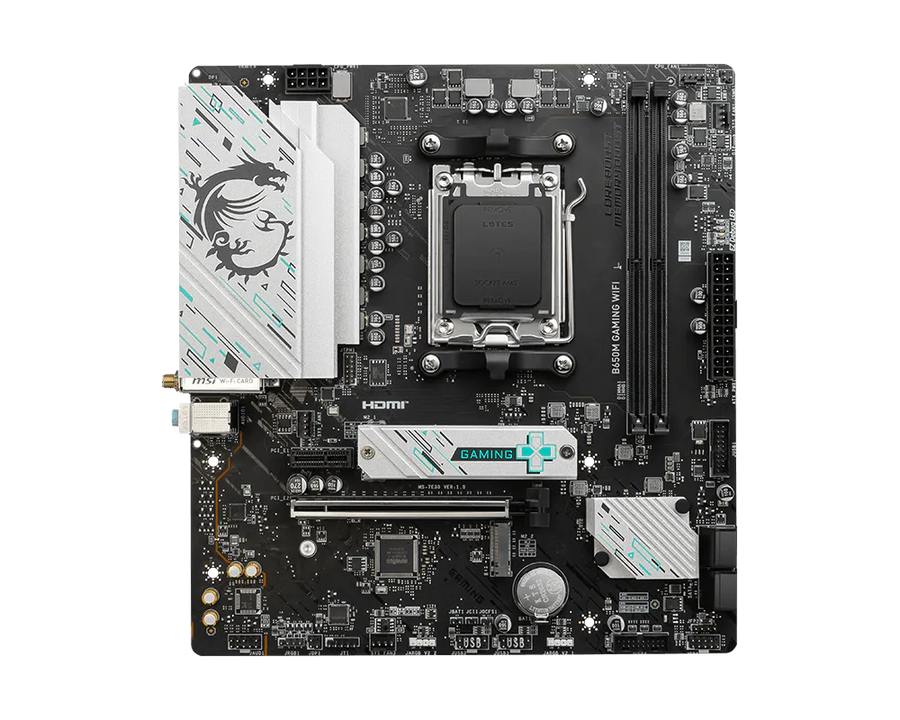

MSI B650M GAMING WIFI Micro-ATX Motherboard

MSI B650M GAMING WIFI Micro-ATX Motherboard (Socket AM5)

A compact AM5 board that gives a Ryzen 9000, 8000 or 7000 build the things that actually matter day to day — two PCIe 4.0 M.2 sockets, 2.5Gbps wired networking and Wi-Fi 6E, all on a Micro-ATX footprint that fits small and mid-tower cases alike. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Brand: MSI
• Model: B650M GAMING WIFI
• Chipset: AMD B650
• CPU Socket: AMD Socket AM5
• CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series desktop processors
• Memory: 2x DDR5 DIMM slots, up to 128GB
• Memory Speeds: DDR5 7800+(OC) down to 4800 (JEDEC) MHz
• Expansion Slots: 1x PCIe x16, 1x PCIe x1
• M.2 Storage: 2x M.2 slots, both PCIe 4.0 x4, 2280 support
• SATA: 4x SATA 6Gb/s
• LAN: Realtek RTL8125BG 2.5Gbps
• Wireless: Wi-Fi 6E with Bluetooth 5.3
• Audio: Realtek ALC897 Codec, 7.1-channel High Definition Audio

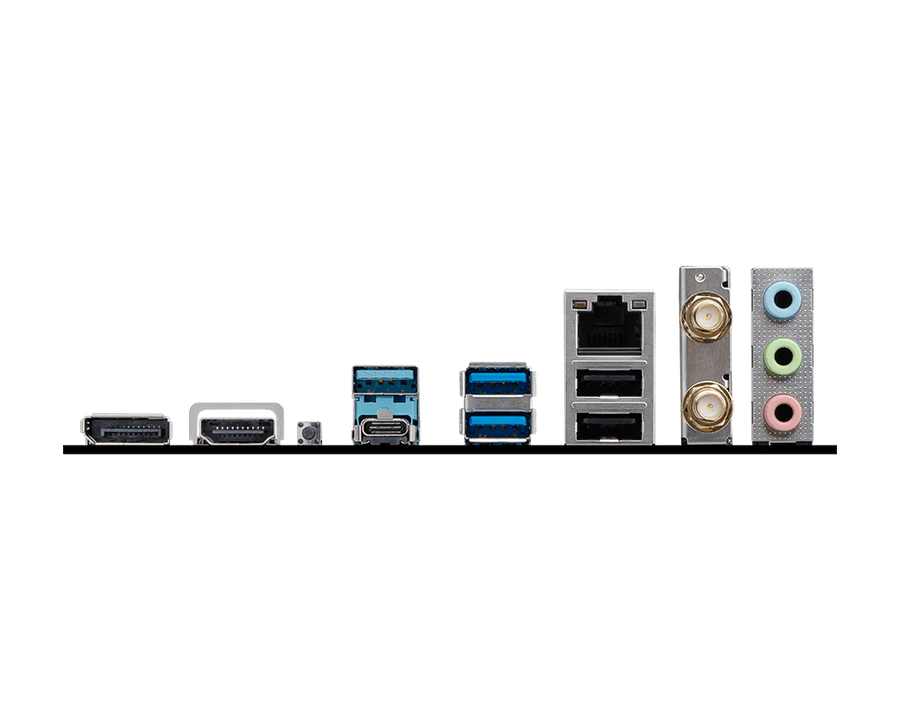

• Rear USB: 2x USB 2.0, 3x USB 5Gbps Type-A, 1x USB 5Gbps Type-C
• Video Outputs: 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz)
• RGB Headers: 2x Addressable V2 RGB LED connectors, 1x RGB LED connector
• Form Factor: Micro-ATX, 226mm x 243.84mm

⚡ Key Features

• Socket AM5 with support for AMD Ryzen 9000, 8000 and 7000 Series processors, so a CPU upgrade later does not mean a new board
• Two DDR5 slots take up to 128GB and reach 7800+MHz with overclocking — plenty of headroom for high-speed EXPO kits
• Two PCIe 4.0 x4 M.2 sockets let you run a fast boot drive and a second NVMe for games or project files without touching a SATA cable
• Realtek 2.5Gbps LAN moves large files across a home network far quicker than standard gigabit
• Wi-Fi 6E adds the uncongested 6GHz band, plus Bluetooth 5.3 for controllers and headsets out of the box
• Four SATA 6Gb/s ports keep existing hard drives and SSDs in the build
• HDMI 2.1 and DisplayPort 1.4 both drive 4K at 60Hz from an AM5 APU's integrated graphics
• Three addressable and standard RGB headers let you tie case fans and strips into one lighting scheme
• Micro-ATX at 226mm x 243.84mm fits compact chassis while keeping a full-length PCIe x16 graphics slot

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: MSI
• Model: B650M GAMING WIFI
• Condition: Brand new
• SKU: MOH-MSI-B650M-NEW-0902
