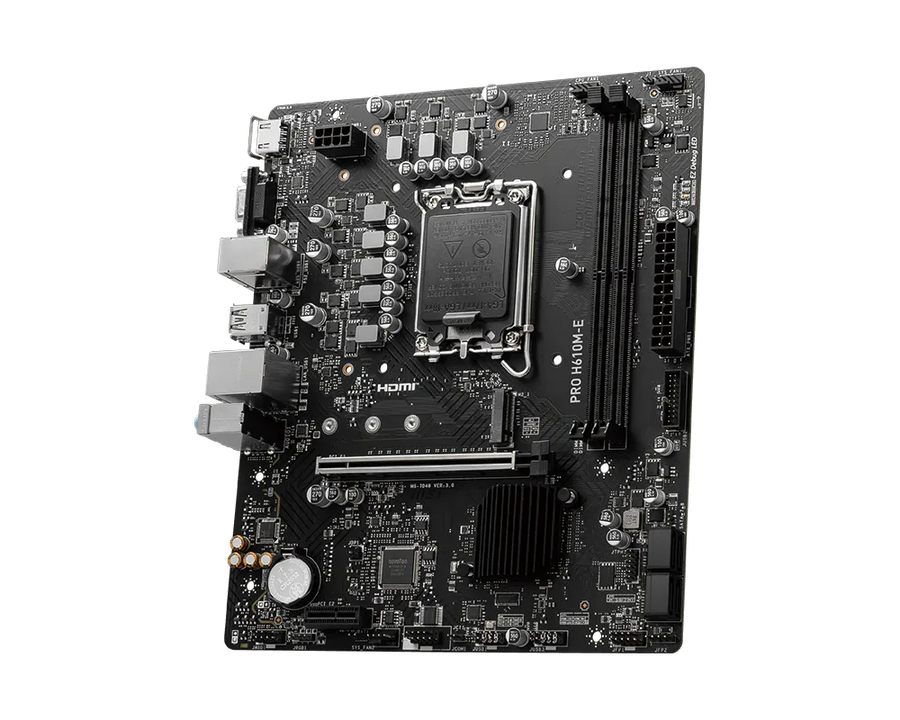

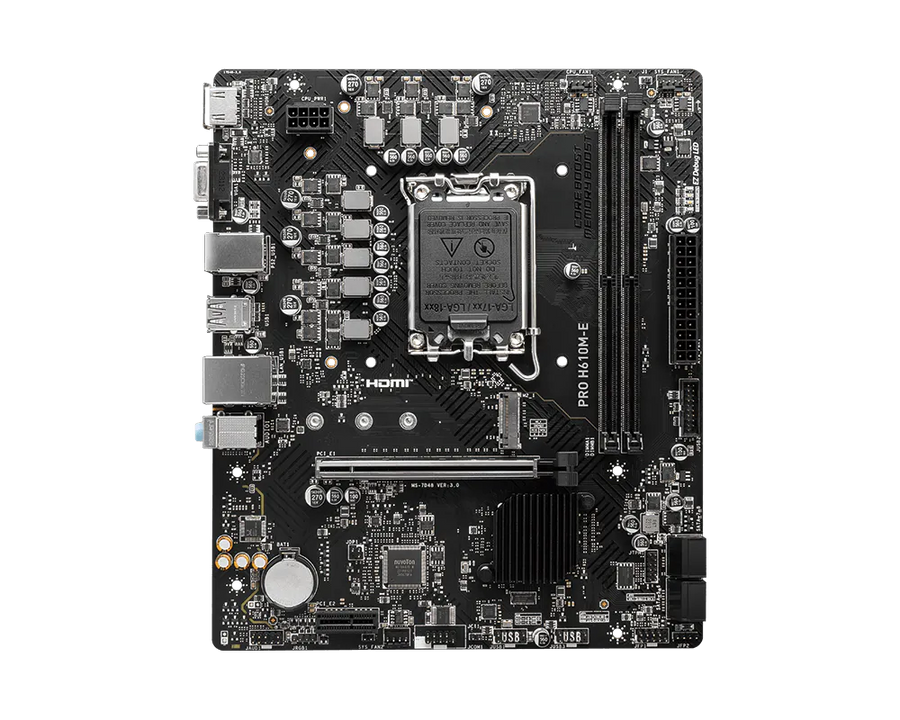

MSI PRO H610M-E Micro-ATX Motherboard

MSI PRO H610M-E Micro-ATX Motherboard, DDR5 (Intel LGA1700)

The DDR5 version of MSI's compact H610 board — same LGA1700 socket and 12th to 14th Gen Intel Core support, but with two DDR5 slots that take up to 96GB at 5600MHz. A sensible base for an everyday desktop you would rather not have to rebuild in two years. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Brand: MSI
• Model: PRO H610M-E
• Chipset: Intel H610
• CPU Socket: Intel LGA1700
• CPU Support: Intel Core 14th / 13th / 12th Gen, Intel Pentium Gold and Celeron processors
• Memory: 2x DDR5 DIMM slots, up to 96GB
• Memory Speeds: DDR5 5600 MHz (by JEDEC & POR)
• Memory Overclocking: Intel XMP 3.0 supported
• Expansion Slots: 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 (chipset)
• M.2 Storage: 1x M.2 slot, PCIe 3.0 x4 / SATA mode
• SATA: 4x SATA 6Gb/s
• LAN: Realtek RTL8111H Gigabit
• Audio: Realtek ALC897 Codec, 7.1-channel

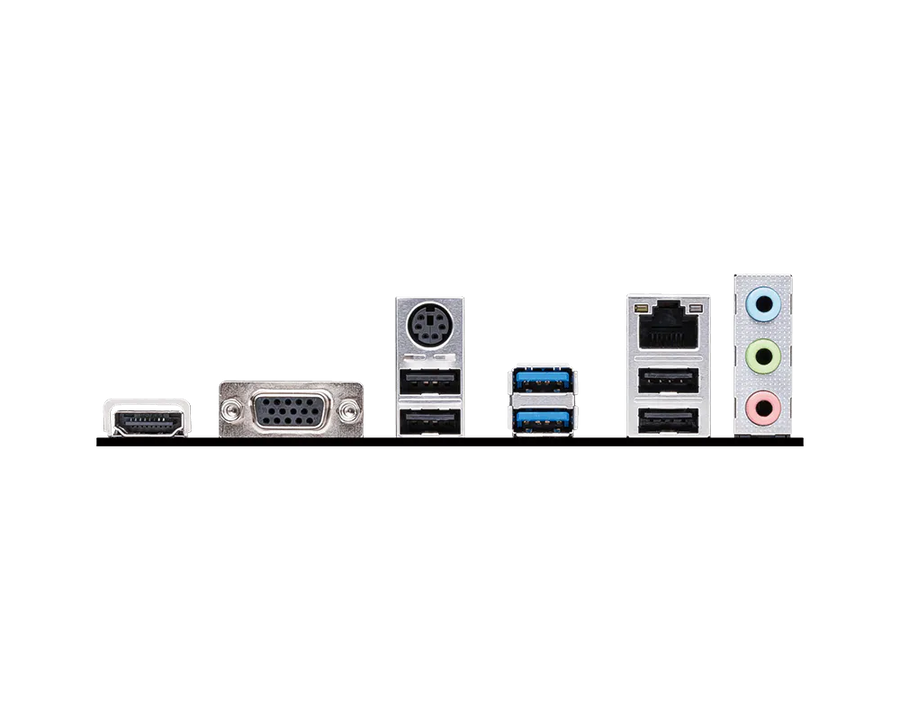

• Rear USB: 4x USB 2.0, 2x USB 5Gbps Type-A
• Video Outputs: 1x HDMI 1.4 (4K 30Hz), 1x VGA (max 2048x1536 50Hz)
• Form Factor: Micro-ATX, 200mm x 236.16mm

⚡ Key Features

• LGA1700 socket supports Intel Core 14th, 13th and 12th Gen plus Pentium Gold and Celeron, so the CPU choice stays open
• Two DDR5 slots take up to 96GB at 5600MHz — a memory ceiling that comfortably outlives a typical office or home build
• Intel XMP 3.0 support means a rated DDR5 kit runs at its advertised speed from one BIOS setting
• PCIe 4.0 x16 slot direct from the CPU gives a modern graphics card its full bandwidth
• M.2 socket runs either a PCIe 3.0 x4 NVMe SSD or a SATA M.2 drive
• Four SATA 6Gb/s ports leave room for bulk storage alongside the M.2 boot drive
• HDMI and VGA outputs cover both current monitors and legacy office displays from integrated graphics
• Realtek ALC897 7.1-channel audio handles headsets and speakers without an add-in card
• Micro-ATX at 200mm x 236.16mm drops into compact and standard cases

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: MSI
• Model: PRO H610M-E
• Condition: Brand new
• SKU: MOH-MSI-H610M-NEW-0899
