MSI B860M GAMING PLUS WIFI Motherboard

MSI B860M GAMING PLUS WIFI Motherboard

An LGA 1851 Micro-ATX board for Intel Core Ultra Series 2 processors, the B860M GAMING PLUS WIFI combines a 12+1+1+1 Duet Rail power system, a PCIe 5.0 graphics slot, triple M.2 storage, Thunderbolt 4 and Intel Killer Wi-Fi 7 with 5G LAN — a complete modern platform on a compact board. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Brand: MSI
• Model: B860M GAMING PLUS WIFI
• CPU Socket: Intel LGA 1851
• CPU Support: Intel Core Ultra processors (Series 2)
• Chipset: Intel B860
• Form Factor: Micro-ATX (243.84 mm x 243.84 mm)
• Memory: 4x DDR5 UDIMM slots, dual channel, up to 256GB
• Memory Speed: 4800-6400 MT/s (JEDEC), 6400-8800+ MT/s (OC) with Intel XMP 3.0
• Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 4.0 x16, 2x PCIe 4.0 x1
• M.2: 3x M.2 — 1x Gen5 x4 (128 Gbps, CPU), 1x Gen4 x4 (64 Gbps), 1x Gen4 x2 (32 Gbps)
• SATA: 4x SATA 6Gb/s ports
• Power Design: 12+1+1+1 Duet Rail Power System with P-PAK

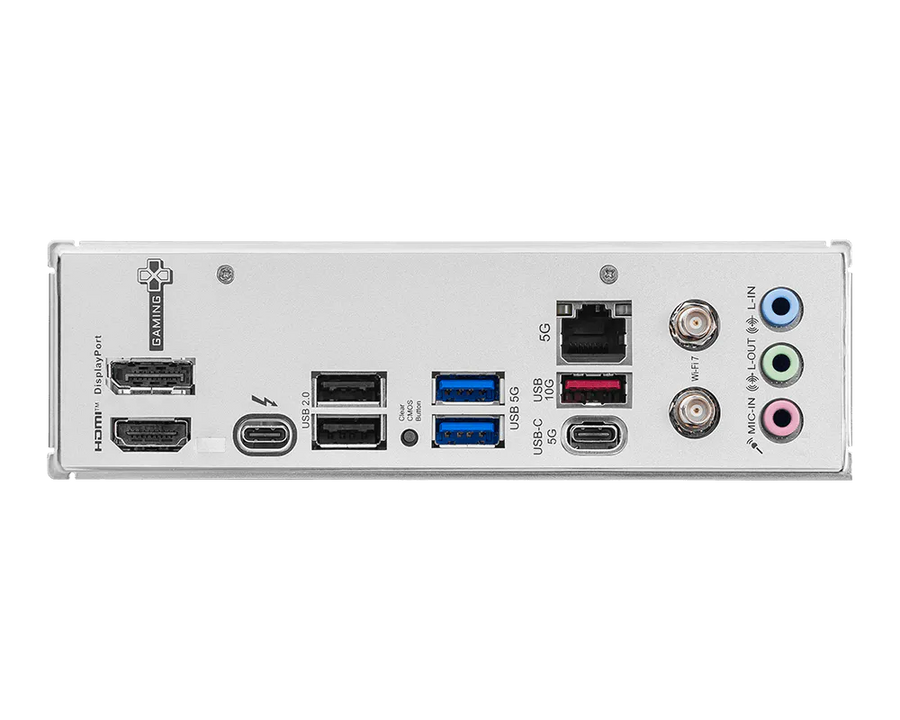

• Rear Video Output: 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 HBR2, 1x Thunderbolt 4 Type-C (4K 60Hz)
• Thunderbolt: 1x Thunderbolt 4 Type-C, 40 Gbps
• USB (total): 2x USB 10Gbps (1 Type-A + 1 Type-C), 7x USB 5Gbps (6 Type-A + 1 Type-C), 6x USB 2.0
• LAN: Intel Killer E5000B 5Gbps LAN
• Wireless: Intel Killer BE1750x Wi-Fi 7
• Bluetooth: Bluetooth 5.4
• Audio: Realtek ALC897 codec, 8-channel (7.1) High Definition Audio with Audio Boost
• Other: Rear Clear CMOS button

⚡ Key Features

• The 12+1+1+1 Duet Rail Power System with P-PAK delivers clean, steady power to Intel Core Ultra processors even under long all-core loads.
• A CPU-connected PCIe 5.0 x16 slot gives your graphics card the fastest link the platform offers.
• Three M.2 slots — one of them Gen5 x4 at 128 Gbps — mean you can run a blisteringly fast boot drive and still keep two more NVMe drives installed.
• Four DDR5 slots reach 256GB and overclock past 8800 MT/s with a single XMP 3.0 profile.
• A rear Thunderbolt 4 Type-C port carries 40 Gbps of data plus 4K 60Hz display output over one cable.
• Intel Killer E5000B 5G LAN prioritises game traffic and delivers five times Gigabit throughput.
• Intel Killer BE1750x Wi-Fi 7 with Bluetooth 5.4 keeps wireless peripherals and networking fast and low-latency.
• A rear Clear CMOS button lets you recover from a bad overclock without opening the case.
• Four SATA 6Gb/s ports and a generous USB complement keep older drives and peripherals in the build.
• Micro-ATX sizing at 243.84 mm square fits compact and standard cases alike.

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: MSI
• Model: B860M GAMING PLUS WIFI
• Condition: Brand new
• SKU: MOH-MSI-B860M-NEW-0885
