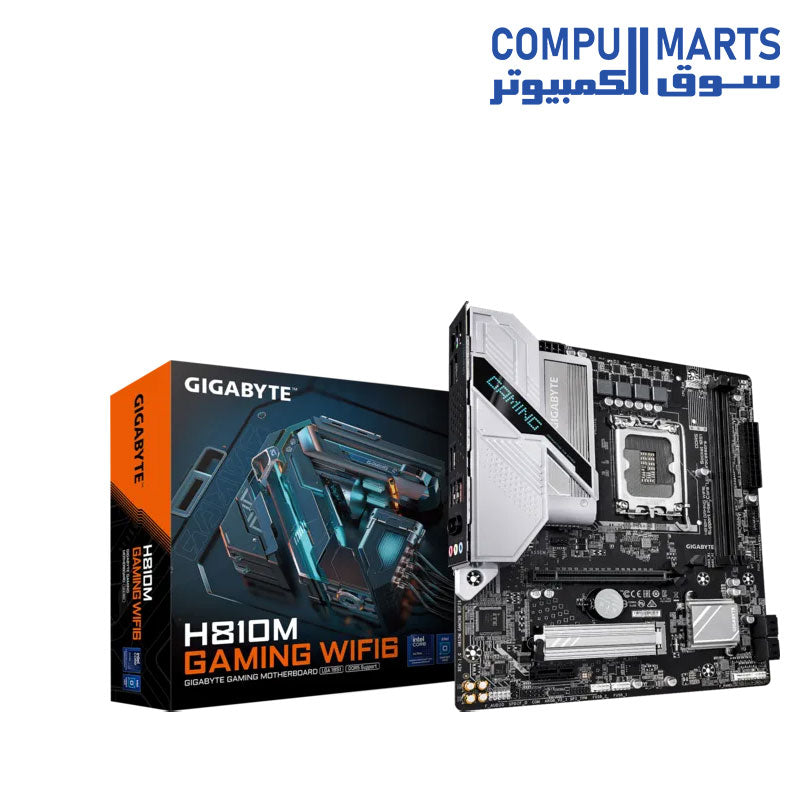

GIGABYTE H810M GAMING WIFI6 Motherboard

GIGABYTE H810M GAMING WIFI6

A compact Micro-ATX entry into Intel's Core Ultra platform, with DDR5 memory, built-in Wi-Fi 6 and 2.5GbE networking already on the board. It is the straightforward way to build a small, quiet LGA1851 system without paying for features a mainstream gaming PC never uses. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Brand: GIGABYTE
• Model: H810M GAMING WIFI6
• Chipset: Intel H810 Express
• CPU Socket: Intel LGA1851 — supports Intel Core Ultra processors
• Memory: 2 × DDR5 DIMM slots, dual channel, up to 128GB (64GB per module)
• Memory Speed: DDR5 6400 / 5600 MT/s, XMP supported; ECC and non-ECC un-buffered modules supported
• Expansion Slots: 1 × PCIe 4.0 x16 (CPU), 1 × PCIe 3.0 x1 (chipset)
• M.2 Storage: 1 × M.2 socket (Socket 3, M key, type 2280, PCIe 4.0 x4/x2)
• SATA: 4 × SATA 6Gb/s connectors
• VRM: 4 VCORE phases + 1 VCCGT phase + 2 VCCSA phases
• LAN: Realtek 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps)
• Wireless: Realtek Wi-Fi 6 RTL8851BE (2.4/5 GHz, 802.11ax 80MHz) with Bluetooth 5.3
• Audio: Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel

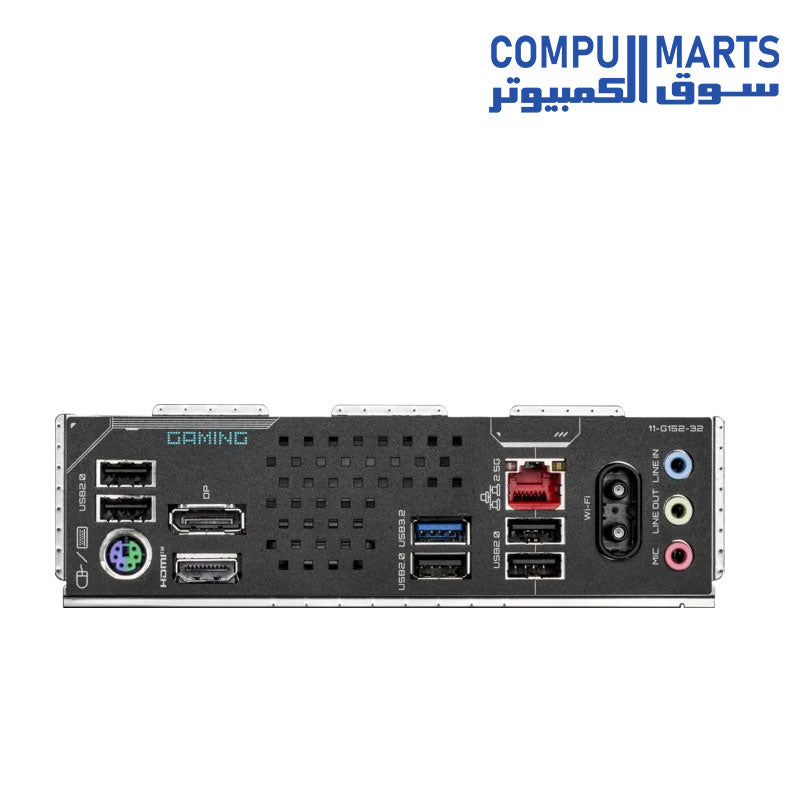

• Rear I/O: 1 × PS/2 keyboard/mouse, 1 × HDMI, 1 × DisplayPort, 1 × USB 3.2 Gen 1, 5 × USB 2.0/1.1, 1 × RJ-45, 3 × audio jacks
• Form Factor: Micro ATX, 24.4cm × 21.5cm

⚡ Key Features

• LGA1851 support for Intel Core Ultra processors puts you on Intel's current desktop platform at entry-level board cost.
• Dual DDR5 slots running at 6400 MT/s deliver the memory bandwidth modern games and content apps actually use.
• Wi-Fi 6 with Bluetooth 5.3 is already onboard, so no PCIe slot or USB port is lost to an add-in wireless card.
• Realtek 2.5GbE LAN gives wired players a low-latency, high-throughput connection out of the box.
• A PCIe 4.0 x16 CPU slot feeds a modern graphics card with plenty of bandwidth for 1080p and 1440p gaming.
• The PCIe 4.0 x4 M.2 socket runs an NVMe boot drive at full speed, with four SATA ports for bulk storage.
• HDMI and DisplayPort outputs drive two displays straight from the Core Ultra integrated graphics.
• Micro-ATX dimensions of 24.4 × 21.5cm fit small and mid-tower cases where a full ATX board will not.
• Q-Flash Plus updates the BIOS with no CPU, memory or graphics card fitted, which makes first boot painless.
• EZ-Debug LED zones point straight at the failing component instead of leaving you to guess.

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: GIGABYTE
• Model: H810M GAMING WIFI6
• Condition: Brand new
• SKU: MOH-GIGABY-H810M-NEW-1660
