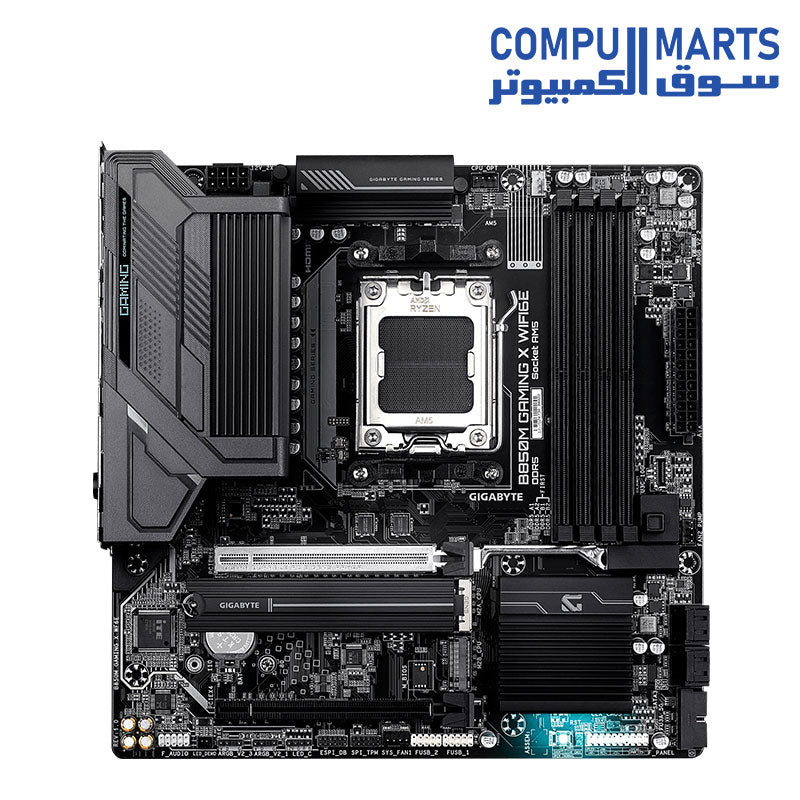

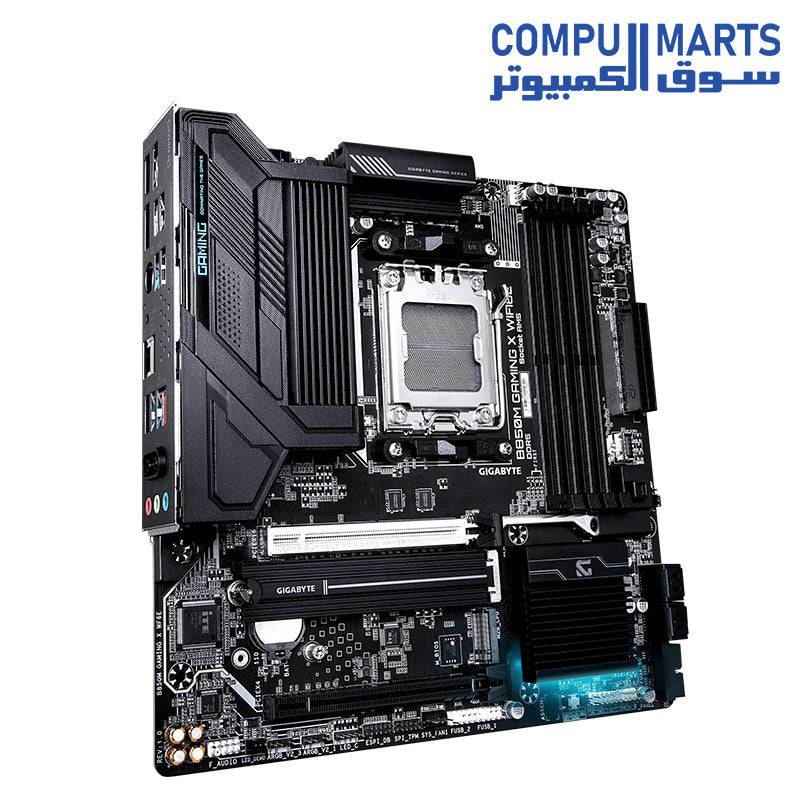

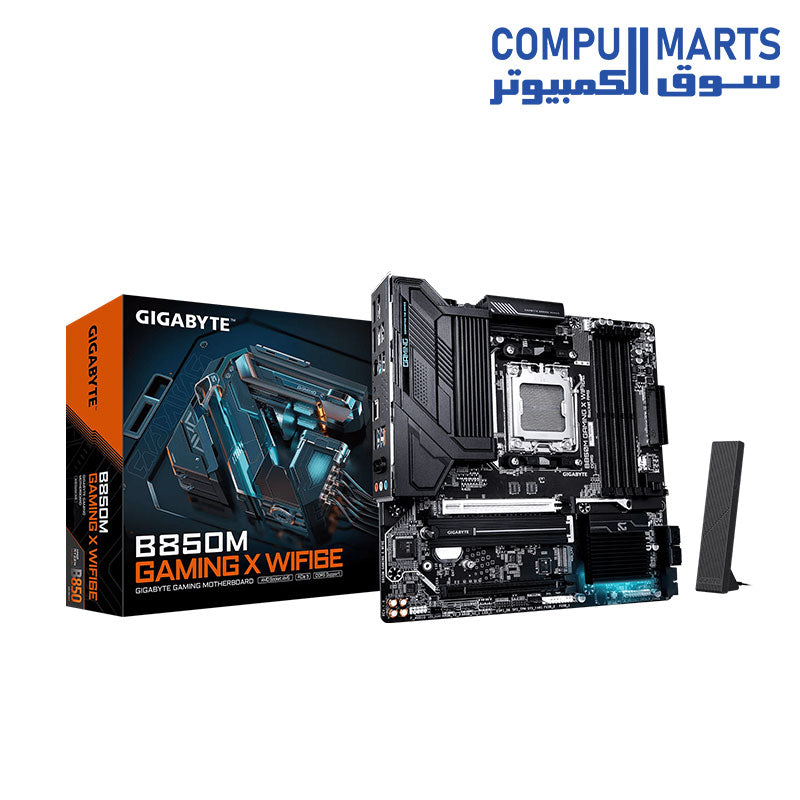

GIGABYTE B850M GAMING X WIFI6E Motherboard

GIGABYTE B850M GAMING X WIFI6E Motherboard

Built for AMD Ryzen 9000, 8000 and 7000 Series processors on Socket AM5, the B850M GAMING X WIFI6E packs a 10+2+2 twin digital VRM, a PCIe 5.0 graphics slot and two CPU-attached M.2 sockets into a compact Micro-ATX footprint. Wi-Fi 6E and 2.5GbE networking keep your connection quick whether you play wired or wireless. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Socket: AMD Socket AM5
• Chipset: AMD B850
• CPU support: AMD Ryzen 9000 Series / Ryzen 8000 Series / Ryzen 7000 Series processors
• Memory: 4 x DDR5 DIMM slots, dual channel, up to 256 GB (64 GB per module)
• Memory speed: 4400 MT/s up to 8200 MT/s (O.C.), AMD EXPO and XMP support
• VRM: 10+2+2 twin digital VRM design with 60A DrMOS, 5+5 phases parallel power design
• Expansion slots: 1 x PCIe 5.0 x16 (CPU, Ryzen 9000/7000; PCIe 4.0 with Ryzen 8000), 1 x PCIe 3.0 x16 slot running at x4 (chipset)
• Storage: 2 x M.2 Socket 3 (CPU-attached), 4 x SATA 6Gb/s
• RAID: RAID 0/1/5/10 for NVMe, RAID 0/1/10 for SATA
• Display outputs: 1 x HDMI 2.1 (4096x2160@60 Hz), 2 x DisplayPort 1.4 (3840x2160@144 Hz), triple-display capable

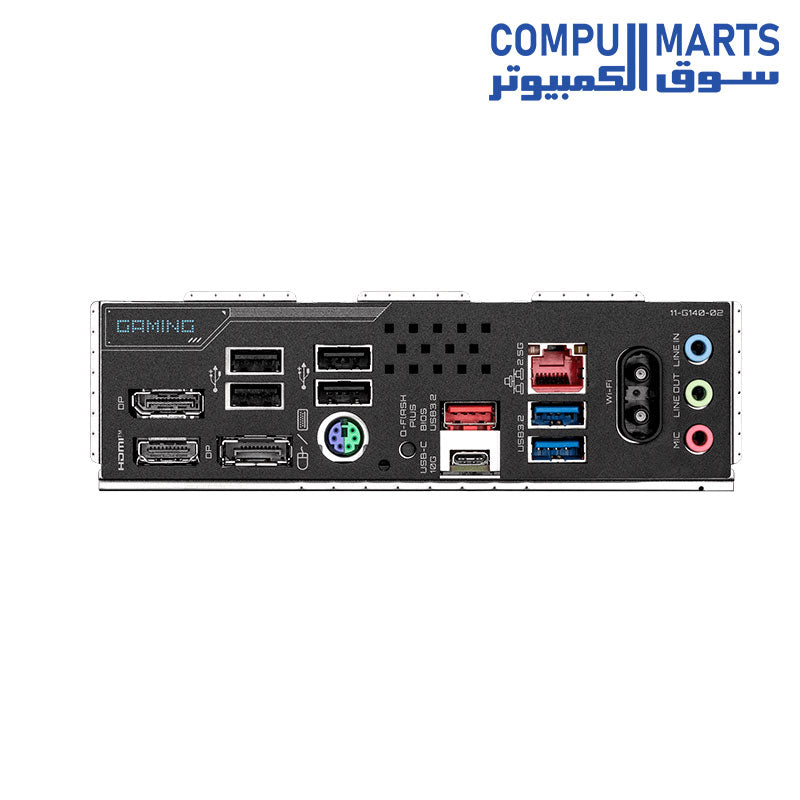

• Rear USB: 1 x USB Type-C Gen 2, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1, 4 x USB 2.0/1.1
• LAN: Realtek 2.5GbE (2.5 Gbps / 1 Gbps / 100 Mbps)
• Wireless: Realtek Wi-Fi 6E RTL8852CE, 802.11ax 160MHz, 2.4/5/6 GHz, Bluetooth 5.3
• Audio: Realtek Audio CODEC, 2/4/5.1/7.1-channel High Definition Audio
• Power connectors: 1 x 24-pin ATX, 1 x 8-pin ATX 12V
• Form factor: Micro ATX, 24.4cm x 24.4cm

⚡ Key Features

• Drops straight into an AM5 build with support for Ryzen 9000, 8000 and 7000 Series processors, so you can start on a current chip and upgrade later.
• A 10+2+2 twin digital VRM with 60A DrMOS keeps voltage steady under sustained all-core loads, which is what stops a high-core-count Ryzen from throttling mid-session.
• Four DDR5 slots take up to 256 GB and run EXPO or XMP kits as fast as 8200 MT/s (O.C.) with one click in BIOS.
• The CPU-attached PCIe 5.0 x16 slot gives next-generation graphics cards full bandwidth without stealing lanes from storage.
• Two M.2 sockets wire directly to the CPU, so your boot drive and your game library both run on low-latency NVMe rather than sharing a chipset link.
• Realtek Wi-Fi 6E adds the clean 6 GHz band alongside 2.4 and 5 GHz, and Bluetooth 5.3 handles controllers and headsets.
• Realtek 2.5GbE wired networking is two and a half times the headroom of standard gigabit for downloads and low-ping play.
• Four SATA 6Gb/s ports plus NVMe RAID 0/1/5/10 let you mix fast NVMe with bulk drives in one system.
• Micro-ATX at 24.4cm x 24.4cm fits compact and mid-tower cases while keeping four DIMM slots.

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: GIGABYTE
• Model: B850M GAMING X WIFI6E
• Condition: Brand new
• SKU: MOH-GIGABY-B850M-NEW-0919
