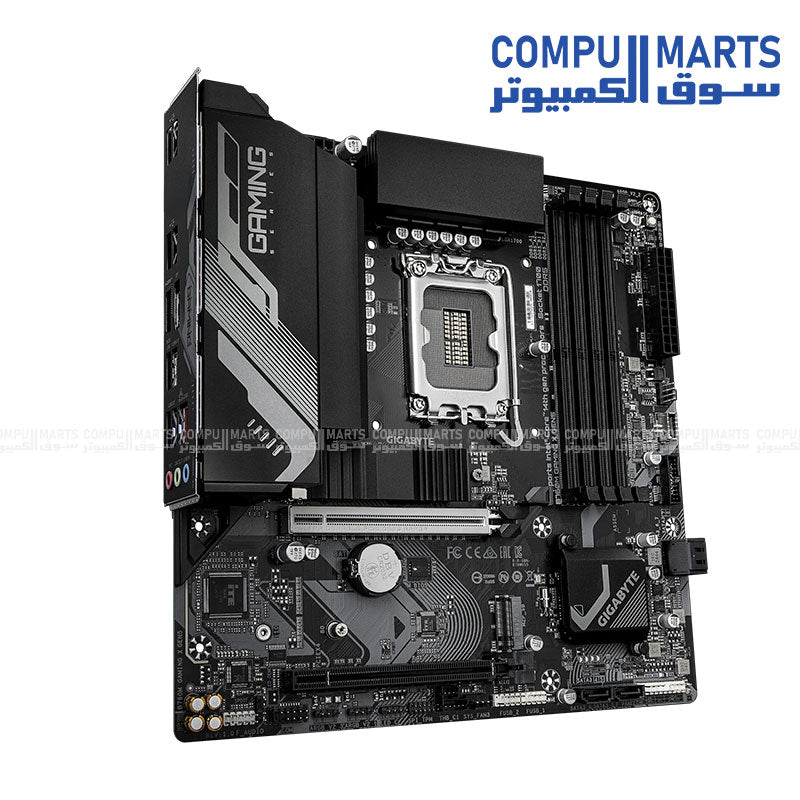

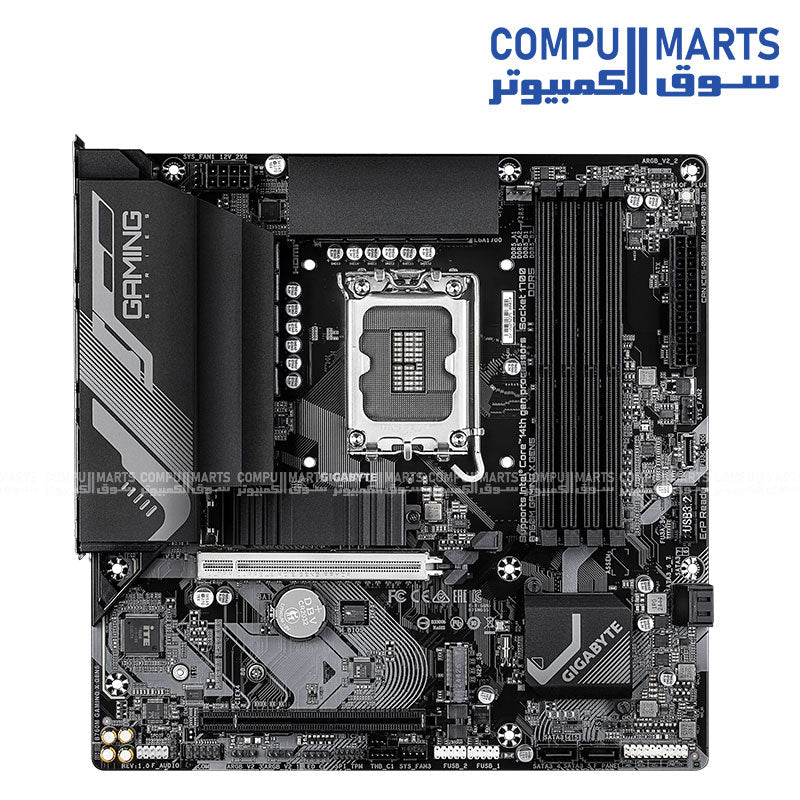

GIGABYTE B760M GAMING X GEN5 Motherboard

GIGABYTE B760M GAMING X GEN5

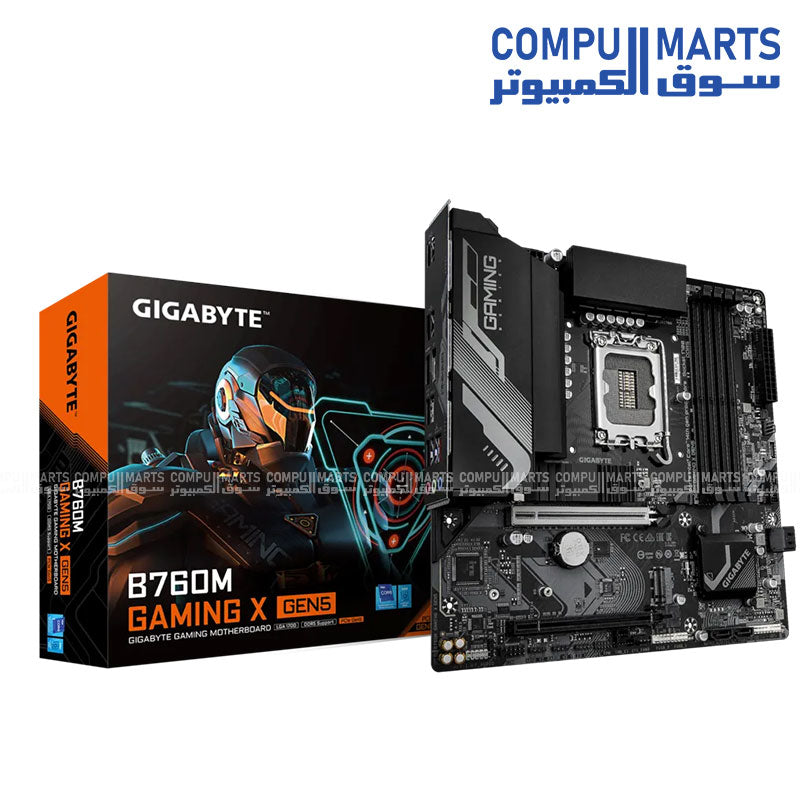

The gaming-focused Micro-ATX B760 board, with an 8+1+1 hybrid digital VRM using 60A DrMOS, a CPU-attached PCIe 5.0 x16 slot and DDR5 memory support to 7600 MT/s. It gives a 13th or 14th Gen Core gaming build proper power delivery in a small footprint. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Brand: GIGABYTE
• Model: B760M GAMING X GEN5
• Chipset: Intel B760 Express
• CPU Socket: Intel LGA1700 — supports 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron processors
• Memory: 4 × DDR5 DIMM slots, dual channel, up to 256GB (64GB per module)
• Memory Speed: DDR5 4000 MT/s up to 7600 MT/s (O.C.), XMP supported
• Expansion Slots: 1 × PCIe 5.0 x16 (CPU), 1 × PCIe 3.0 x16 slot running at x4 (chipset)
• M.2 Storage: 2 × M.2 sockets — 1 × CPU-attached type 2280 PCIe 4.0 x4/x2 and 1 × chipset-attached type 22110/2280 PCIe 4.0 x4/x2
• SATA: 4 × SATA 6Gb/s connectors with RAID 0/1/5/10 support
• VRM: 8+1+1 hybrid digital phases with 60A DrMOS
• LAN: Realtek 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps)
• Audio: Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel

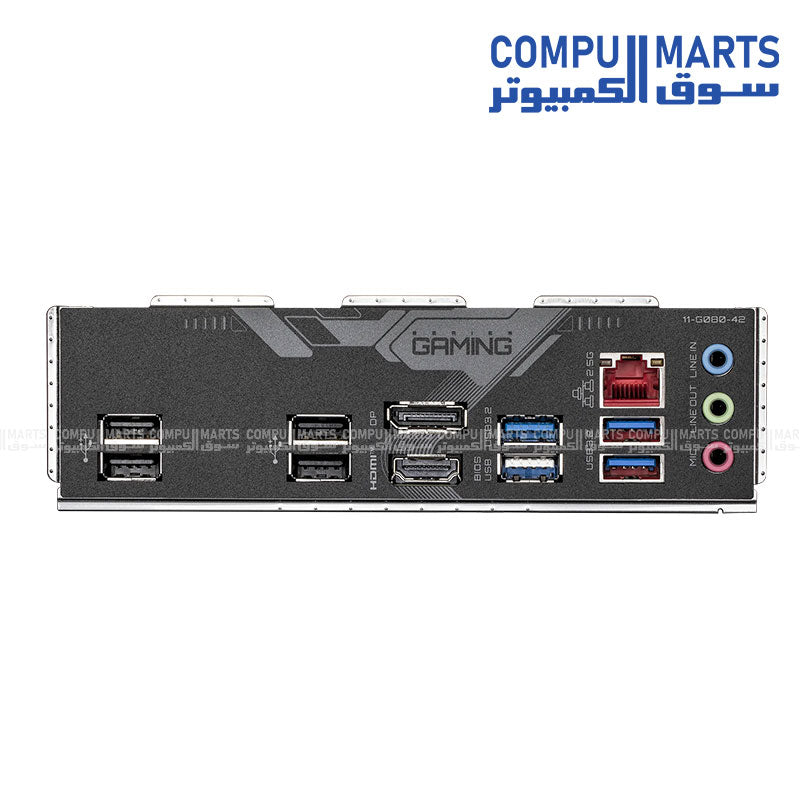

• Rear I/O: 1 × HDMI, 1 × DisplayPort, 3 × USB 3.2 Gen 1, 5 × USB 2.0/1.1, 1 × RJ-45, 3 × audio jacks
• Form Factor: Micro ATX, 24.4cm × 24.4cm

⚡ Key Features

• An 8+1+1 hybrid digital VRM with 60A DrMOS is stout power delivery for a Micro-ATX B760, and it shows when a Core i7 holds all-core boost.
• The CPU-attached PCIe 5.0 x16 slot keeps the graphics upgrade path open for years.
• Four DDR5 slots up to 7600 MT/s (O.C.) and 256GB total let a gaming rig double as a workstation.
• Two PCIe 4.0 x4 M.2 sockets, one taking long 22110 drives, cover a fast boot SSD plus a large game library.
• Realtek 2.5GbE LAN gives online play and big downloads more headroom than a standard gigabit port.
• Fins-array VRM heatsinks and an M.2 Thermal Guard hold power stages and SSDs at sensible temperatures under load.
• PCIe EZ-Latch releases a heavy graphics card with one press rather than a hidden clip behind the cooler.
• Four SATA 6Gb/s ports with RAID 0/1/5/10 keep older drives and backup arrays in play.
• HDMI and DisplayPort outputs run dual displays from Intel integrated graphics while you wait on a GPU.
• Q-Flash Plus updates the BIOS with no CPU, memory or graphics card fitted, so a newer Core CPU boots first time.
• The 24.4 × 24.4cm Micro-ATX footprint fits compact cases without giving up the four-DIMM layout.

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: GIGABYTE
• Model: B760M GAMING X GEN5
• Condition: Brand new
• SKU: MOH-GIGABY-B760M-NEW-0915
