GIGABYTE B760M DS3H GEN5 Motherboard

GIGABYTE B760M DS3H GEN5

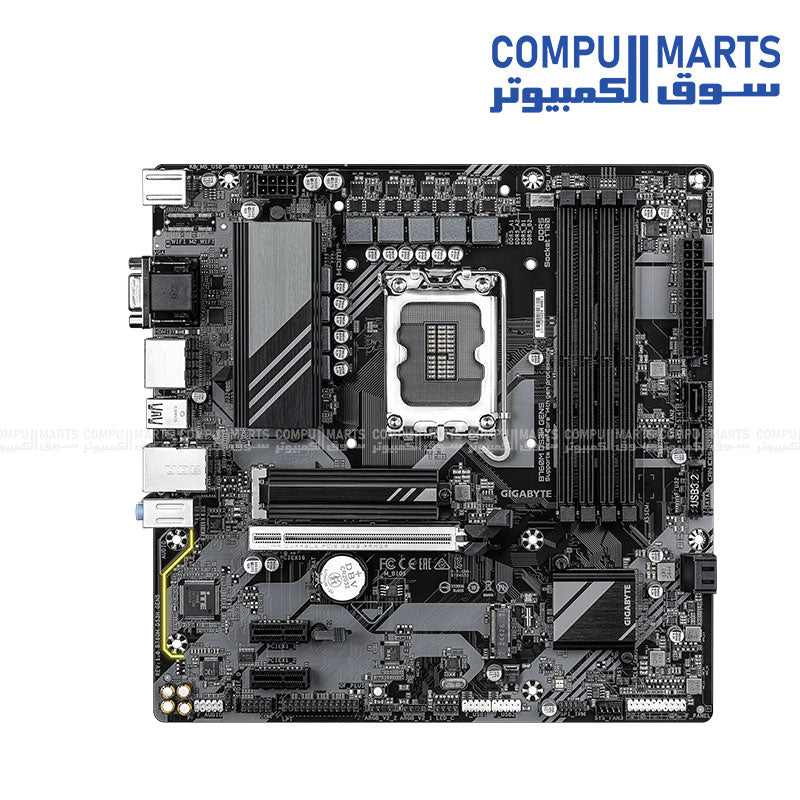

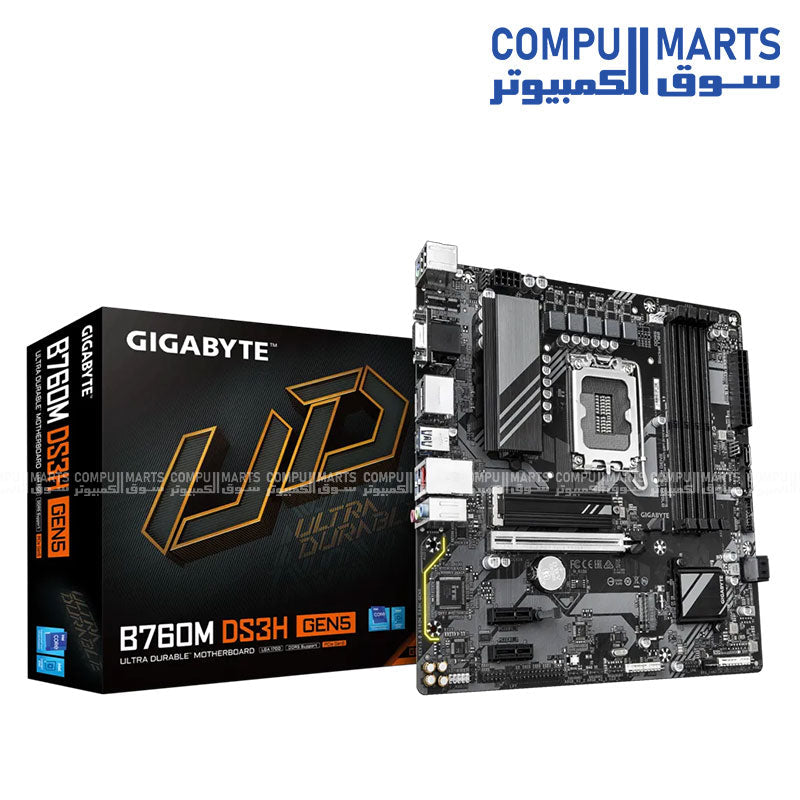

A Micro-ATX LGA1700 board that keeps the important parts intact: a CPU-attached PCIe 5.0 x16 slot, four DDR5 slots reaching 7600 MT/s, 2.5GbE networking and a rear USB Type-C port. It is a clean, no-nonsense base for a 12th to 14th Gen Core build. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Brand: GIGABYTE
• Model: B760M DS3H GEN5
• Chipset: Intel B760 Express
• CPU Socket: Intel LGA1700 — supports 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron processors
• Memory: 4 × DDR5 DIMM slots, dual channel, up to 256GB (64GB per module)
• Memory Speed: DDR5 4400 MT/s up to 7600 MT/s (O.C.), XMP supported
• Expansion Slots: 1 × PCIe 5.0 x16 (CPU), 2 × PCIe 3.0 x1 (chipset)
• M.2 Storage: 2 × M.2 sockets — 1 × CPU-attached PCIe 4.0 x4/x2 and 1 × chipset-attached PCIe 4.0 x4/x2
• SATA: 4 × SATA 6Gb/s connectors with RAID 0/1/5/10 support
• VRM: 6+2+1 hybrid phase VRM on a 6-layer PCIe 5.0-ready PCB
• LAN: Realtek 2.5GbE LAN (2.5 Gbps / 1 Gbps / 100 Mbps)
• Audio: Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel

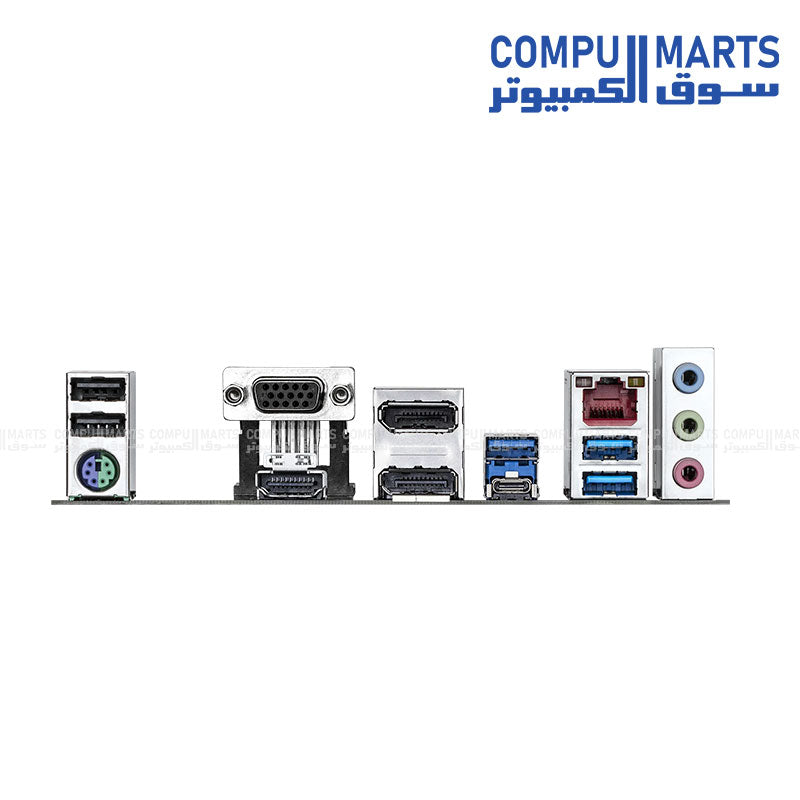

• Rear I/O: 1 × PS/2 keyboard/mouse, 1 × D-Sub, 1 × HDMI, 2 × DisplayPort, 1 × USB Type-C with USB 3.2 Gen 2 support, 3 × USB 3.2 Gen 1, 2 × USB 2.0/1.1, 1 × RJ-45, 3 × audio jacks
• Form Factor: Micro ATX, 24.4cm × 24.4cm

⚡ Key Features

• A CPU-attached PCIe 5.0 x16 slot means a next-generation graphics card is not held back by the board.
• Four DDR5 DIMM slots reaching 7600 MT/s (O.C.) and 256GB total are unusual on a Micro-ATX board at this level.
• Two PCIe 4.0 x4 M.2 sockets run an NVMe boot drive and a game library at full Gen4 speed.
• A 6+2+1 hybrid VRM on a 6-layer PCB delivers steady power to 13th and 14th Gen Core processors.
• The rear USB 3.2 Gen 2 Type-C port gives 10Gb/s to external SSDs and modern peripherals without an adapter.
• Realtek 2.5GbE LAN gives the wired connection headroom well beyond a standard gigabit port.
• Four video outputs — D-Sub, HDMI and two DisplayPorts — make this an easy fit for multi-monitor and office reuse.
• Four SATA 6Gb/s ports with RAID 0/1/5/10 keep older drives and backups useful alongside NVMe.
• The 24.4 × 24.4cm Micro-ATX footprint drops into compact and mid-tower cases alike.
• Q-Flash Plus updates the BIOS with no CPU, memory or graphics card fitted, so a newer Core CPU boots first time.

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: GIGABYTE
• Model: B760M DS3H GEN5
• Condition: Brand new
• SKU: MOH-GIGABY-B760M-NEW-0916
