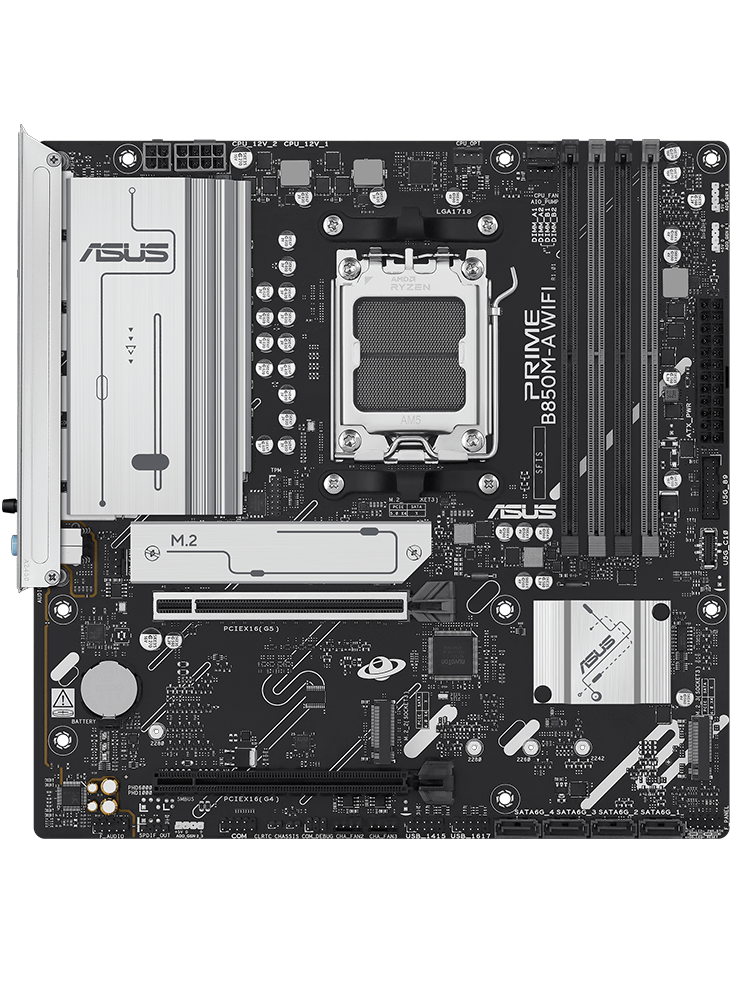

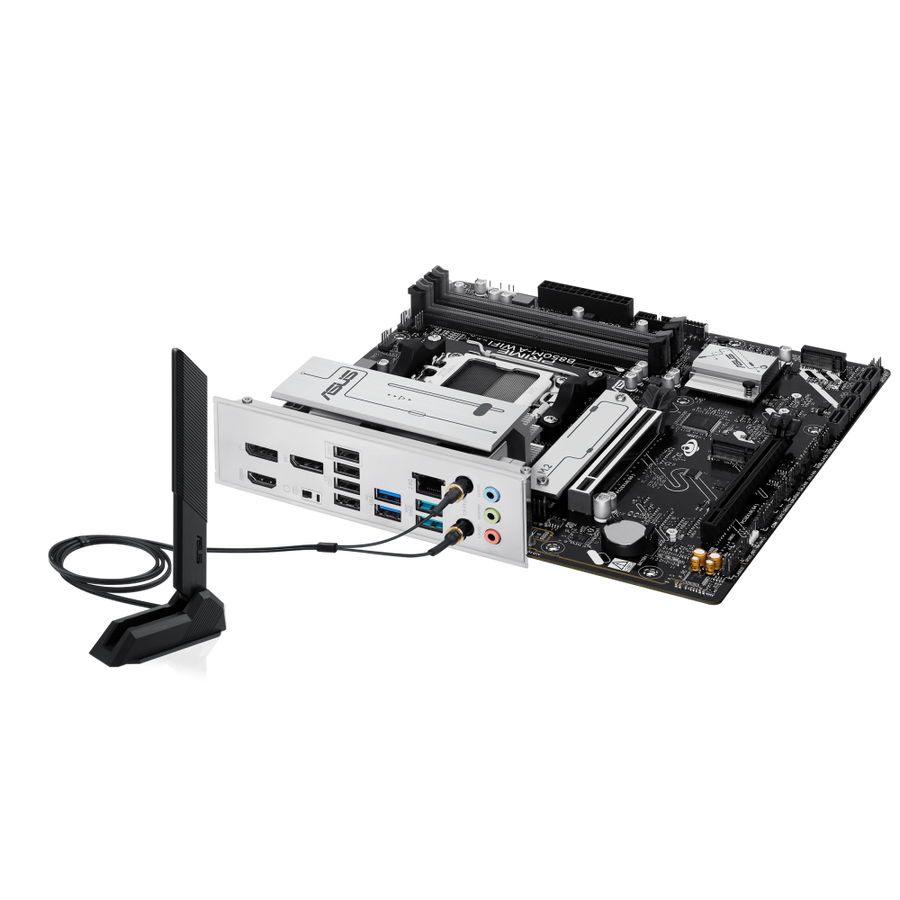

ASUS PRIME B850M-A WIFI AMD B850 Micro-ATX Motherboard

ASUS PRIME B850M-A WIFI AMD B850 Micro-ATX Motherboard

A compact AM5 board that does not cut corners, offering PCIe 5.0 graphics and storage, three M.2 sockets, Wi-Fi 6E and a front USB Type-C connector on a micro-ATX layout. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Socket: AMD Socket AM5
• CPU support: AMD Ryzen 9000, 8000 and 7000 Series desktop processors, up to 170W TDP
• Chipset: AMD B850
• Memory: 4 x DIMM, DDR5 ECC and non-ECC un-buffered, up to 256GB, dual channel, up to 8000+ MT/s (OC), AMD EXPO and ASUS AEMP
• Graphics slot: 1 x PCIe 5.0 x16 with Ryzen 9000/7000 (PCIe 4.0 x16 in x8/x4 mode with Ryzen 8000)
• Additional slot: 1 x PCIe 4.0 x16 (x1 mode) from the chipset
• M.2 storage: 3 x M.2 — M.2_1 PCIe 5.0 x4 (Ryzen 9000/7000), M.2_2 PCIe 4.0 x4/x2, M.2_3 PCIe 4.0 x4
• SATA: 4 x SATA 6Gb/s
• LAN: 1 x Realtek 2.5Gb Ethernet
• Wireless: Wi-Fi 6E 2x2 (802.11ax) 2.4/5/6GHz, Bluetooth v5.3
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC, 24-bit/192 kHz
• Rear USB: 2 x USB 10Gbps Type-A, 2 x USB 5Gbps Type-A, 4 x USB 2.0 Type-A
• Rear video outputs: 2 x DisplayPort, 1 x HDMI
• Front panel connectors: 1 x USB 5Gbps Type-C connector, 1 x USB 5Gbps header, 2 x USB 2.0 headers
• Other rear I/O: 1 x RJ45 LAN, 3 x audio jacks, 1 x BIOS FlashBack button
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Form factor: micro-ATX, 24.4 cm x 24.4 cm (9.6 in x 9.6 in)

⚡ Key Features

• Socket AM5 with the AMD B850 chipset takes Ryzen 9000, 8000 and 7000 Series processors up to 170W in a compact micro-ATX board.
• Four DDR5 slots reach 256GB and 8000+ MT/s overclocked, with AMD EXPO and ASUS AEMP profiles for effortless memory tuning.
• PCIe 5.0 x16 graphics support on Ryzen 9000 and 7000 processors keeps bandwidth ready for future graphics cards.
• Three M.2 sockets, with the primary slot at PCIe 5.0 x4, let you run a next-generation SSD plus two more NVMe drives.
• Four SATA 6Gb/s ports remain available for archive drives and existing SSDs.
• Wi-Fi 6E 2x2 with Bluetooth 5.3 opens up the clean 6GHz band, while Realtek 2.5Gb Ethernet handles wired play.
• A front-panel USB 5Gbps Type-C connector brings a modern reversible port to the case front.
• Two DisplayPort outputs and HDMI support a multi-monitor desk straight from a Ryzen processor with integrated graphics.
• BIOS FlashBack updates firmware without a CPU or memory fitted, which makes a new-generation processor drop-in far simpler.
• ECC and non-ECC un-buffered DDR5 support suits both gaming rigs and light workstation duty.

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: ASUS
• Model: PRIME B850M-A WIFI
• Condition: Brand new
• SKU: MOH-ASUS-B850M-NEW-0912
