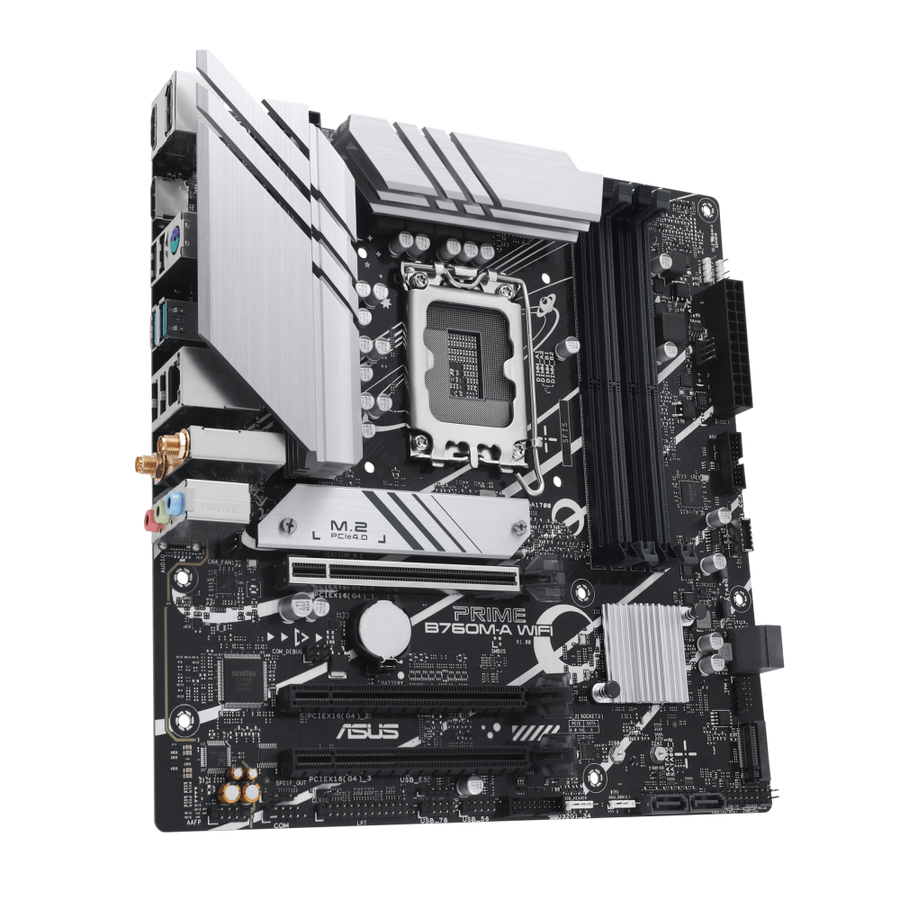

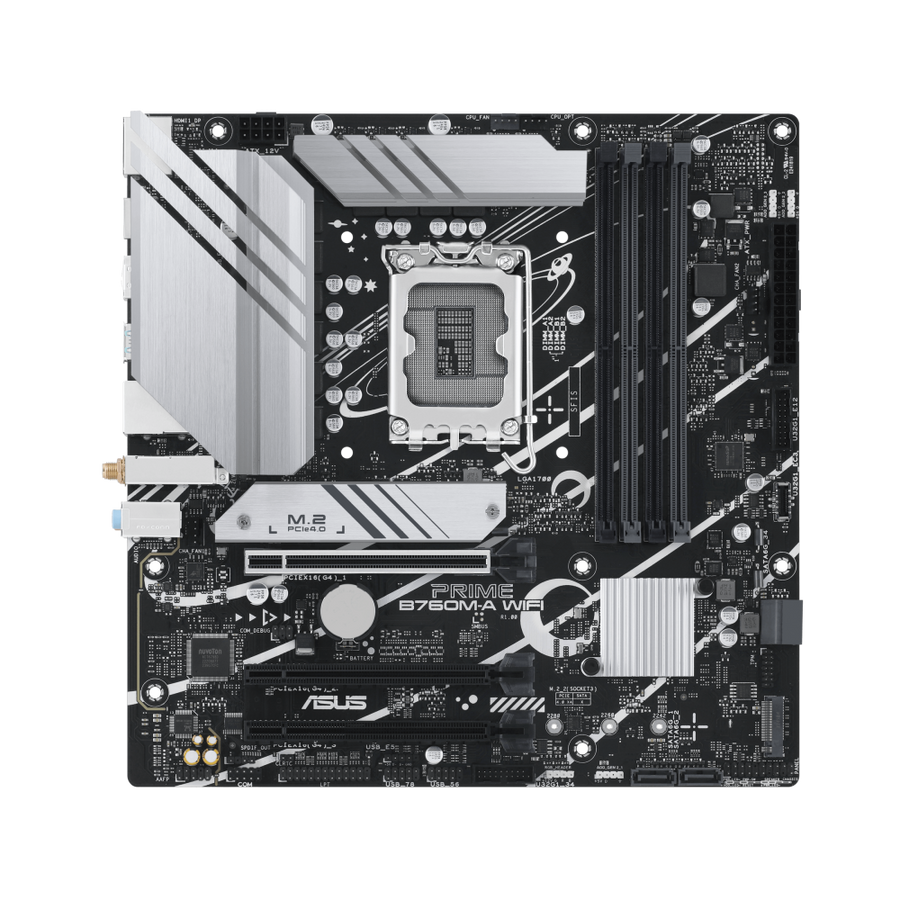

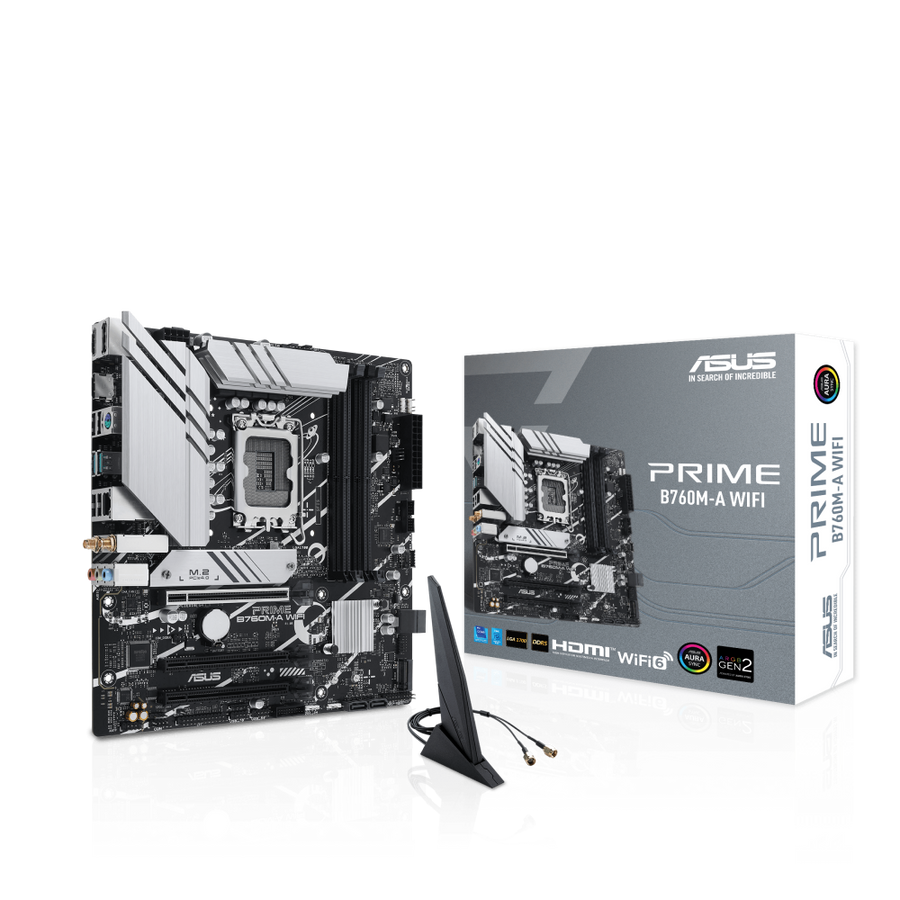

ASUS PRIME B760M-A WIFI Intel B760 Micro-ATX Motherboard

ASUS PRIME B760M-A WIFI Intel B760 Micro-ATX Motherboard

A well-rounded DDR5 micro-ATX board for a 12th to 14th Gen Intel build, with dual PCIe 4.0 M.2 slots, Wi-Fi 6, 2.5Gb Ethernet and three display outputs. Supplied brand new and sealed in its original manufacturer packaging.

📋 Specifications

• Socket: Intel Socket LGA1700
• CPU support: Intel Core 14th and 13th Gen, Intel Core 12th Gen, Pentium Gold and Celeron processors; Intel Turbo Boost Max 3.0
• Chipset: Intel B760
• Memory: 4 x DIMM, DDR5, up to 192GB, dual channel, 4800 MHz to 7200+ MHz (OC), Intel XMP support
• Expansion slots: 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x16 (x1 mode)
• M.2 storage: 2 x M.2 (2242/2260/2280), both PCIe 4.0 x4
• SATA: 4 x SATA 6Gb/s
• LAN: 1 x Realtek 2.5Gb Ethernet
• Wireless: Wi-Fi 6 (802.11 a/b/g/n/ac/ax), Bluetooth v5.2
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• Rear USB: 2 x USB 3.2 Gen 2 Type-A, 4 x USB 2.0 Type-A
• Rear video outputs: 1 x DisplayPort, 2 x HDMI
• Other rear I/O: 1 x RJ45 LAN, Wi-Fi antenna connectors, 3 x audio jacks, 1 x PS/2 combo
• BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
• Form factor: micro-ATX, 24.4 cm x 24.4 cm (9.6 in x 9.6 in)

⚡ Key Features

• LGA1700 socket and Intel B760 chipset support 14th, 13th and 12th Gen Core processors, including Turbo Boost Max 3.0 on compatible chips.
• Four DDR5 slots accept up to 192GB and run past 7200 MHz with Intel XMP, giving a genuinely future-proof memory platform.
• A CPU-connected PCIe 4.0 x16 slot drives a modern graphics card, with two further slots in x4 and x1 modes for capture or storage cards.
• Two PCIe 4.0 x4 M.2 sockets mean a fast boot drive plus a second NVMe SSD with no SATA compromise.
• Built-in Wi-Fi 6 and Bluetooth 5.2 free you from running a cable, while Realtek 2.5Gb Ethernet is there when you want the lowest latency.
• Four SATA 6Gb/s ports keep the door open for extra SSDs and hard drives.
• Two HDMI outputs and a DisplayPort let you run a multi-monitor desk directly from Intel integrated graphics.
• Realtek 7.1 Surround Sound High Definition Audio drives headsets and speaker sets without an add-in sound card.
• Standard 24.4 x 24.4 cm micro-ATX footprint fits the majority of mainstream cases.

🛡️ SQUADRIG Assurance

• Brand new and sealed in original manufacturer packaging
• Sourced from authorised local distributors
• Checked on arrival and securely packed for delivery
• Honest listings — specifications are taken from the manufacturer's own published data

🔑 Product Details

• Brand: ASUS
• Model: PRIME B760M-A WIFI
• Condition: Brand new
• SKU: MOH-ASUS-B760M-NEW-0904
